Form a habit of turning on signal lamp before lane shifting or make turning, and turn off the lamp after finishing
lane-shift or turning.

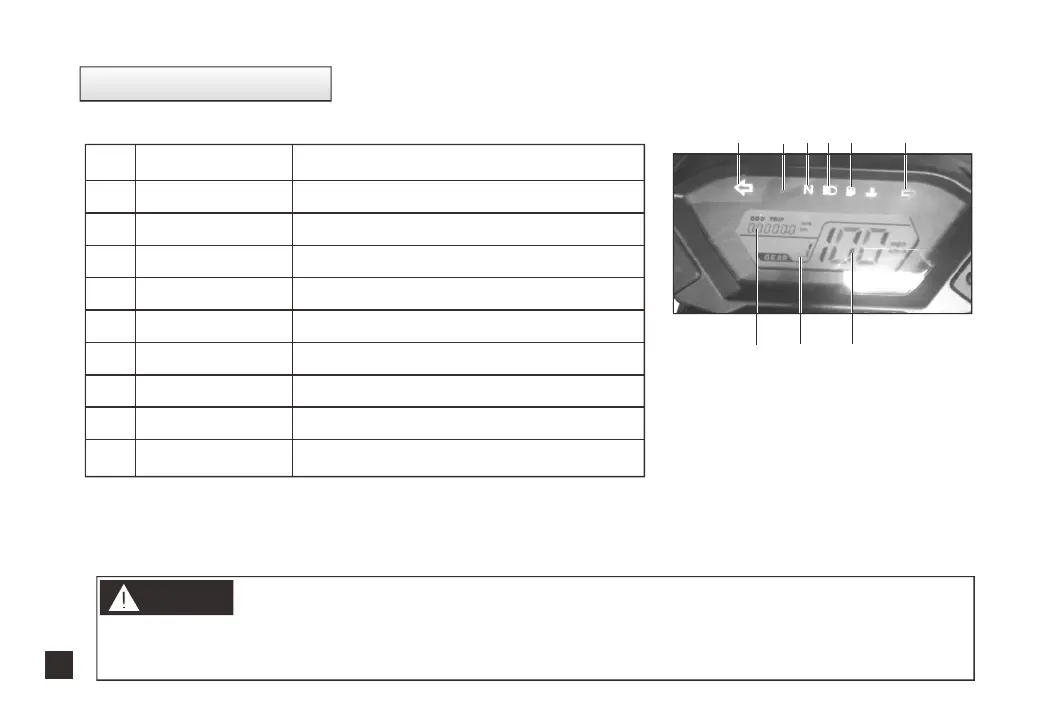

Meter indication lamp
Warning:
(3)
(4)
(7)(9) (6)(8) (5)
(1)(2)
Ref.No.
Name
Note
Speedometer
Right turning indicato
High beam indicator
Gear indicator
Neu tral gear indicator
Fuel level alarm lig ht
Odometer
When turning on high beam light, it is on
Displa y gear situatio n
It is on when at neutral gear
Displa y mileage of motorcycle
It flashes when tu rning right
It flashes when tu rning left
(1)
(2)
(3)
(4)
(6)
(7)
(8)
(5)
Display speed by km/h
Low fuel level display
Le ft turning indicator
Flashes when parts failure occurs
(9)
Failure indicator light
