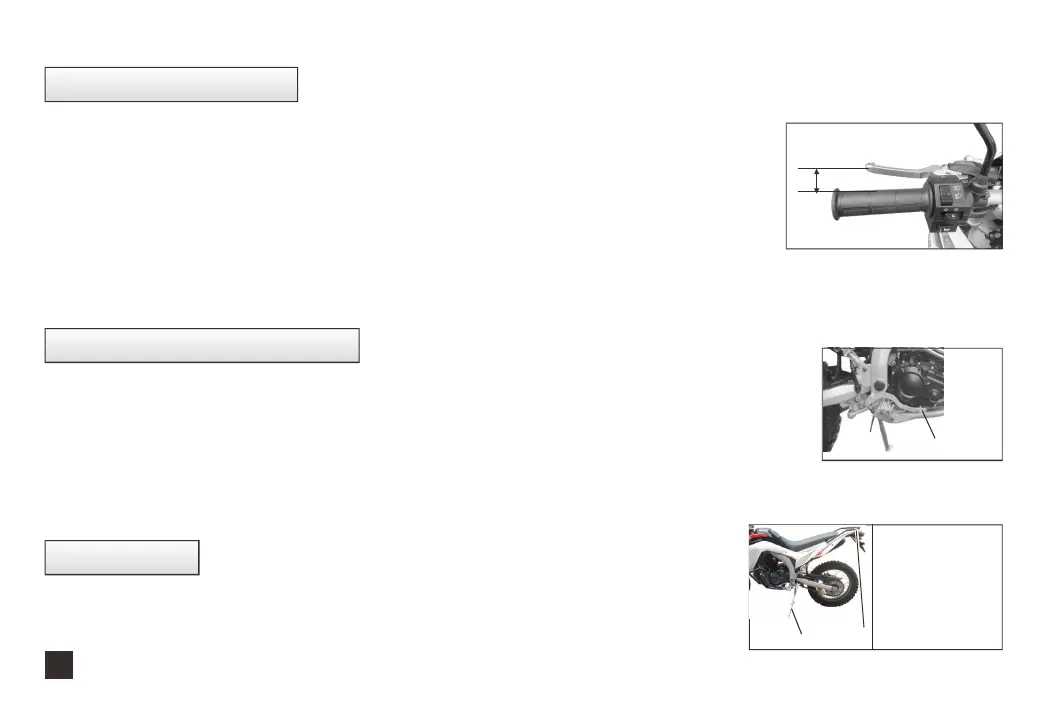

Clutch could not be adjusted before engine stopped.
Free distance of the end of clutch lever is within 10 20mm. In case adjustment is needed,
Loosen the fastening nut on clutch operation line and adjust free distance to stipulated range.
In case adjustment scope need to be extended, adjust the stud on right crankcase.
Start engine after adjustment, confirm the normal work of clutch. In case clutch skidding
or hard in gearshifting, re-adjustment is needed.
★
. ～
.
：
Well support the motorcycle by side stand when checking the disc brake
1 Free moving distance of rear brake pedal should be within 15 25mm.
2 After adjustment, lock the adjustment nut.
Caution After adjustment, when checking brake assy., brake light should be on.
Adjustment of brake pedal
Adjustment of clutch
22
This model equipped side stand only.
Parking rack
10～20mm
②Rear rack(Armresr)
①Side stand
① ②
Rear brake pedal
