1. Brake oil Brake liquid
2. Procedure for brake oil replacement
（ ）

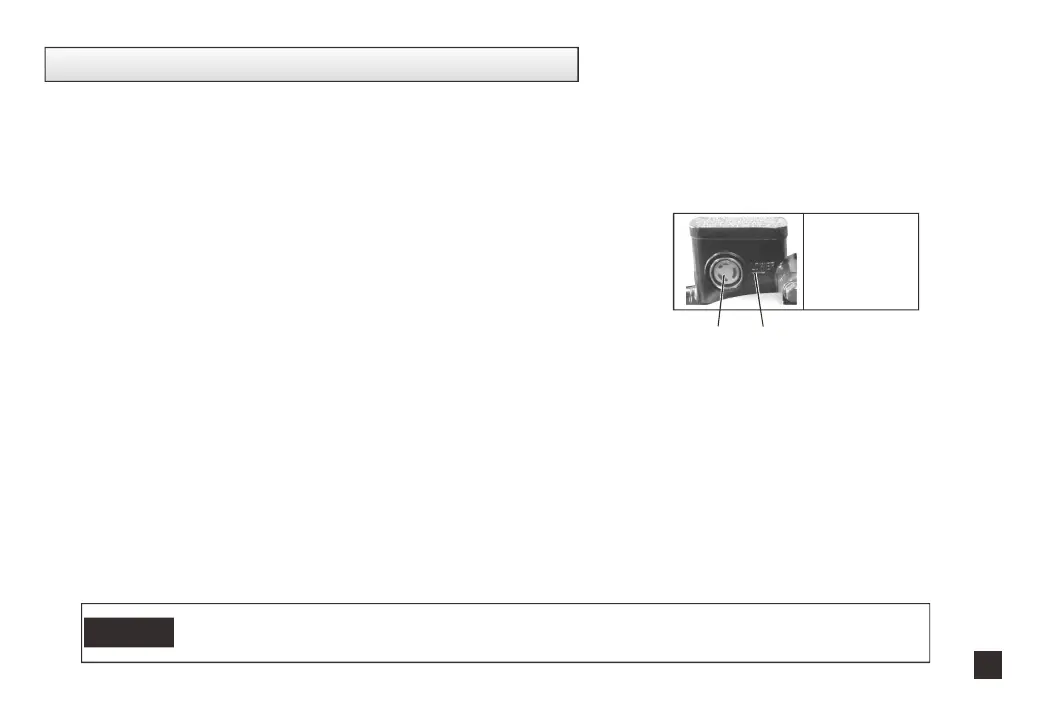

Observe if oil level is lower than scake line “LOWER” (2) through oil level view window (1). In case lower than this line
prompt oil supplement is needed higher than the scale line by 3 5mm is the best higher than the highest oil position line is
not allowed. When oil level falling down and close to scale line (2) please check the abrasion of lining plate.In case the
abrasion is within the limitation, check the leakage of brake system and then
consult local service station of our company.
Drain off old brake oil first and the steps are as below
Horizontally lay the master cylinder(no need remove from handle bar)
and then open oil pool cap and its gasket
Remove brake caliper and put deflating valve to the lowest position
Screw off deflating valve and make fluid freely flow out
When brake liquid is unable to flow out add new brake liquid by 30
50ml and let old liquid drain off
Screw up deflating valve wipe up liquid on caliper and then install caliper on motorcycle.
Then add again special used brake liquid to oil cylinder and steps are as below
Hitch a transparant tube on deflating valve (tightly matched) screw off valve by 120 degree
Add new brake liquid into master cylinder and drain off liquid from deflating valve(without moving lever) untill flowed
out liquid without bubble and then screw up the valve
Move lever repeat step untill with sound handfeel. Finally, well install oil pool
cap and its gasket, and screw up its screw
，
， ～ ，
，
，
， ：
① ，
；
② ；
③ ；
④ ， ～
， ；
⑤ ， ，
， ：
① ， ；
②
， ；
③ ， ②， .
.
Repair and maintenance of Fr.&Rr.Disc brake
23
1. Please adopt authentic D0T3 or D0T4 special used brake liquid for replacement.
2. No types of liquid mixing is allowed. 3. No using of contaminated brake liquid is allowed.
Caution:
( )2 LOWER scale line
( )1 View window
(1)
(2)
