Enter Trap Number and Channel
This is the link mode screen, from here you
can set any Channel and/or Trap Number.
The Channel the MT4300-C is currently
set to is displayed on the screen, but can
be changed to any Channel. The cursor is
blinking on the Trap Number, default is 1.
Change the Trap Number by pressing the
corresponding number on the key pad. Press
ENTER to move the cursor move to Channel.
Again, you can change the Channel by
entering it on the key pad.
1
2
Link Mode
Select Trap/Chn
Trap
Chn
Enter to Link
5

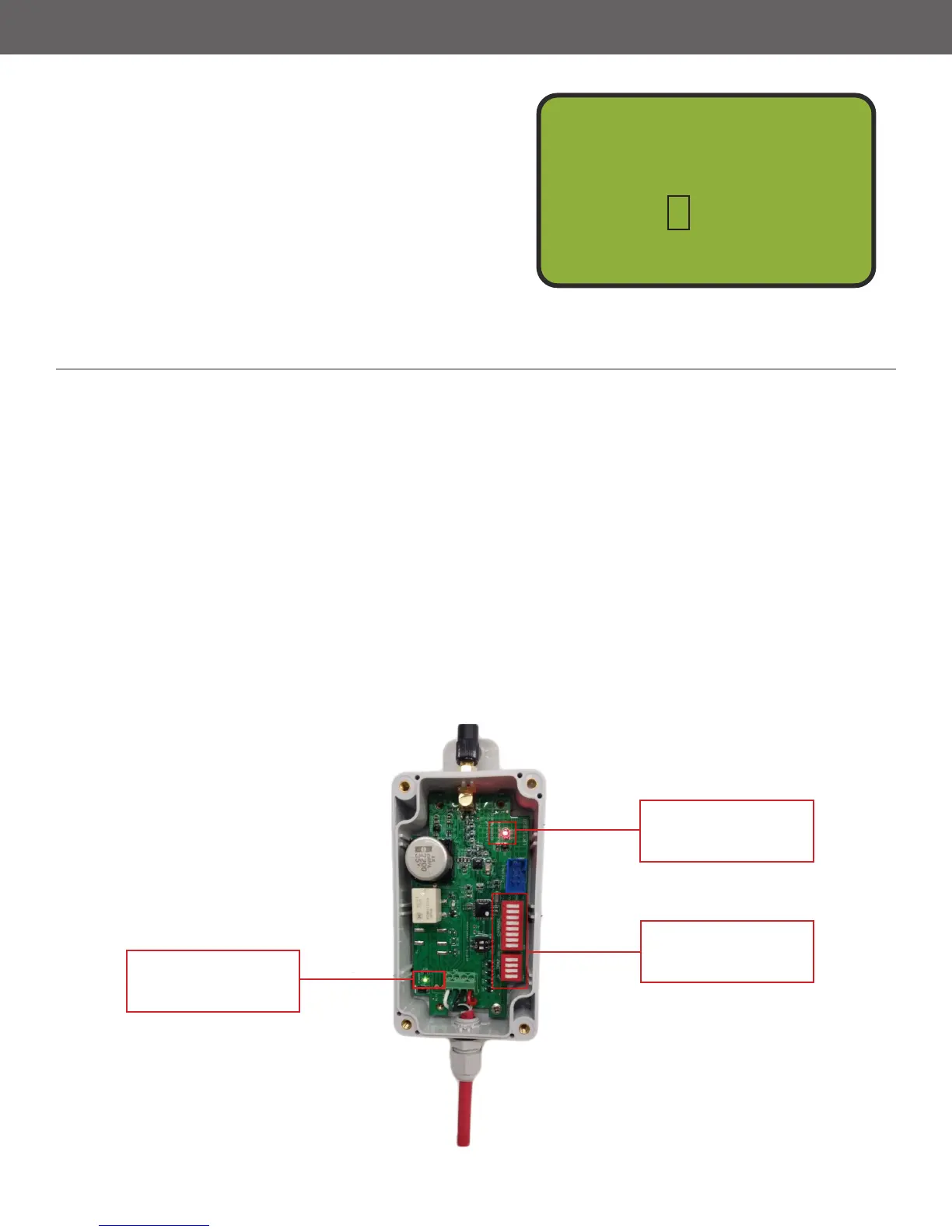

• The MT4300-C is now ready to link to the R4300 Receiver.
• Ensure all of the dip switches for channel and trap are in the OFF (Open) position.
• Replace the clear cover; don’t over tighten.
• Connect any R4300 to a trap. Power on the machine or connect power to the receiver as you
normally would.
• With power ON you will now see a RED blinking LED. The link Led will blink for 15 seconds while
the receiver remains in link mode (See below). You will be unable to re a target during this 15
seconds. This is the period when the R4300 receiver waits to see if the channel and trap number
are to be changed. After 15 seconds the previous channel and trap number are used. The default is
channel 1, trap 1.
Link LED
Will blink for 15
seconds
Set to OFF (Open)
position
Indicates power
is on
Dip Switches
Power LED
18
