www.longer3d.com info@longer3d.com
11

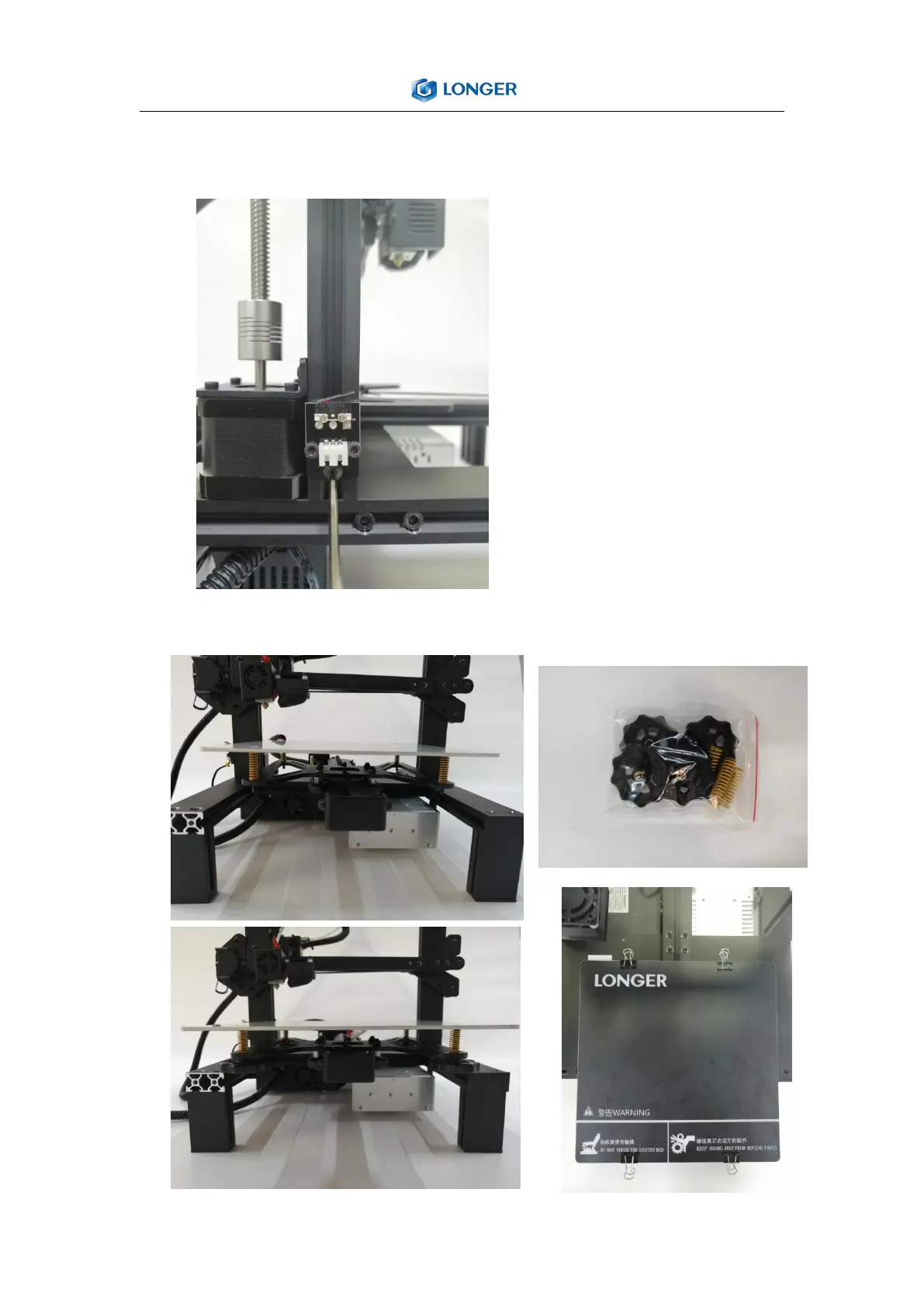

7.Install the z-axis limit switch
8.Mounting aluminum substrate
Z-axis limit opening
installation is about
12mm from the base
(this is adjustable)
