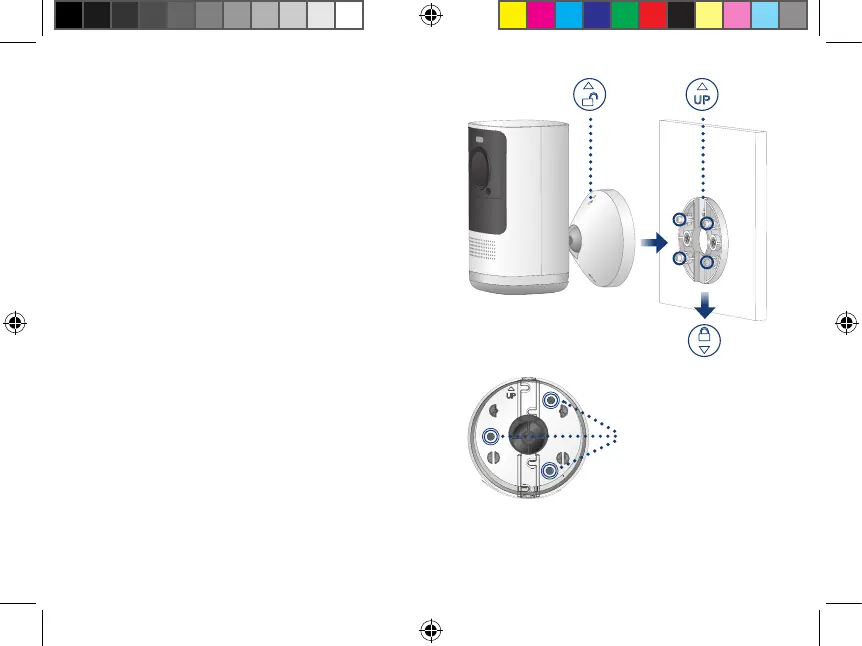

3. Align the arrows between the mounting

bracket and plate. Push the bracket in to install,

then slide down to lock in place.

You will hear a ‘click’ when the bracket is

installed.

4. Attach the camera to the mounting bracket

using the thread insert at the rear of the

camera. Rotate the camera clockwise until

attached, then tighten into place with the

adjustable nut.

5. Adjust the camera to the desired angle.

Note: If the camera is not holding in place or

difcult to adjust, slide the bracket up to detach

from the mounting plate. Tighten or loosen the

3 screws at the back of the mounting bracket to

adjust accordingly. Repeat steps 3-5 to re-install.

Back - Mounting bracket

Adjustable screws
