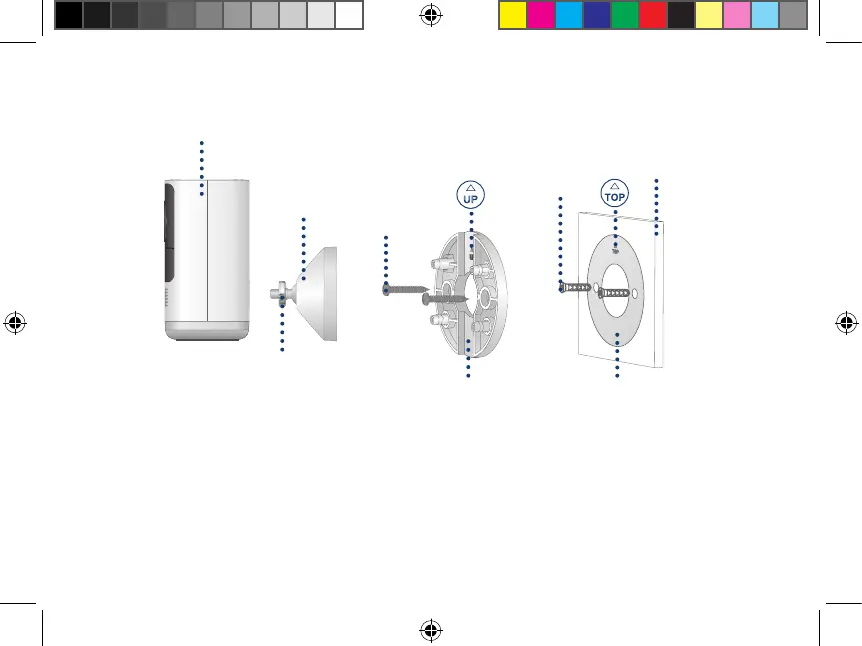

Camera Mounting
Screws
Anchors
(Optional)
Mounting
surface
Mounting template
Mounting plate
Adjustable nut
Camera
Mounting
bracket
1. Place the mounting template to the desired location.
Optional: Drill 7/32” (5.5mm) holes for the anchors.
2. Align the arrows of the mounting plate and template. Using a Philips screwdriver and the
provided screws, secure the mounting plate to the surface.
To mount the camera:
18
