Receiver overview

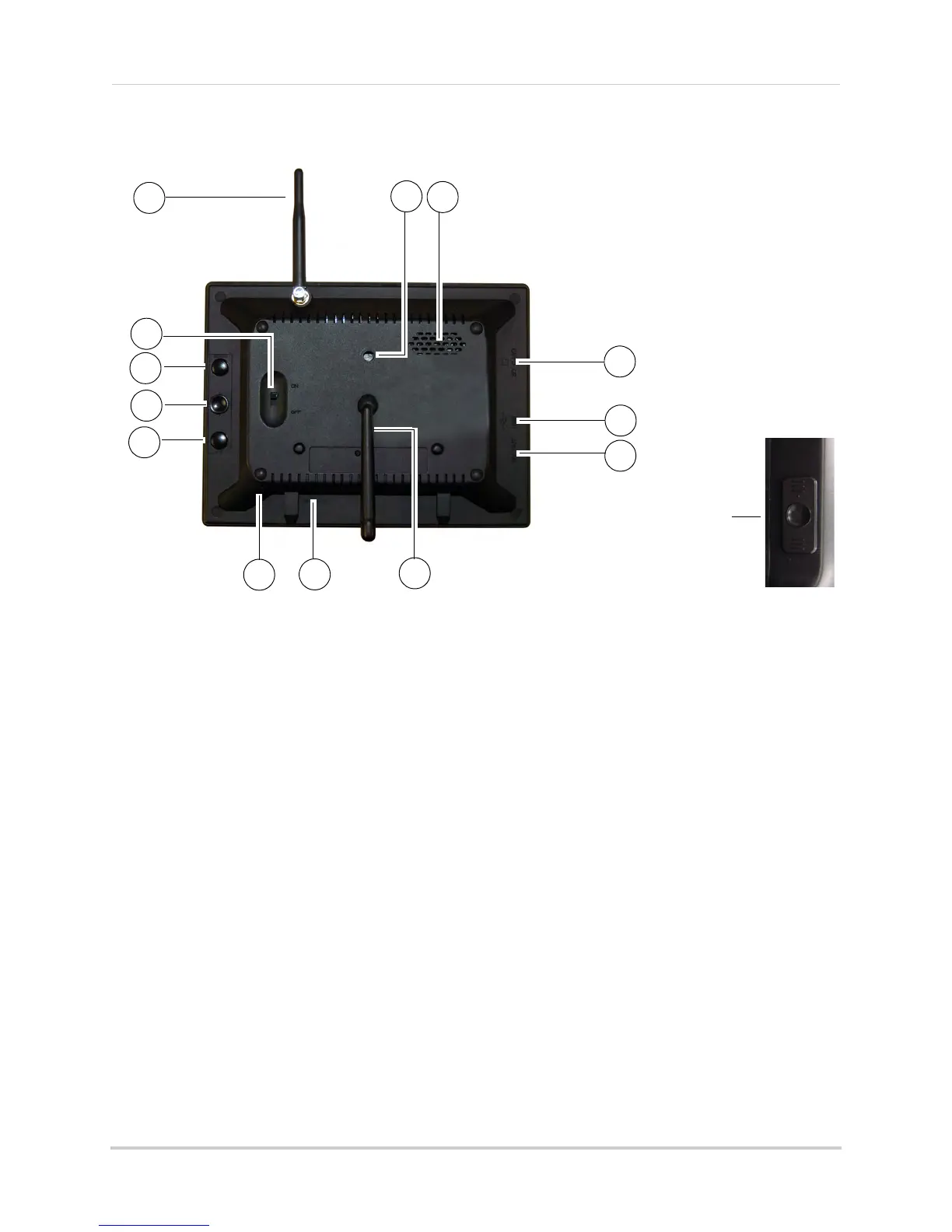

Back of receiver
1 Wireless Antenna: Position the antenna as needed for best reception.
2 Mounting Hol
e: Attach the included under-the-counter mount to mount the LCD receiver
underneath a counter/cupboard or to a wall.
3 Speak
er: Speaker for two-way audio.
4 SD Car
d Slot: Insert up to a 32GB SD card.
5 USB P
ort: Used for Skype connectivity. For details, see “Viewing your camera remotely using
Skype™” on page 38.
6 AV
OUT: Connect the Audio/Video cable to view video on an external TV or monitor (optional).
7 Rec
eiver Stand
8 Powe
r Input (DC5V): Connect the included power adapter.
9 Mi
crophone: Microphone for two-way audio.
10 AV
: Press to send the image to a connected TV or monitor (AV cable required).
NOTE: Scr
een Saver mode is not available if using AV-out.
11 Joys
tick: Deletes files during Playback mode. See “Deleting video or image files” on page 25.
12 ZOOM: Pr
ess to enable/disable Digital Zoom mode.
13 Powe
r: Slide switch to turn the LCD receiver ON/OFF*.
1
2
3
4
5
6
8
10
12
13
7
9
11
*LW2930 Series
uses a slide switch
located on the side
panel
LW2730 Series
To Next Page
