Using the system
2 Signal Indicator: The signal indicator shows the strength of the signal being received from
the camera. The number of bars in the Signal Indicator shows the strength of the signal. One,
or no bars indicates the signal is poor, and 4 bars indicate a very strong signal. The signal
indicator is not shown during quad mode.
NOTE: If the signal is l
o
w (e.g. 1 or 2 bars) adjust the antennas, or reposition the cameras
or receiver for best performance.
3 Cam
era indicator: Displays the
camera you are presently viewing.
4 File Icon: Flashes
yellow when writing data to the SD card.
5 SD Card icon: A white "SD" icon displays that an SD card is inserted in the wireless receiver. A
red icon indicates the SD card is full.
6 Ov
erwrite icon: Indic
ates Overwrite mode is on, which means the system will overwrite the
oldest recordings when the SD card is full. For details, see “Enabling/disabling overwrite” on
page 22.
7 Power Failure icon: Indic
ates a power failure has occurred on the system during recording.
You may need to manually restore recording/viewing modes on the system, and recordings up
to 10 minutes before the power failure occurred will not be saved. For more details, see
“Power failure indicator” on page 57.
8 Rec
ording Indicator: "
REC" appears when recording is in progress.
9 Time Stamp: The current date and time on the system.

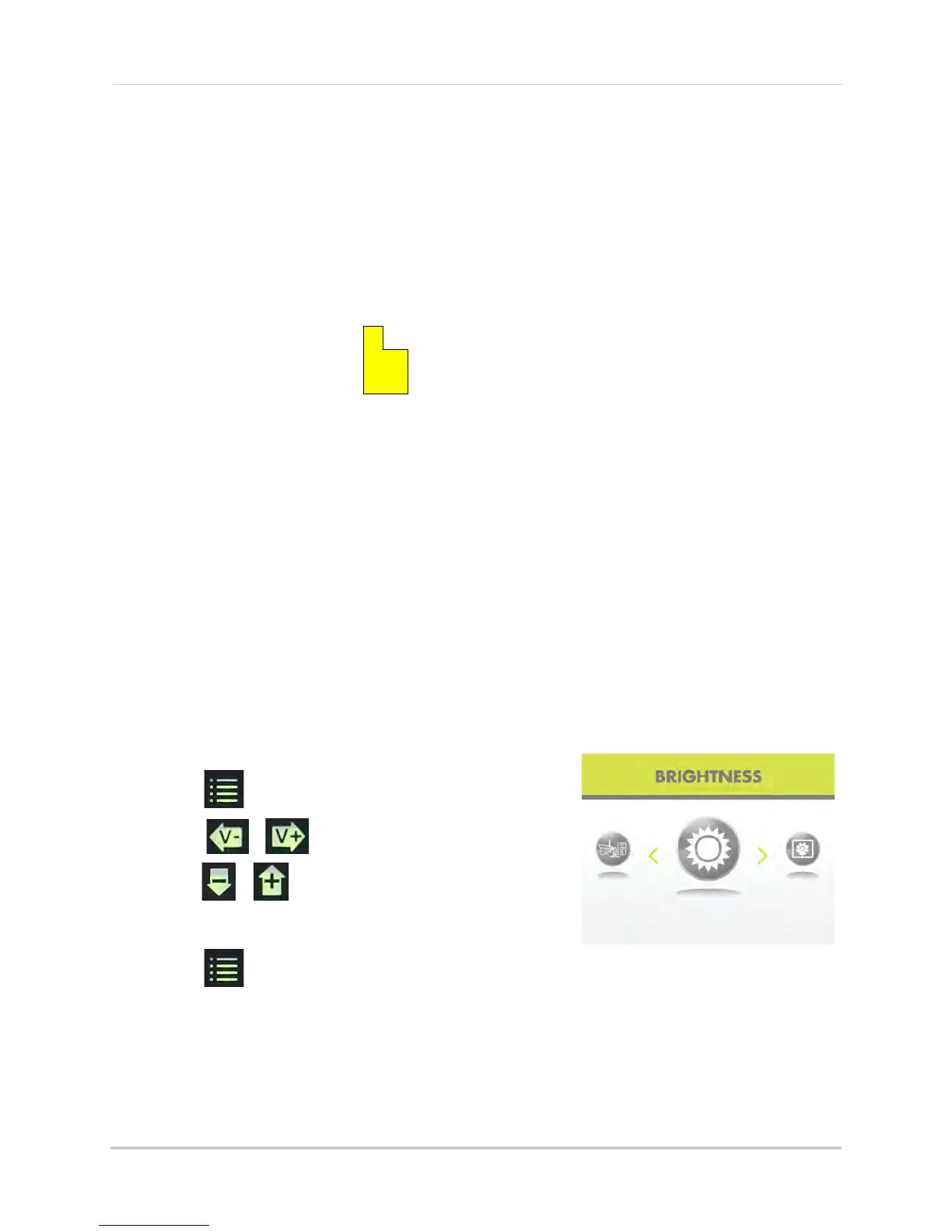

Navigating menu screens
Use the system menus to configure settings.
• Press to open the Main Menu.
• Press / to move the cursor left and right.
• Press / to move the cursor up and down.
• Press OK to open sub-menus and confirm/save menu
selections.
• Press to exit menus without saving changes.
