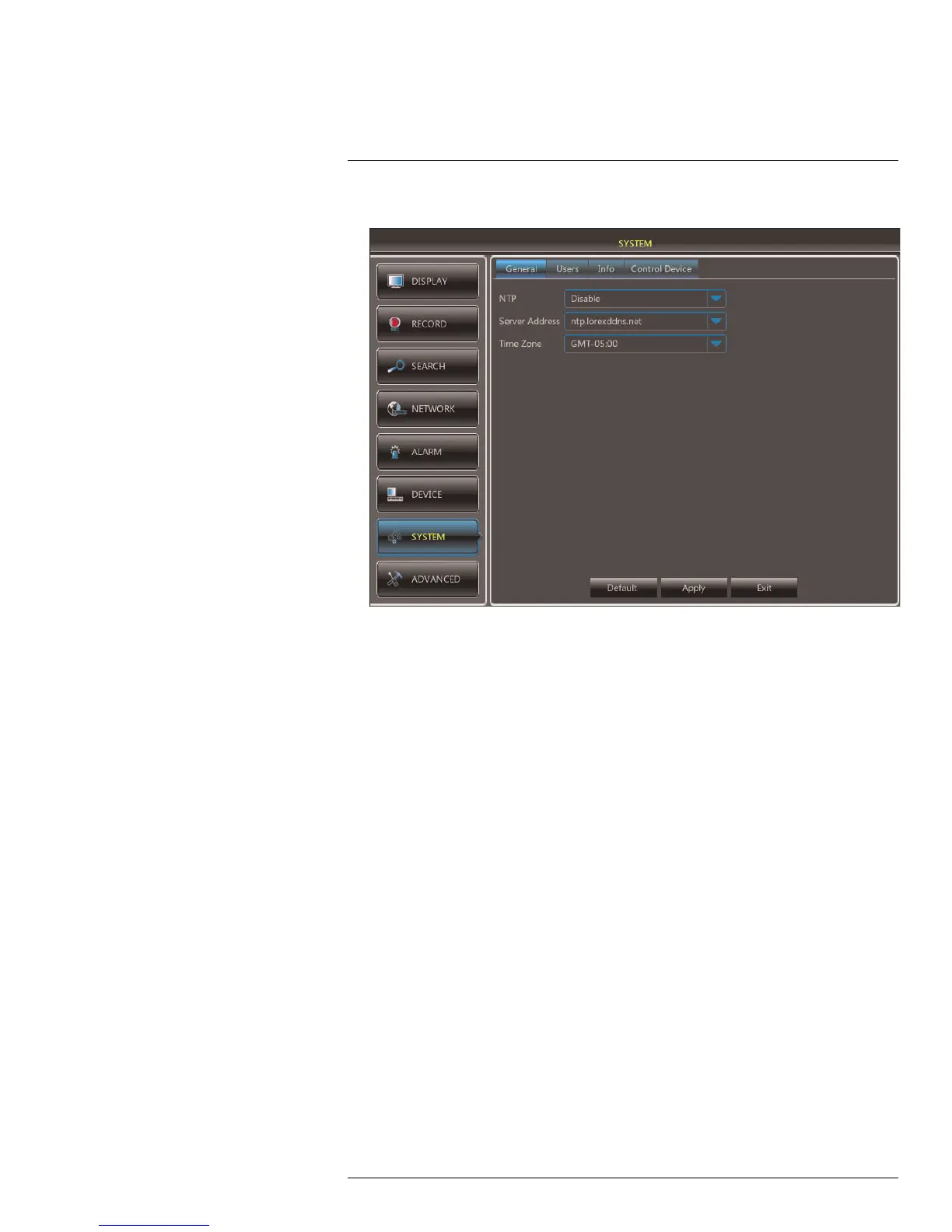

Setting
the
Date
and
Time
10
2.
Click
System
.
Beside
NTP
,
click
Setup
.
3.
Configure
the
following:
•
NTP
:
Select
Enable
.
•
Server
Address
:
Select
ntp.lore
x
ddns.net
(recommended)
as
the
time
ser
ver
or
select
another
time
ser
ver
.
•
Time
Zone
:
Select
your
region’s
time
zone.
4.
Click
Update
Now
to
connect
to
the
time
ser
ver
.
5.
Click
Apply
to
save
your
settings.
#LX400066;
r
.
1.0/26388/26388;
en-US
20
27
29
