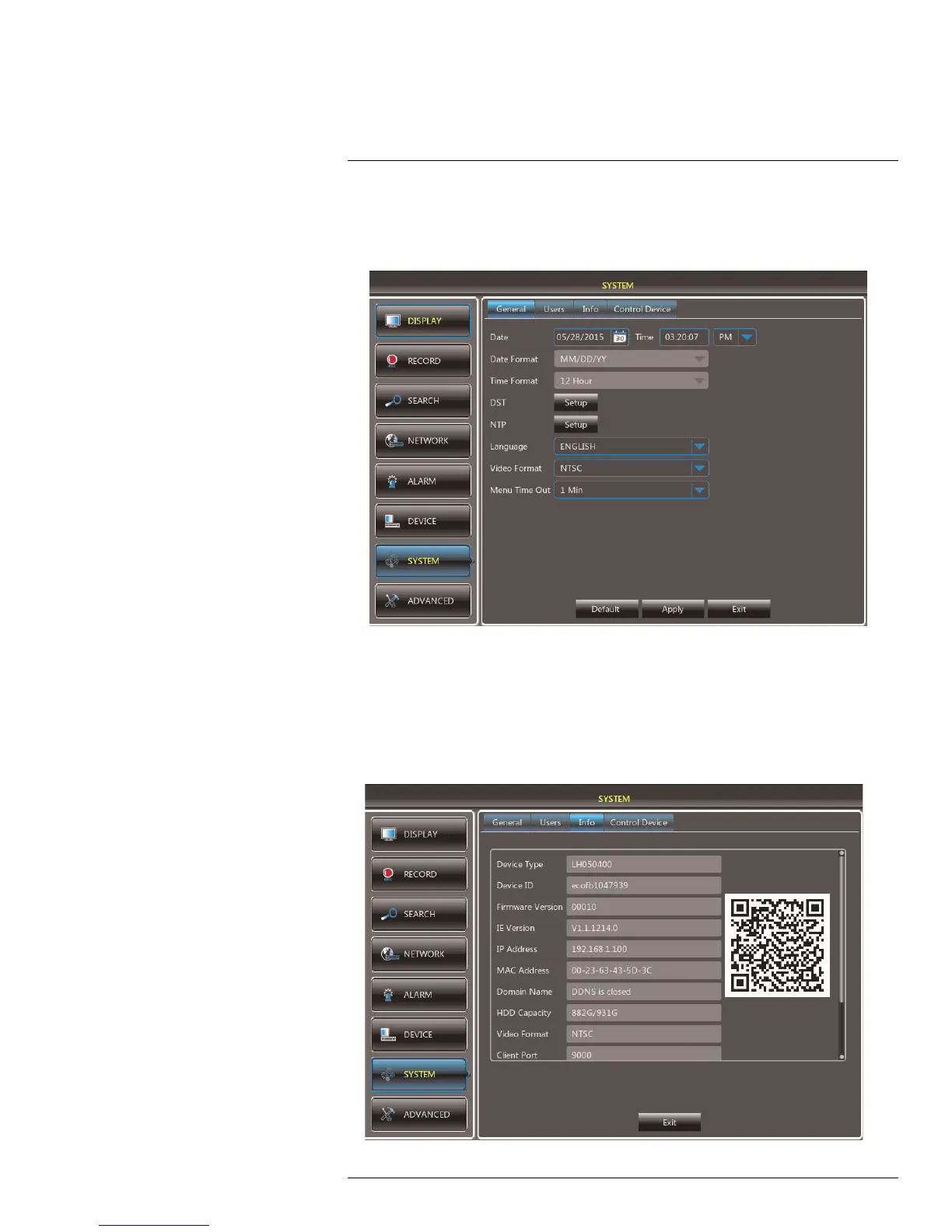

Using
the
Main
Menu
15
T
o
configure
Menu
Time
Out:
1.
Select
the
General
tab.
In
the
Menu
Time
Out
drop-down
menu,
select
the
desired
time
the
system
menu
remains
on
the
screen
during
inactivity
.
2.
Click
Apply
to
save
your
settings.
15.7.4
Adding
Users
&
Changing
the
Admin
Password
For
details
on
creating
user
accounts,
see
14.2
Adding
Users
,
page
33.
15.7.5
Viewing
System
Information
•
Click
the
Info
tab
.
#LX400066;
r
.
1.0/26388/26388;
en-US
54
61
63
