Using
the
Main
Menu
15
15.7.2

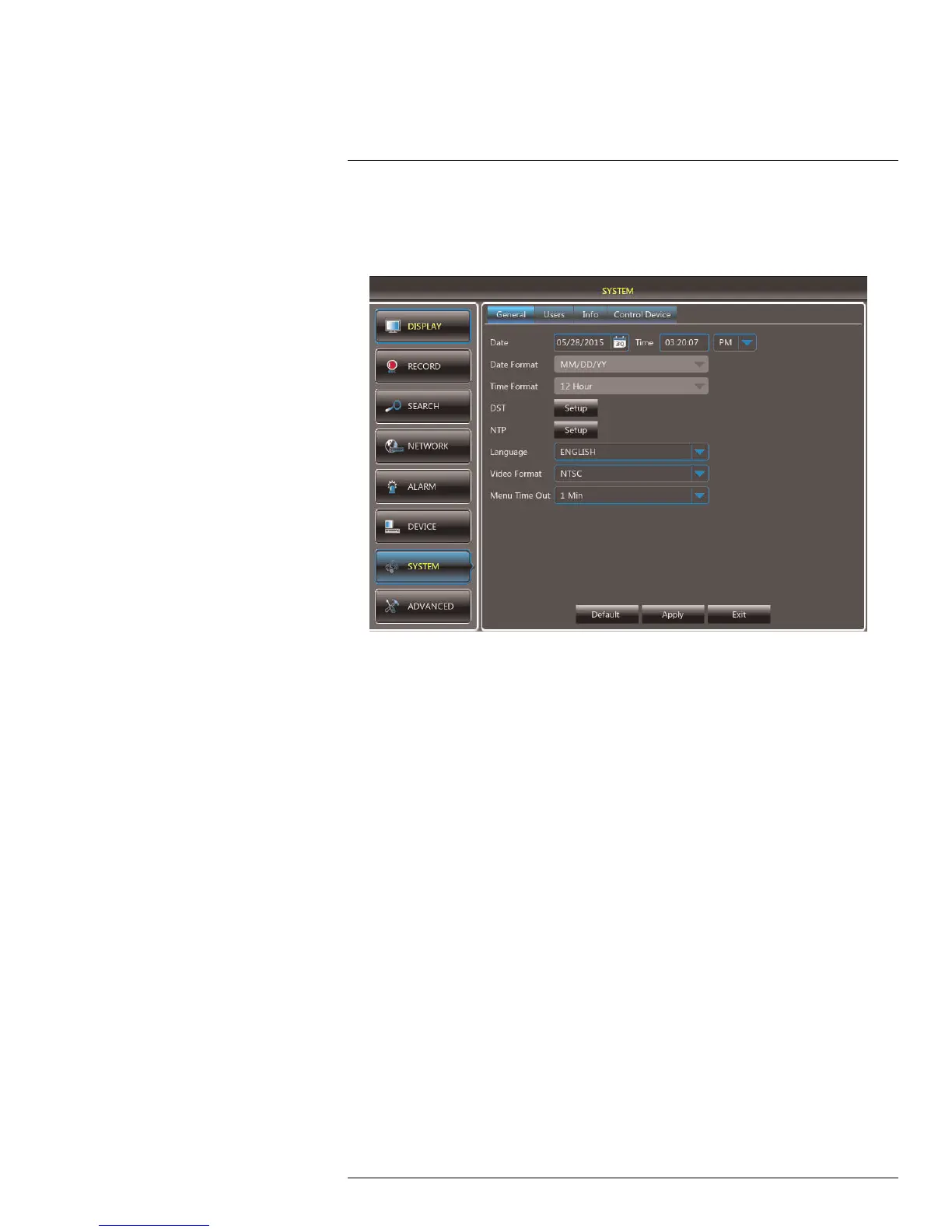

Changing
Video
Output
-
NTSC
&
P
AL
T
o
change
the
video
output:
1.
Select
the
General
tab.
2.
In
the
Video
Format
drop-down
menu,
select
NTSC
or
P
AL
.
3.
Click
Apply
to
save
your
settings.
15.7.3
Configuring
Menu
Time
Out
The
Menu
Time
Out
setting
allows
you
to
configure
how
long
the
system
menu
will
remain
on
the
screen
during
inactivity
.
#LX400066;
r
.
1.0/26388/26388;
en-US
53
60
62
