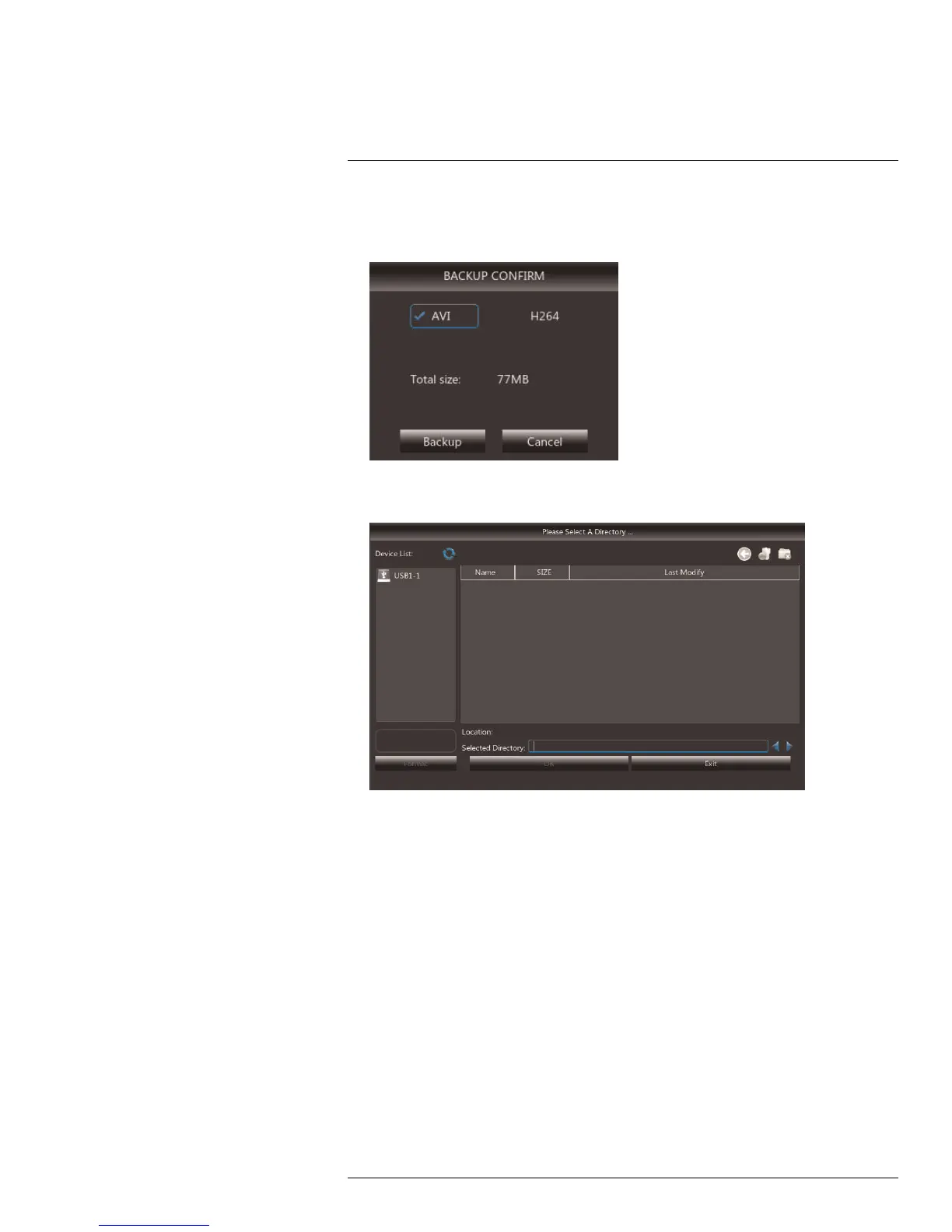

Backup
13
1.
Select
the
format
you
would
like
to
use
to
save
the
video
file.
Select
A
VI
for
compatibil-
ity
with
common
video
play
ers.
Select
H264
for
uncompressed
video
(requires
Lorex
video
player
software).
2.
Click
Backup
.
3.
Under
Device
List
,
select
the
USB
flash
drive
to
transfer
the
backup
files
to
.
#LX400066;
r
.
1.0/26388/26388;
en-US
28
35
37
