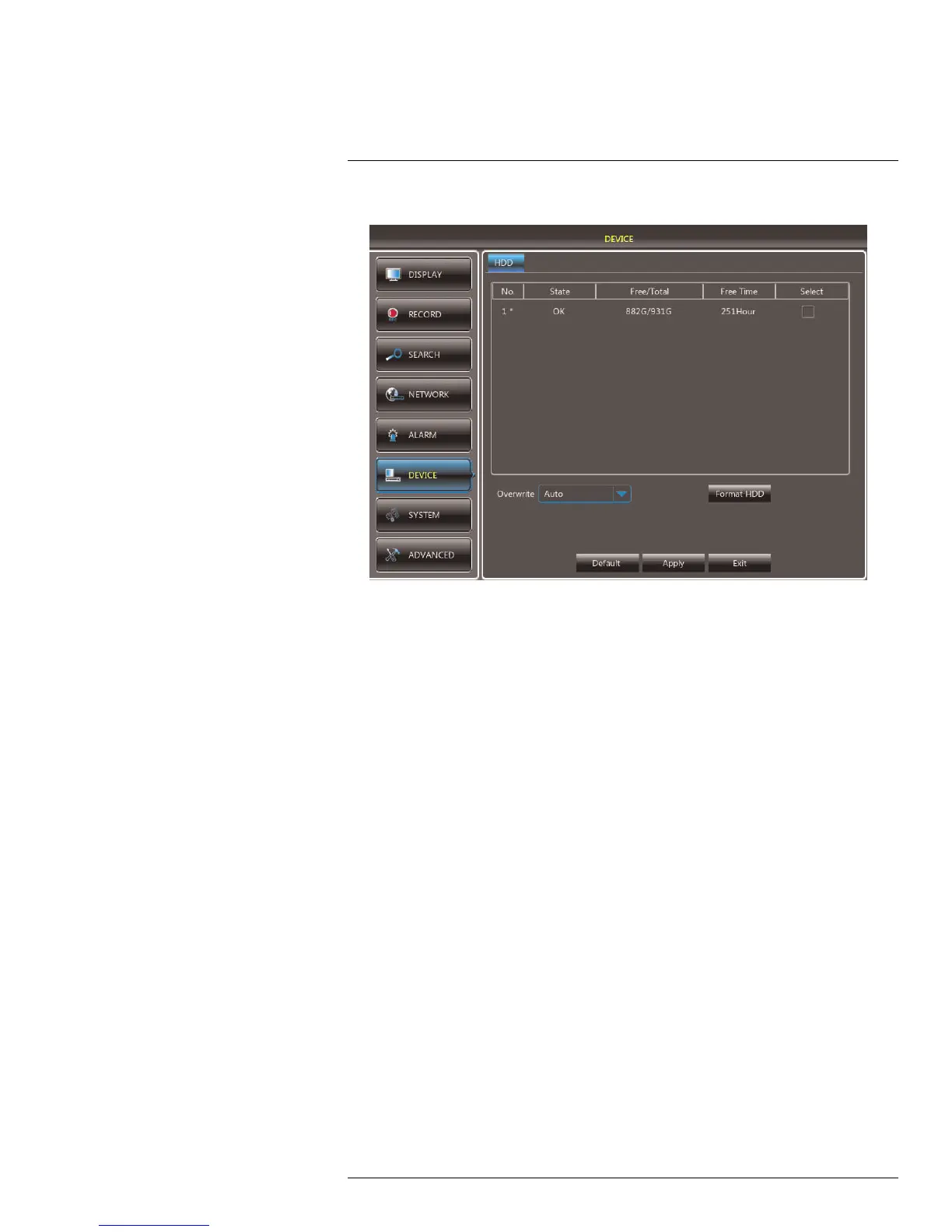

Using
the
Main
Menu
15
1.
Select
the
HDD
tab.
2.
Select
the
checkbox
beside
the
hard
drive
you
wish
to
configure.
3.
In
the
Overwrite
drop-down
menu,
select
Auto
(recommended),
select
the
desired
duration
the
hard
drive
should
retain
its
data,
or
select
Disable
to
disable
overwrite.
4.
Click
Apply
to
save
your
settings.
