5.3.3 Remove the dummy tool

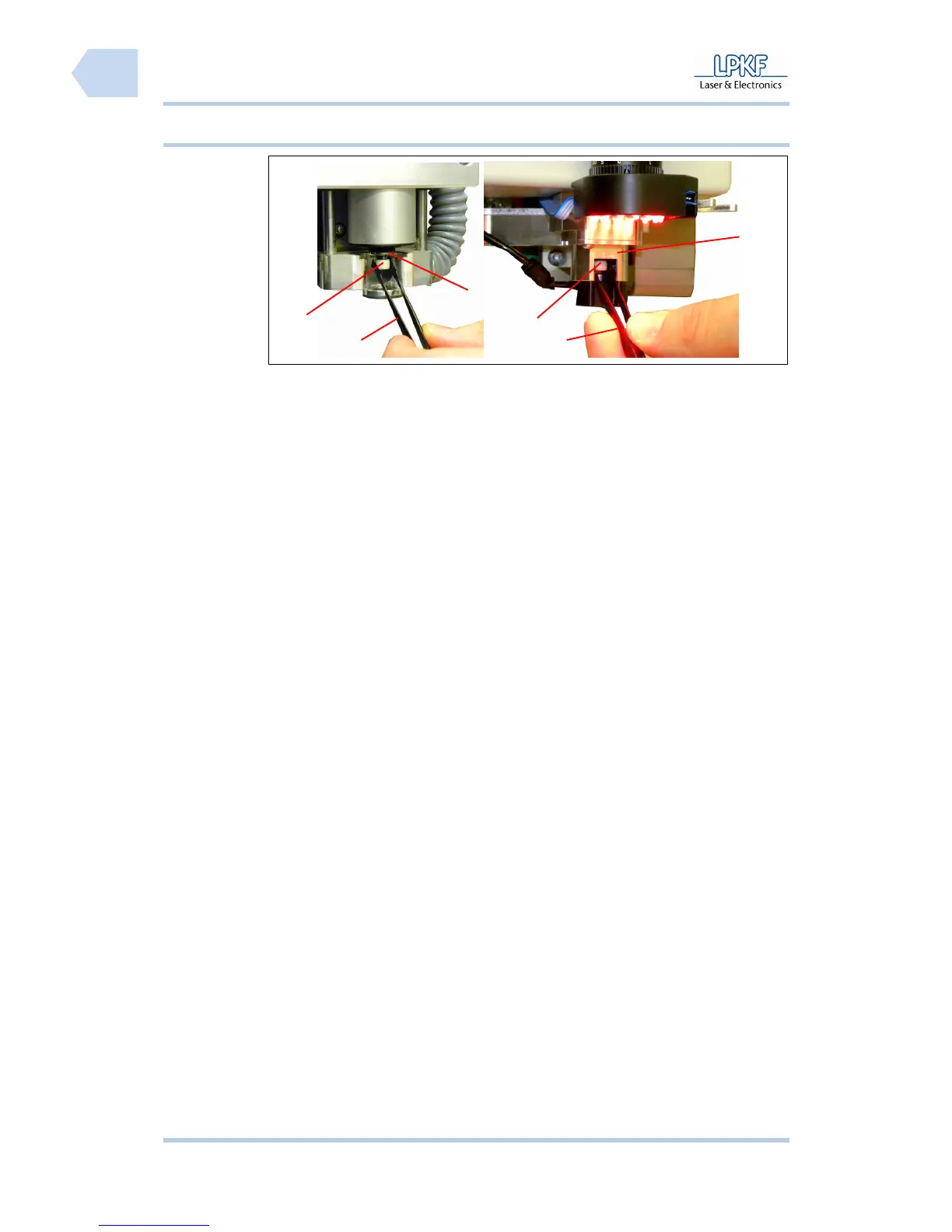

Fig. 16: Dummy
tool automatically
or mechanic lock
/1/ Dummy tool /3/ Tool holder
/2/ Tweezers
■ System start up
1. Take a tweezers and clamp the dummy tool.
2. For machines with mechanically lock:
- Turn the adjustment screw of the collet chuck.
For machines with automatic lock:
- The software open the collet chuck automatically.
➨ The tool holder release the dummy tool.
3. Remove the dummy tool.
♦ Now the circuit board plotter is ready for operation.
