LS tractor LB3100 User Manual

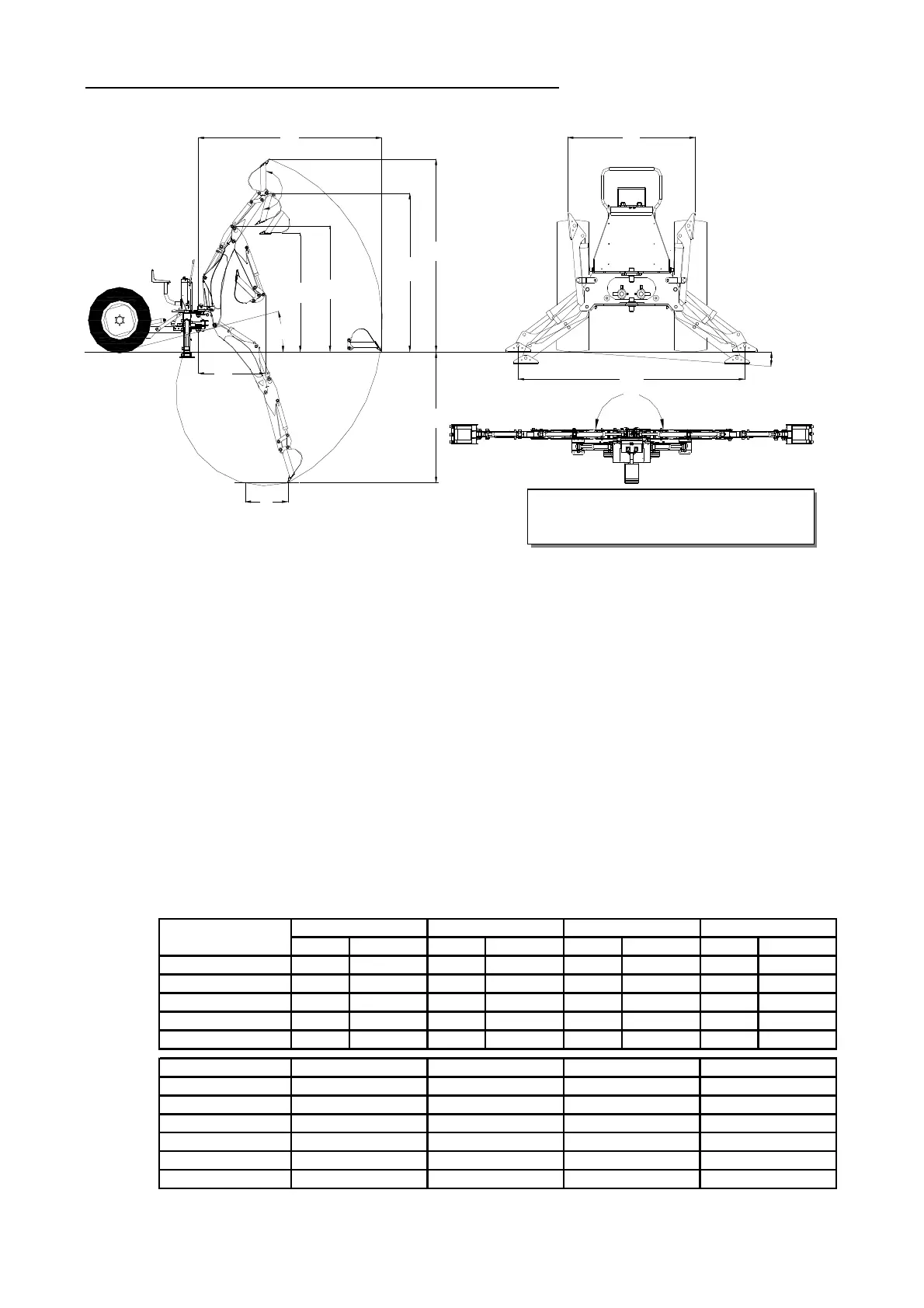

BACKHOE SPECIFICATIONS
Backhoe Model : LB3100
Tractor Model : U43/47, U55, K5047/K5055-2WD, K5055-4WD,
XU5055/XU5055C
,
XU5065/XU5065
C
,
XU6158/XU6163/XU6168
,
XR4000 series, XR4100 series
A. Digging Depth (two foot flat bottom) 2,400 mm 94.4 "
B. Reach from center line of Swing Pivot 3,460 mm 136.1 "
C. Loading Height (bucket at 60°) 2,040 mm 80.3 "
D. Maximum Leveling Angle 10 ° 10 °
E. Swing Arc 180 ° 180 °
F. Transport Height (maximum) 2,360 mm 92.9 "
G. Transport Overhang 1,280 mm 50.4 "
H. Bucket Rotation 180 ° 180 °
I. Stabilizer Spread (down position) 1,745 mm 68.7 "
J. Stabilizer Spread (up position) 1,180 mm 46.4 "
K. Angle of Departure 21 ° 21 °
Shipping Weight - Backhoe(without bucket) 500 ㎏ 1,102 lbs
Bucket Digging Force 1,700 ㎏ 3,748 lbs
Dipperstick Digging Force 1,000 ㎏ 2,205 lbs
Operating Pressure 170 bar 2,466 psi
Specifications may vary depending on tractor model, tire size and bucket used.
D
I
K
2'
E
A
J
B
F
H
G
C
J
H
Specifications and design are
subject to change without prior
mm inch mm inch mm inch mm inch
Boom 70 2.756 636 25.039 386 15.197 40 1.575
Bucket 60 2.362 630 24.803 395 15.551 35 1.378
Dipperstick 70 2.756 708 27.874 505 19.882 40 1.575
Swing 60 2.362 398 15.669 223 8.780 35 1.378
Stabilizer 60 2.362 446 17.559 262 10.315 35 1.378
Buckets Bucket
9" Bucket
12" Bucket
16" Bucket
18" Bucket
24" Bucket
36" Bucket
6 2.78 cu. ft. 4.00 cu. ft. 114 lbs.
5 2.11 cu. ft. 2.82 cu. ft. 94 lbs.
Rod DIA
CylinderCylinders
Bore DIA Retracted Length Stroke
Heaped Capacity
3
3
Shipping WeightTeeth Q'TY Struck Capacity
3 0.73 cu. ft. 0.87 cu. ft. 46 lbs.
70 lbs.
1.24 cu. ft. 56 lbs.
1.76 cu. ft. 64 lbs.
4
1.01 cu. ft.
1.56 cu. ft. 2.02 cu. ft.
1.38 cu. ft.
- 9 -
