LS tractor LB3100 - XR4000 Series XR4100 Series

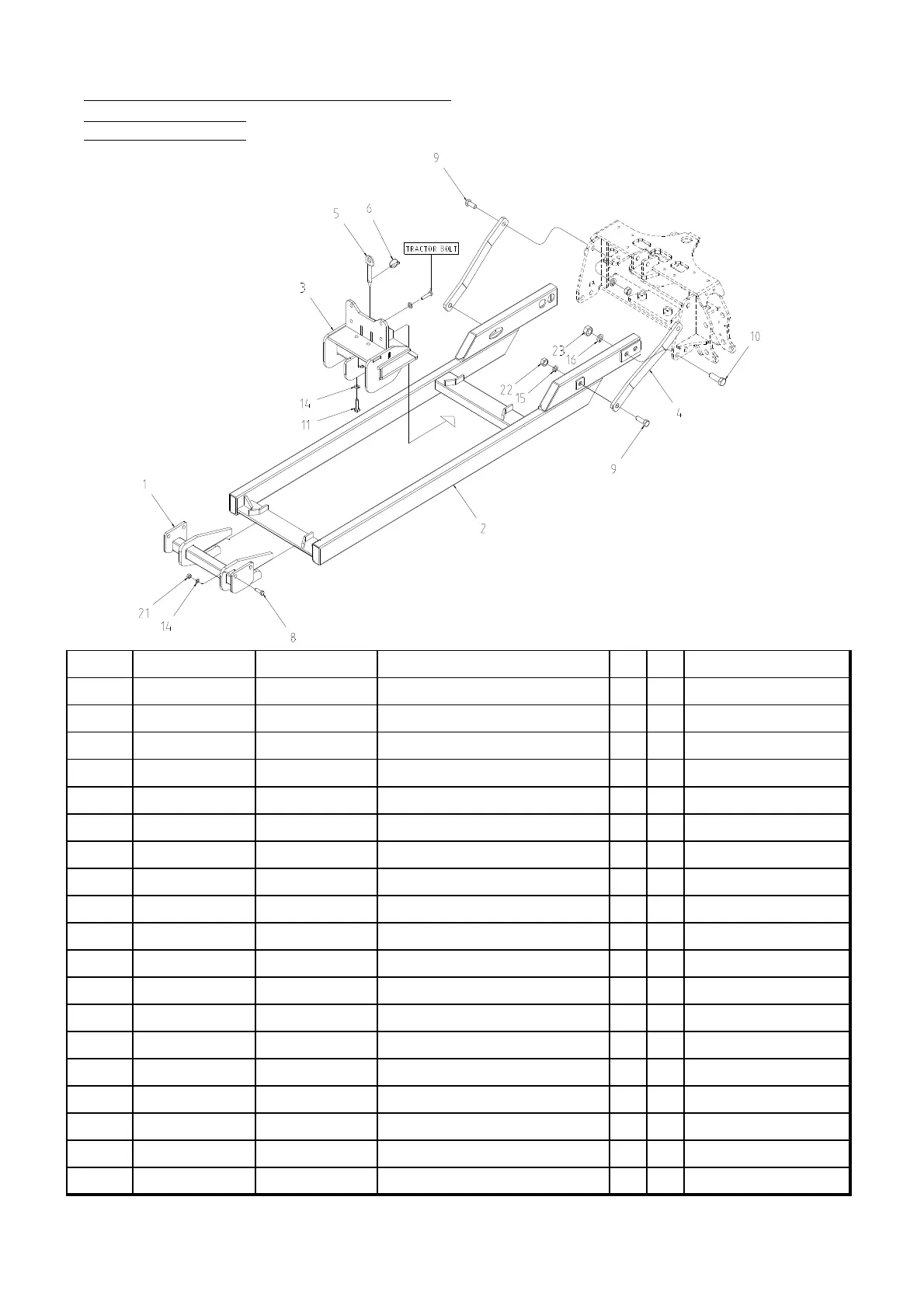

SUBFRAME ASSEMBLY
-XR4000 series
-XR4100 series
REF.NO LS PART.NO PART.NO DESCRIPTION QTY I.C SERIAL OR DATE
0 40324625 FTS85-00000 SUBFRAME ASS'Y 1
1 40324626 FTS85-11100 CROSS BAR W.A. 1
2 40286941 FTS79-11200 RAIL W.A. 1
3 40231133 FTS72-10300 BRACKET_MID W.A. 1
4 40231116 DK05-0101-02 BRACE 2
5 40230905 14132-20120 PIN 2
6 40230904 14021-10000 RING PIN 2
8 40228623 10191-M1406-60 HEX.BOLT-HT,M14-2.0P 60L 4
9 40230894 10191-M2007-70 HEX.BOLT-HT,M20-2.5P 70L 4
10 40230895 10191-M2207-70 HEX.BOLT-HT,M22-2.5P 70L 4
11 40230601 10191-M1406-40 HEX.BOLT-HT,M14-2.0P 40L 2
14 40228643 10316-M1400 WASHER-SPRING,M14 6
15 40228645 10316-M2000 WASHER-SPRING,M20 4
16 40230899 10316-M2200 WASHER-SPRING,M22 4
21 40228637 10261-M1406 HEX.NUT-HT,M14-2.0P 4
22 40228639 10261-M2007 HEX.NUT-HT,M20-2.5P 4
23 40230898 10261-M2207 HEX.NUT-HT,M22-2.5P 4
