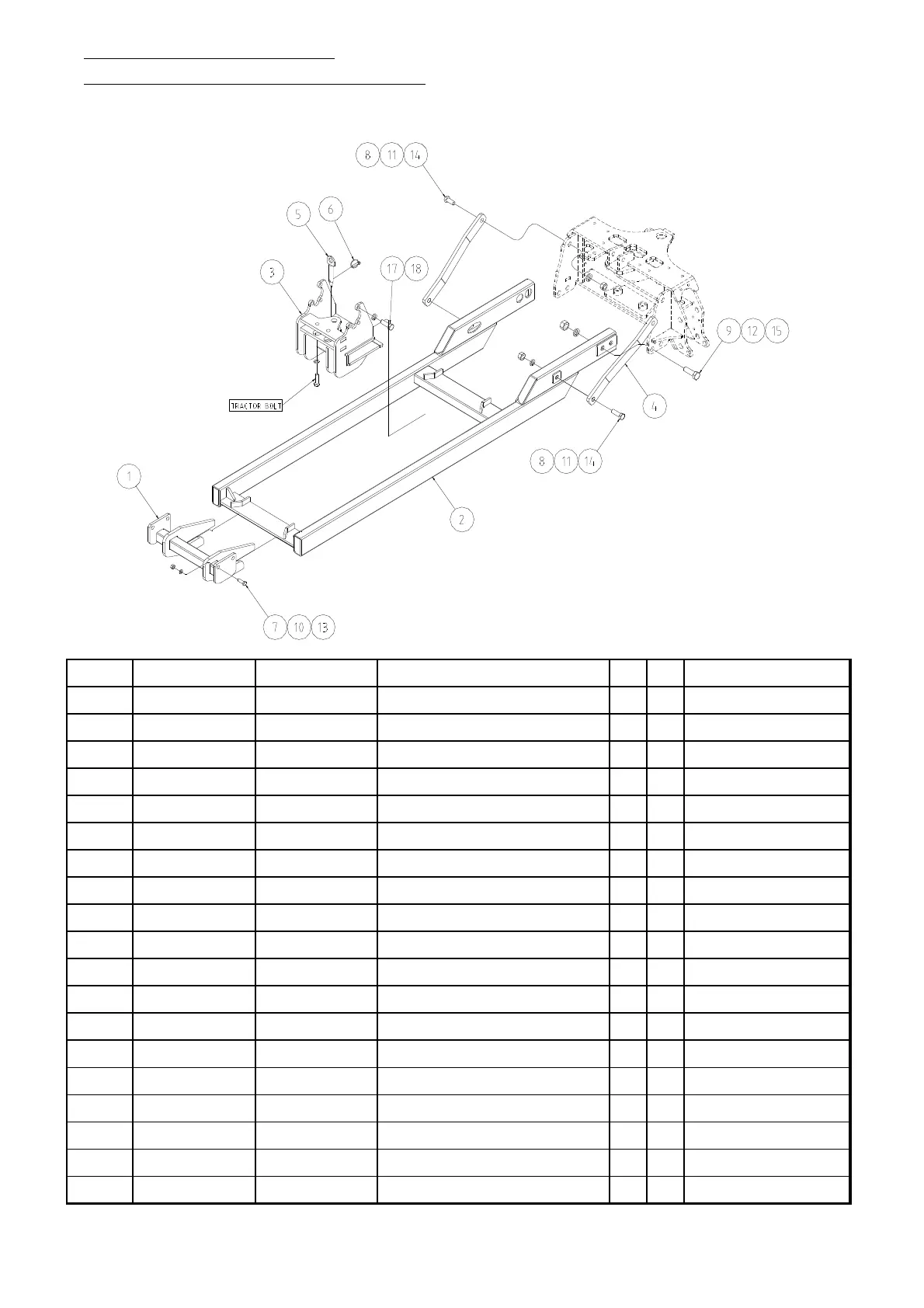

SUBFRAME ASSEMBLY
-K5047/K5055-2WD,K5055-4WD
REF.NO LS PART.NO PART.NO DESCRIPTION QTY I.C SERIAL OR DATE
- 40288717 FTS80-00000 SUBFRAME ASS'Y 1
1 40288718 FTS80-11100 CROSS BAR W.A. 1
2 40288719 FTS80-11200 RAIL W.A. 1
3 40288720 FTS80-11300 BRACKET_MID W.A. 1
4 40261825 FTS38-50101 BRACE 2
5 40230905 14132-20120 PIN 2
6 40228656 14021-10000 RING-PIN,10 2
7 40228623 10191-M1406-60 HEX.BOLT-HT,M14-2.0P 60L 4
8 40230894 10191-M2007-70 HEX.BOLT-HT,M20-2.5P 70L 4
9 40230895 10191-M2207-70 HEX.BOLT-HT,M22-2.5P 70L 4
10 40228643 10316-M1400 WASHER-SPRING,M14 4
11 40228645 10316-M2000 WASHER-SPRING,M20 4
12 40230899 10316-M2200 WASHER-SPRING,M22 4
13 40228637 10261-M1406 HEX.NUT-HT,M14-2.0P 4
14 40228639 10261-M2007 HEX.NUT-HT,M20-2.5P 4
15 40230898 10261-M2207 HEX.NUT-HT,M22-2.5P 4
16 40288721 10191-M1604-55 HEX.BOLT-HT,M16-1.5P 55L 6
17 40228644 10316-M1600 WASHER-SPRING,M16 6
- 29 -
