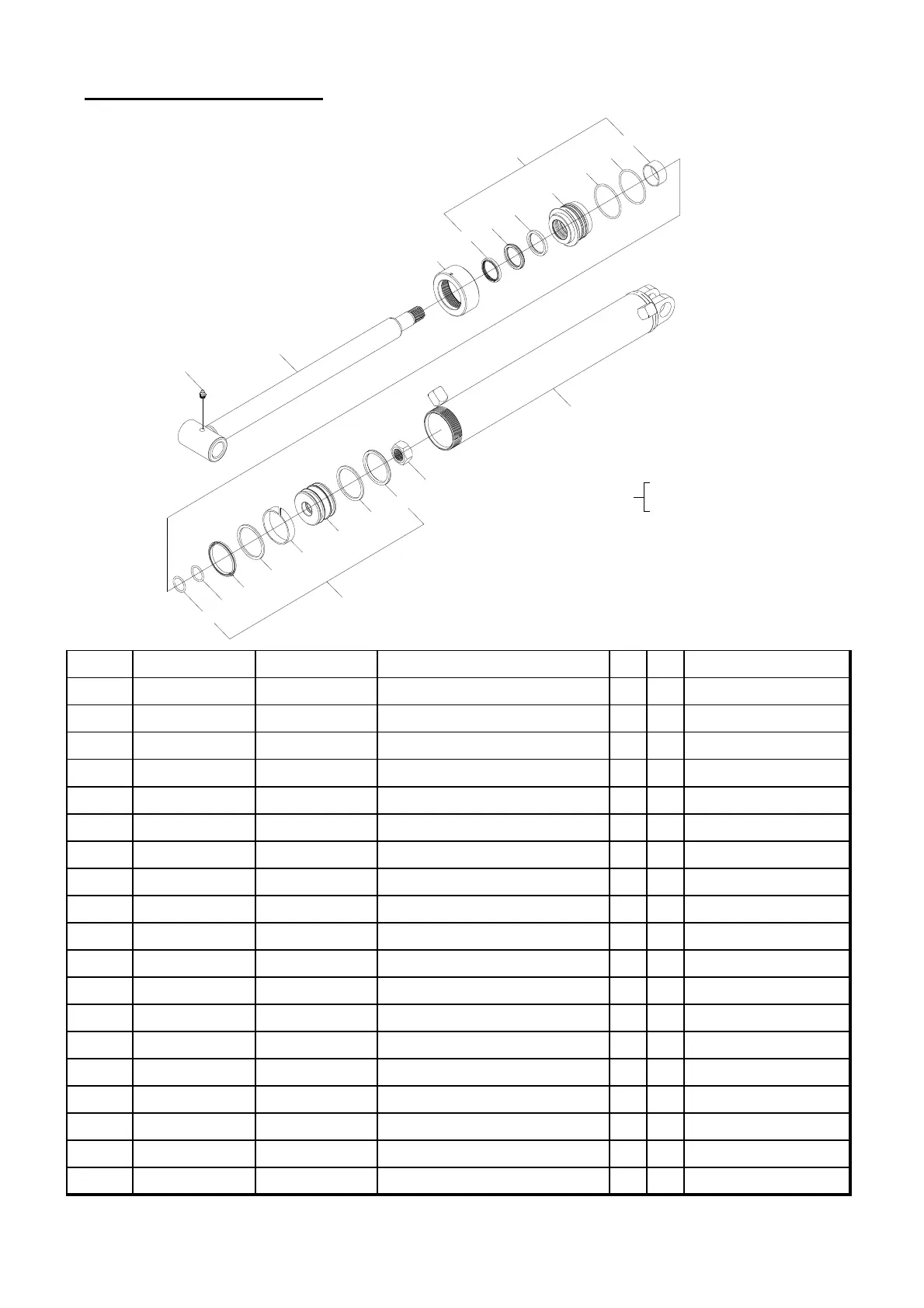

BOOM CYLINDER ASSEMBLY
REF.NO LS PART.NO PART.NO DESCRIPTION QTY I.C SERIAL OR DATE
1 40261477 227103 BOOM CYLINDER ASSEMBLY 1
2 40261493 227103-R ROD ASS'Y 1
3 40230859 OC70-8037 CAP, OUTER,∅70-80-37L 1
4 40230766 IC70-4055 COVER, INNER,∅70-40-55L 1
5 40230710 DSSD-R040 DUST, SDR,40-48-5/6.5 1
6 40230872 UPSK-Y040 PACKING, U, SKY,40-50-6 1
7 40230869 UPIS-I040 PACKING, U, ISI,G55 1
8 40230861 OR1B-G065 O-RING, 1BG65,1BG65 2
9 40230711 DU04-0020 BUSHING, DU,40-44-20 1
10 40230865 PI70-2746 PISTION,∅70-27-46L 1
11 40228870 OR1B-G027 O-RING,1BG27 2
12 40230871 UPOS-I070 PACKING, U, OSI,70-60-6 2
13 40230868 TRBR-0070 BACKUP RING,70-60-3 2
14 40231139 WERY-T070 WEARING, RYT,70-65-15 1
15 40228864 NTP0-U100-C NUT,1-14UN 1
16 40261494 227103-T TUBE ASS'Y 1
17 40231134 GNIT-018I NIPPLE,GREASE,1/8" 1
18 40230764 IA70-4055 SEAL KIT HEAD,NO.3~8 1
19 40230863 PA70-2746 SEAL KIT PISTON,NO.9~13 1
16
12
11
11
14
13
13
10
15
12
4
9
8
8
3
7
6
5
2
17
18
19
1
2
~
17
