BACKHOE MOUNTING
CAUTION:
Backhoe should be mounted on the proper subframe assembly.
CAUTION:
Never store backhoe without bucket attached to the backhoe.
STEP 1.
Attach the loader midmount and mounting bracket to the tractor by fit the bolts and nuts.
STEP 2.

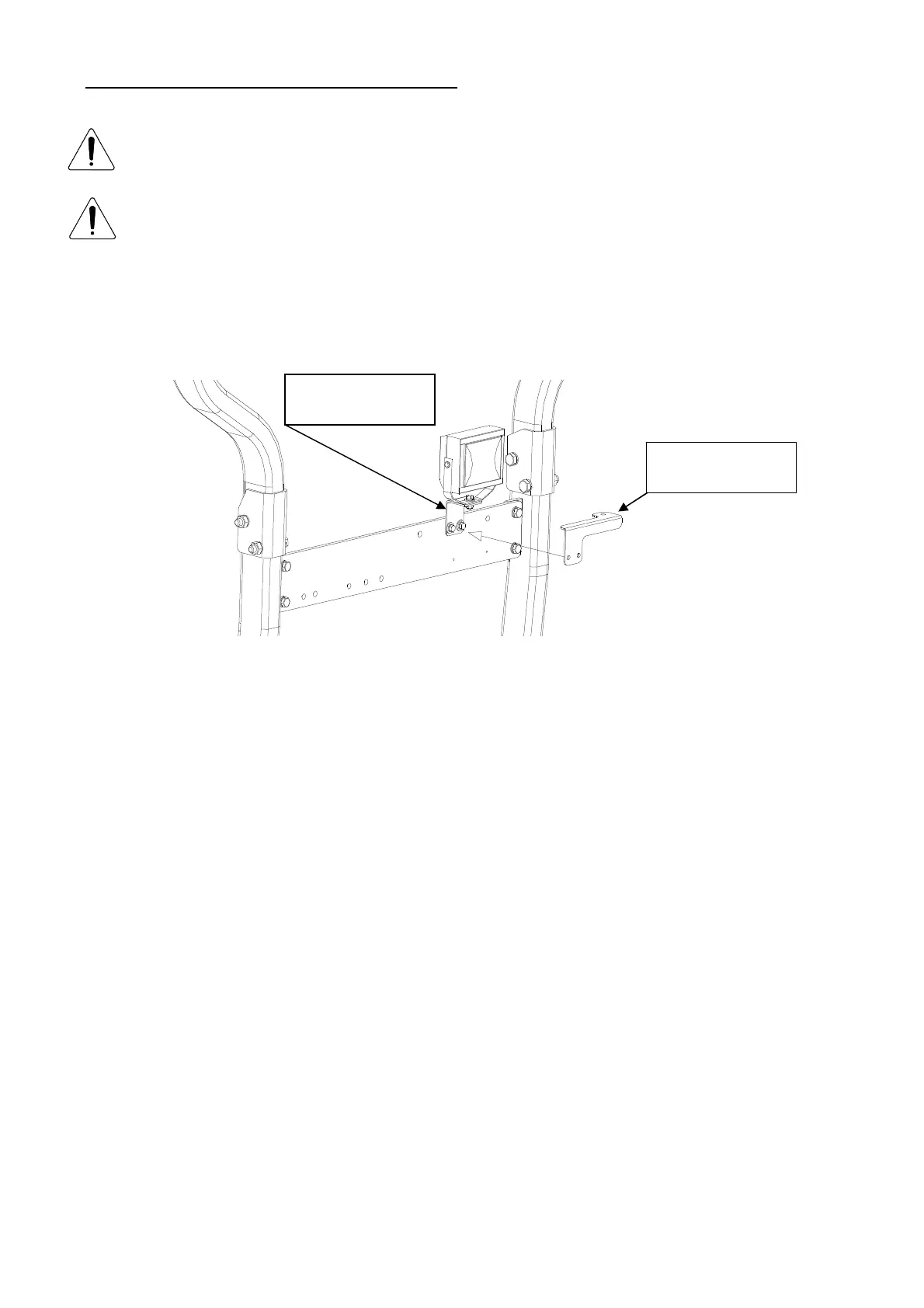

Install the new working lamp bracket(Backhoe) instead of installed bracket
STEP 3.
STEP 4.
Move the tractor backward slowly toward the backhoe parallel to subframe assembly, until the
couplers on the backhoe hoses are able to connect with the hose kit hydraulic couplers or tractor
auxiliary couplers located rear of the tractor. Then, put the couplers to connected.
Store the subframe and subframe crosser horizontally with the cross bar and mounting bracket by
the backhoe control lever. Also, matching these on same level
Working Lamp
Bracket(Tractor)
Working Lamp
Bracket(Backhoe
- 17 -
