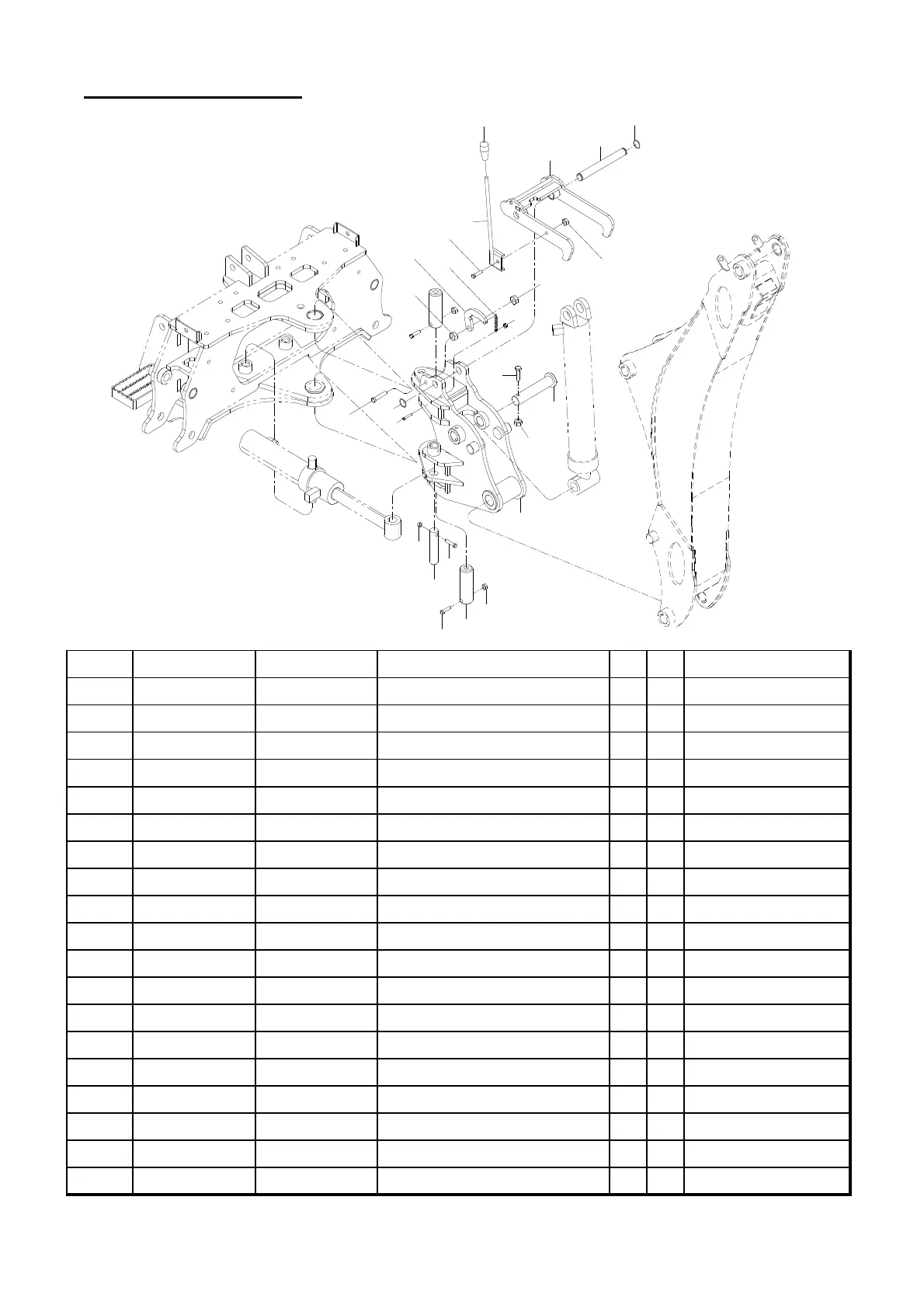

SWING FRAME ASSEMBLY
REF.NO LS PART.NO PART.NO DESCRIPTION QTY I.C SERIAL OR DATE
1 40261804 BT664-31000-01 SWING FRAME ASS'Y 1
2 40231106 BT664-74100 SWING CYL.PIN,∅25×118L 2
3 40231098 BT664-72100-03 PIN,∅40-117L 2
4 40261809 BT664-72200-01 LOCK 1
5 40231101 BT664-72400 PIN, ∅22-190L 1
6 40231100 BT664-72300 HANDLE SET 1
7 40231031 BC04-5100 PLASTIC BALL 1
8 40231102 BT664-72500 LOCK 1
9 40230946 6002-0122 SNAP RING, C22 2
10 40231055 BN06-0108 SPRING 1
11 40261806 BT664-71400-01 PIN 1
12 40228634 1021N-M1004 NUT-SELFLOCK,M10-1.5P 1
13 40230896 1021N-M0803 NUT-SELFLOCK,M8-1.25P 6
14 40261480 10121-M080C-60 HEX.BOLT,M8-1.25P 60L 3
15 40261479 10121-M080C-50 HEX.BOLT,M8-1.25P 50L 2
16 40230878 10121-M0803-25 HEX.BOLT,M8-1.25P 25L 1
17 40230879 10121-M0803-35 HEX.BOLT,M8-1.25P 35L 1
18 40229894 10121-M1004-35 HEX.BOLT,M10-1.5P 35L 1
19 40228630 10211-M1004 HEX.NUT,M10-1.5P 1
19
12
7
5
10
8
18
16
9
6
4
3
2
1
11
14
13
13
14
13
17
13
15
13
9
- 38 -
