LS tractor LB3100 User Manual

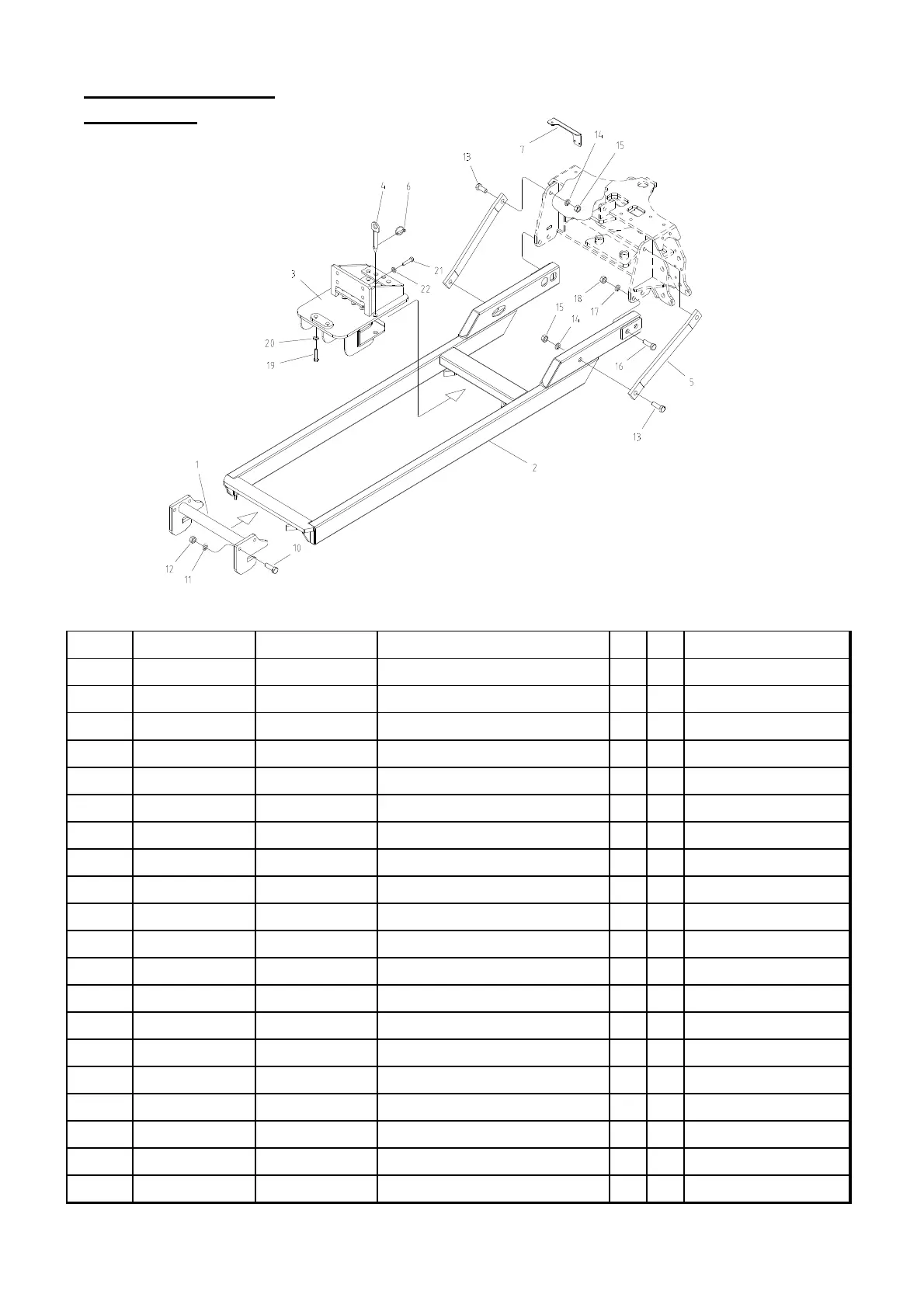

SUBFRAME ASSEMBLY
-U43/47, U55
REF.NO LS PART.NO PART.NO DESCRIPTION QTY I.C SERIAL OR DATE
1 40261827 FTS74-00100 CROSS BAR W.A.. 1
2 40261828 FTS74-00200 MAIN RAIL W.A.. 1
3 40261829 FTS74-00300 MOUNTING BRACKET W.A.. 1
4 40261488 14132-20146 PIN 2
5 40261825 FTS38-50101 BRACE 2
6 40228656 14021-10000 RING-PIN,∅10 2
7 40261826 FTS74-00001 BRACKET-WORKING LAMP 1
10 40228623 10191-M1406-60 HEX.BOLT-HT,M14-2.0P 60L 4
11 40228643 10316-M1400 WASHER-SPRING,M14 4
12 40228637 10261-M1406 HEX.NUT-HT,M14-2.0P 4
13 40230894 10191-M2007-70 HEX.BOLT-HT,M20-2.5P 70L 4
14 40228645 10316-M2000 WASHER-SPRING,M20 4
15 40228639 10261-M2007 HEX.NUT-HT,M20-2.5P 4
16 40230895 10191-M2207-70 HEX.BOLT-HT,M22-2.5P 70L 4
17 40230899 10316-M2200 WASHER-SPRING,M22 4
18 40230898 10261-M2207 HEX.NUT-HT,M22-2.5P 4
19 40261487 10191-M1804-50 HEX.BOLT-HT,M18-1.5P 50L 2
20 40230613 10316-M1800 WASHER-SPRING,M18 2
21 40261486 10191-M1604-40 HEX.BOLT-HT,M16-1.5P 40L 4
22 40228644 10316-M1600 WASHER-SPRING,M16 4
