LS tractor LB3100 User Manual

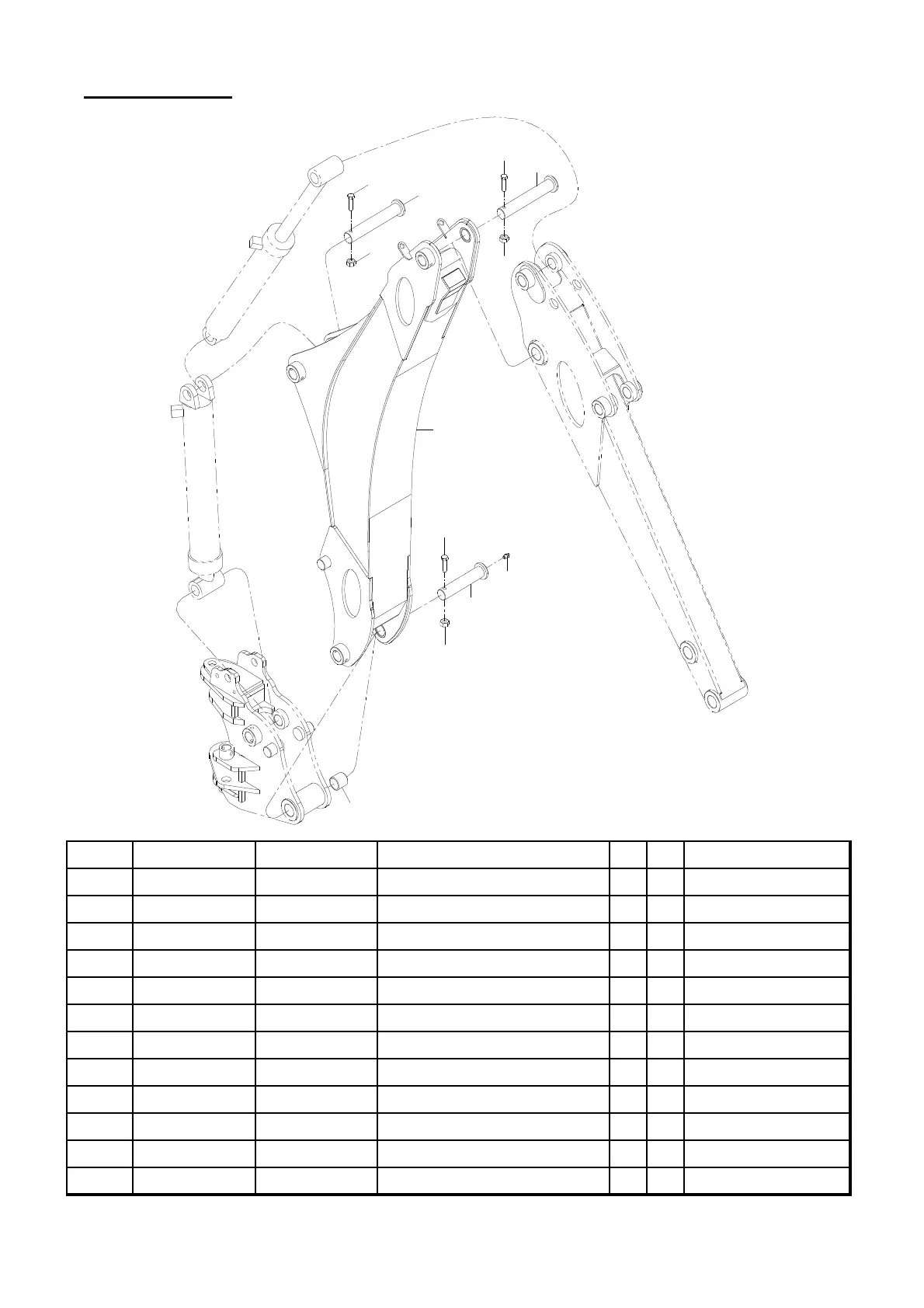

BOOM ASSEMBLY
REF.NO LS PART.NO PART.NO DESCRIPTION QTY I.C SERIAL OR DATE
1 40261496 BT400-21100 BOOM ASS'Y 1
2 40231095 BT664-71700 PIN,∅30-176.5L 1
3 40231096 BT664-71900-01 PIN,∅40-185.5L 1
4 40231093 BT664-71500-01 PIN,∅40-185.5L 1
5 40261480 10121-M080C-60 HEX.BOLT,M8-1.25P 60L 1
6 40261481 10121-M080C-70 HEX.BOLT,M8-1.25P 70L 2
7 40230896 1021N-M0803 NUT-SELFLOCK,M8-1.25P 3
8 40228707 802G0-T1900 NIPPLE,GREASE,1/8" 1
9 40230979 83040-4440D BUSHING,404440 2
9
2
7
6
1
5
7
7
4
8
6
3
- 37 -
