LS tractor LM1160 - Adjusting Mower; Mower Deck Setting; Cutting Height Adjustment

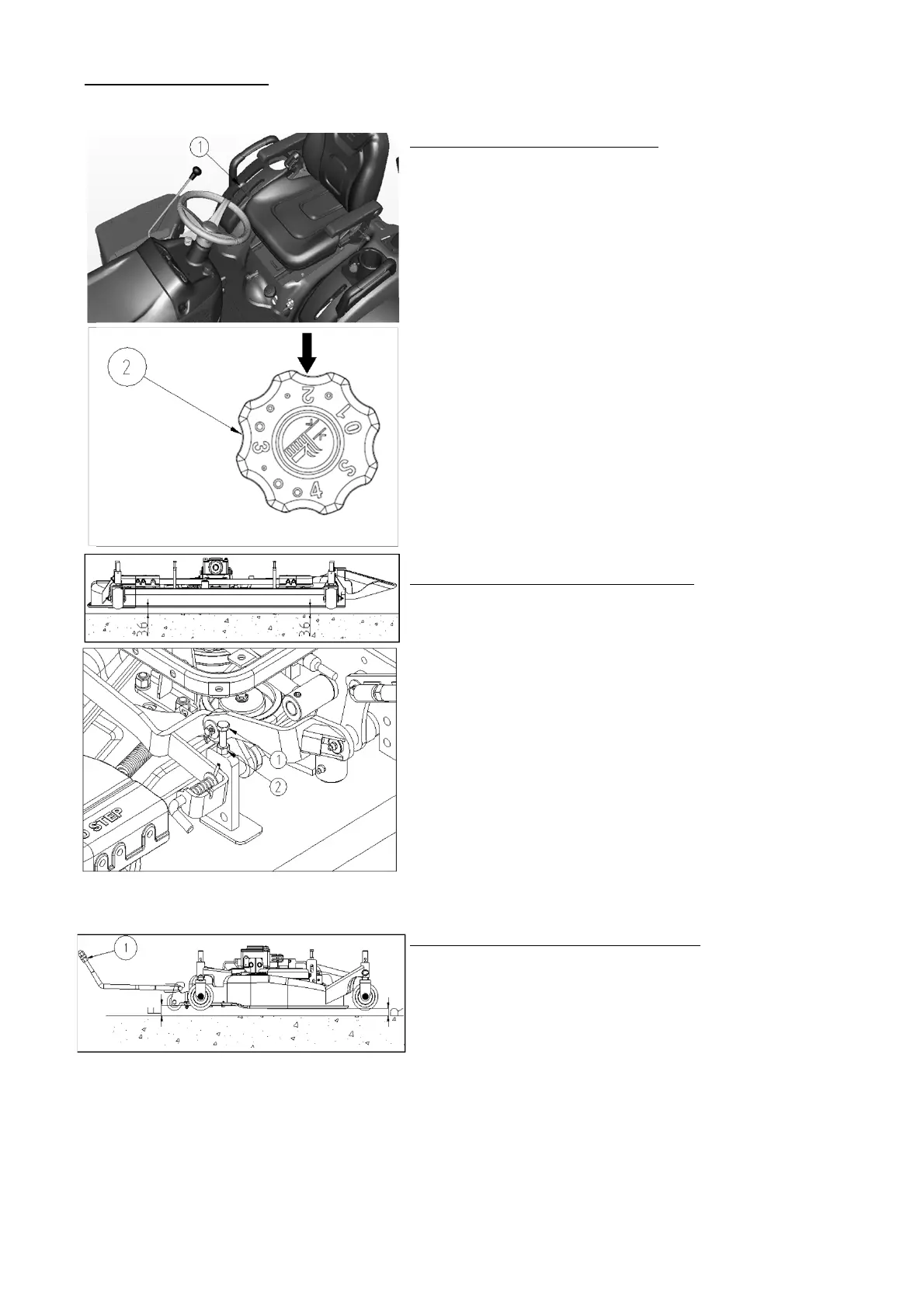

ADJUSTING
F : 50mm R : 36mm
4. Stop the engine and remove the key.
5. Set the cutting height control dial(2) at "2" grade and
move the hydraulic control lever forward to fall down the
link to the "2" grade position.
Adjusting Front and Rear Cutting Height
Setting Mower Deck after installed
1. Park the machine on a firm, flat and level surface.
3. Start the engine and move the hydraulic control lever(1)
rearward to raise the link to the highest position.
2. Tire pressure must be correct.(See Tractor Operator's
1. Adjust the left and right side with bolt(1) until the deck
height become 36mm from ground to bottom of deck rear
side.
Adjusting Left and Right Cutting Height
2. Tighten the nut (2) to fix the height adjusting bolt(1).
1. Check front height "F" and rear height "R" with below.
2. If not, adjust nuts(1) until the "F" become around 50mm.
3. Tighten the nuts(1) to fix the fron theight(F).
- 14 -
