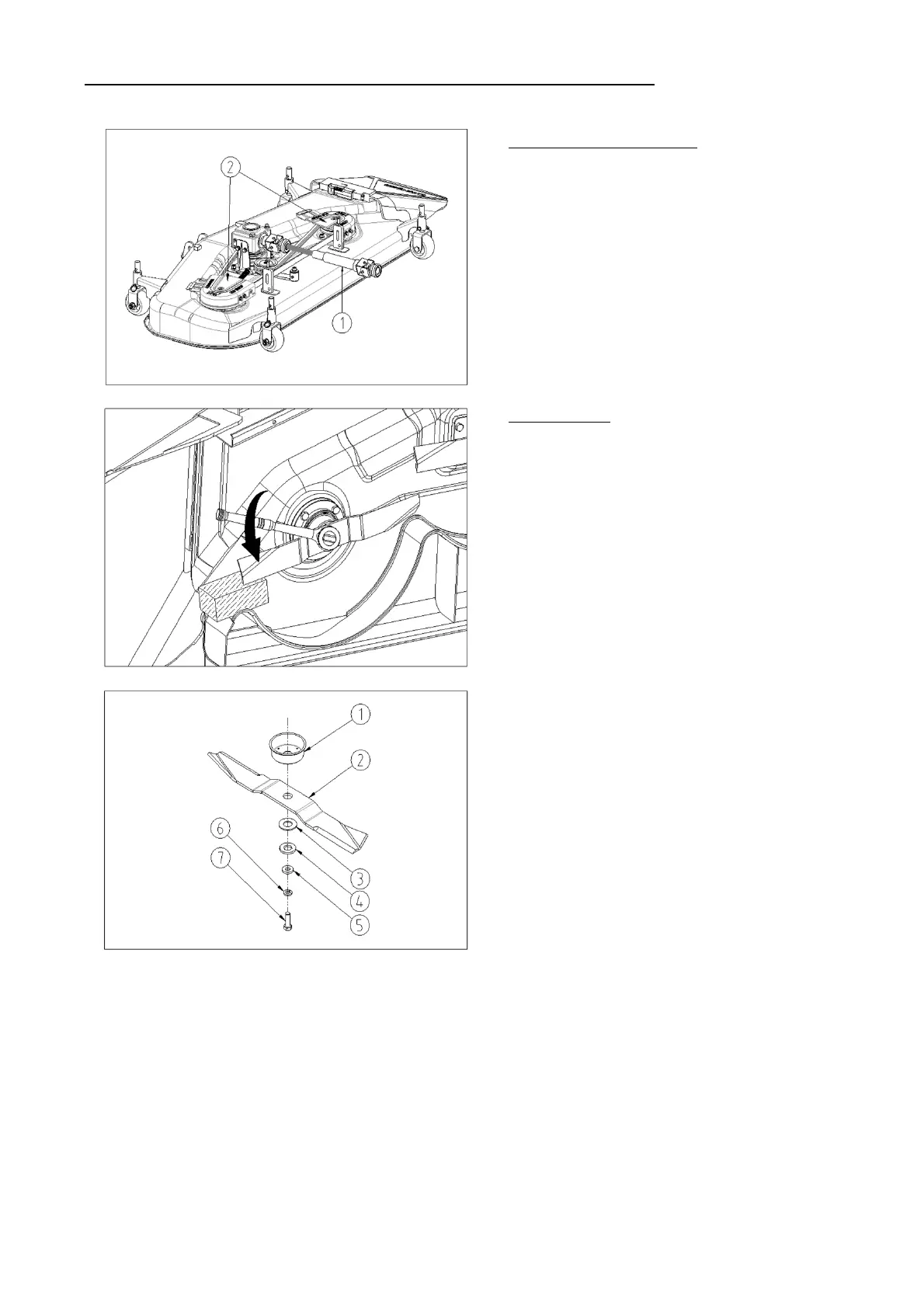

DISASSEMBLING AND ASSEMBLING
Drive Joint and Belt Cover
(1) Drive Joint (2) Belt Cover
Mower Blades
(1) Dust Cover (2) Blade
(3) Conical Washer (4) Hexagonal Washer
(5) Lock Washer (6) Washer-Spring
(7) Blade Screw
Note - Make sure the conical washer is not
flattened out of or worn, causing blade to
slip easily.
1. Remove the drive joint
2. Remove the belt cover.
2. Remove the mower blade screw(7), and
remove the washer-spring(6), lock
washer(5), hexagonal washer(4), conical
washer(3) and dust cover(1).
1. Turn over the mower.
Note - To remove the blade securely, wedge
a block of wood between one blade and the
mower deck in such position that it will hold
the blade safely while loosing or tightening
the blade screw.
(When reassembling)
- install the blade in position together with
the dust cover and the washers. Tighten
them up with screw.
- 43 -
