MOWER DECK REMOVAL
BEFORE REMOVING REMOVING
Ste
3. Remove the mower.
Disconnect the drive shaft from tractor mid-PTO.
Set the cutting height control dial to "0".
Park the unit on a smooth hard surface. Drop
mower to the ground. Shut off engine, set
parking brake and remove ignition key.

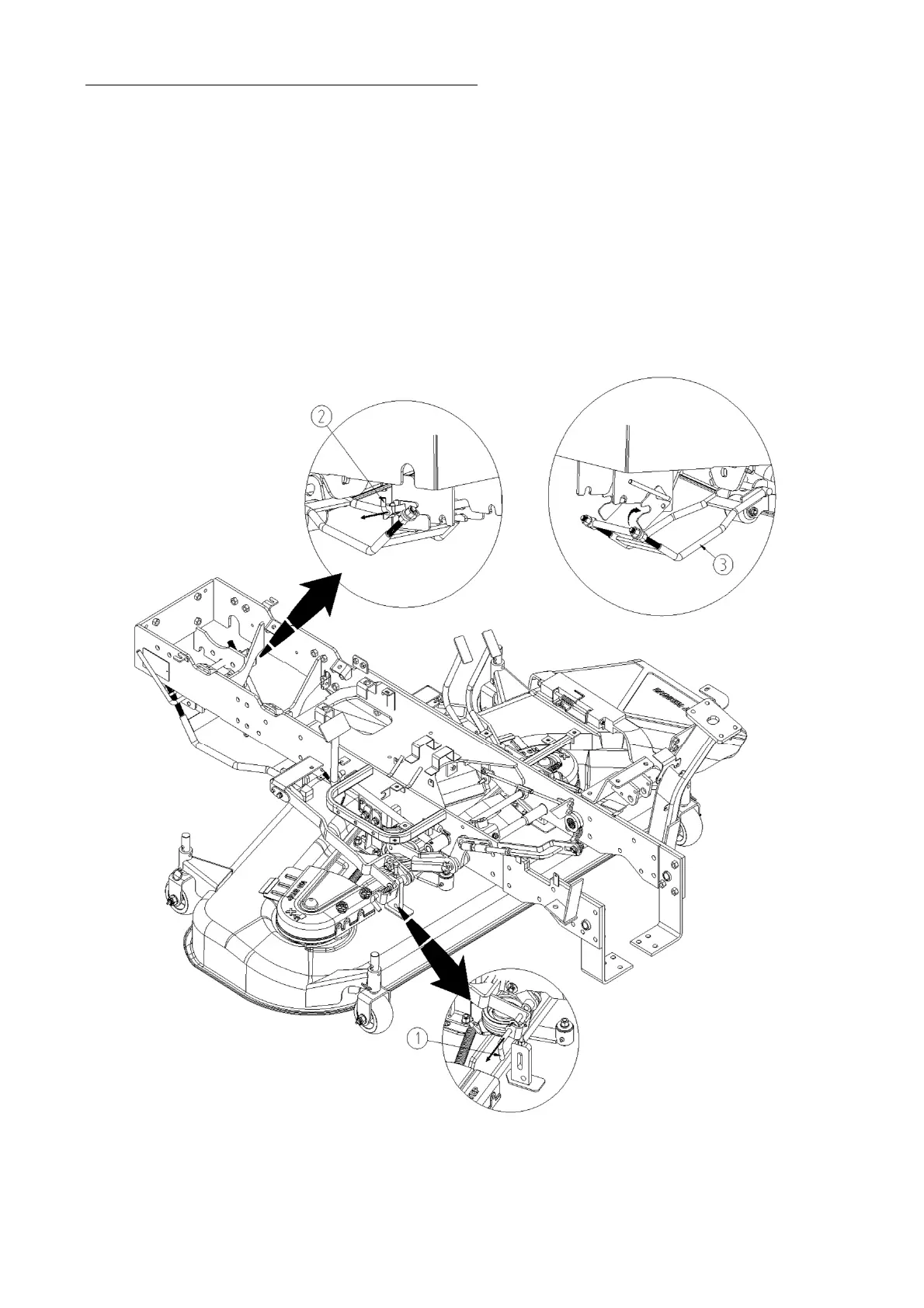

Step 1. Pull out the L-pin(1,2). Be careful of sudden
drop of front link from the mounting.
Placing wood "blocking" which will act as a
"ramp" at the back and front of the mower.
Step 2. Remove the front link ass'y(3) from mower
hook.
- 16 -
To Next Page
