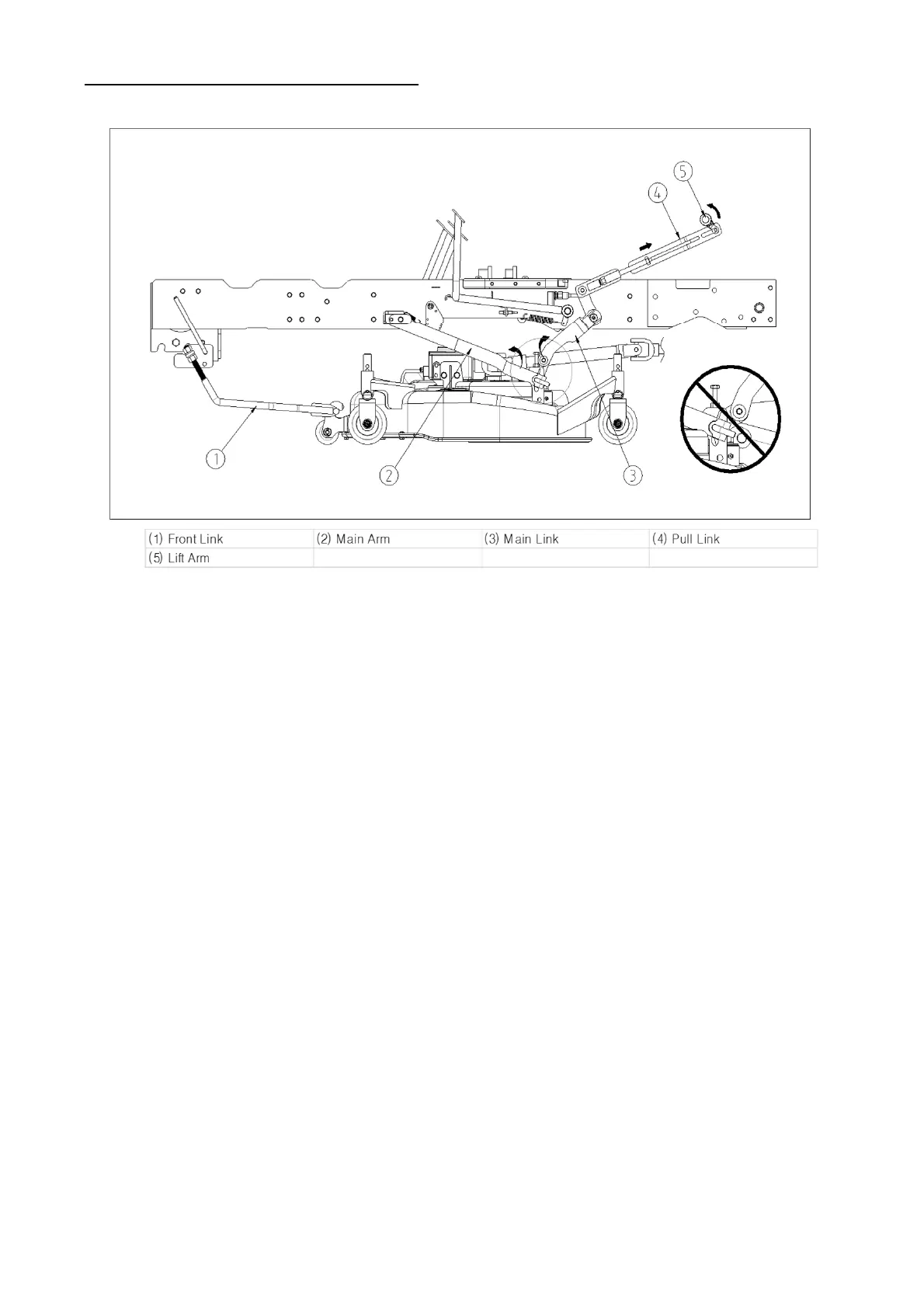

LIFTING MECHANISM
Note - Be careful not to exceed the dead point of the link when assembling.
As this link system is a parallel linkage, the mower can be kept parallel at every position.
The lifting of mower is performed by the hydraulic system installed on the tractor.
The mower should be kept lifting when traveling. When the position control lever is moved to
"LIFT" position, the lift arm(5) is lifted up by the oil pressure of hydraulic system, and the pull
link (4) is pulled rearward.
Therefore, main link (3), rotate and the mower is lifted by the the main arms.
- 42 -
