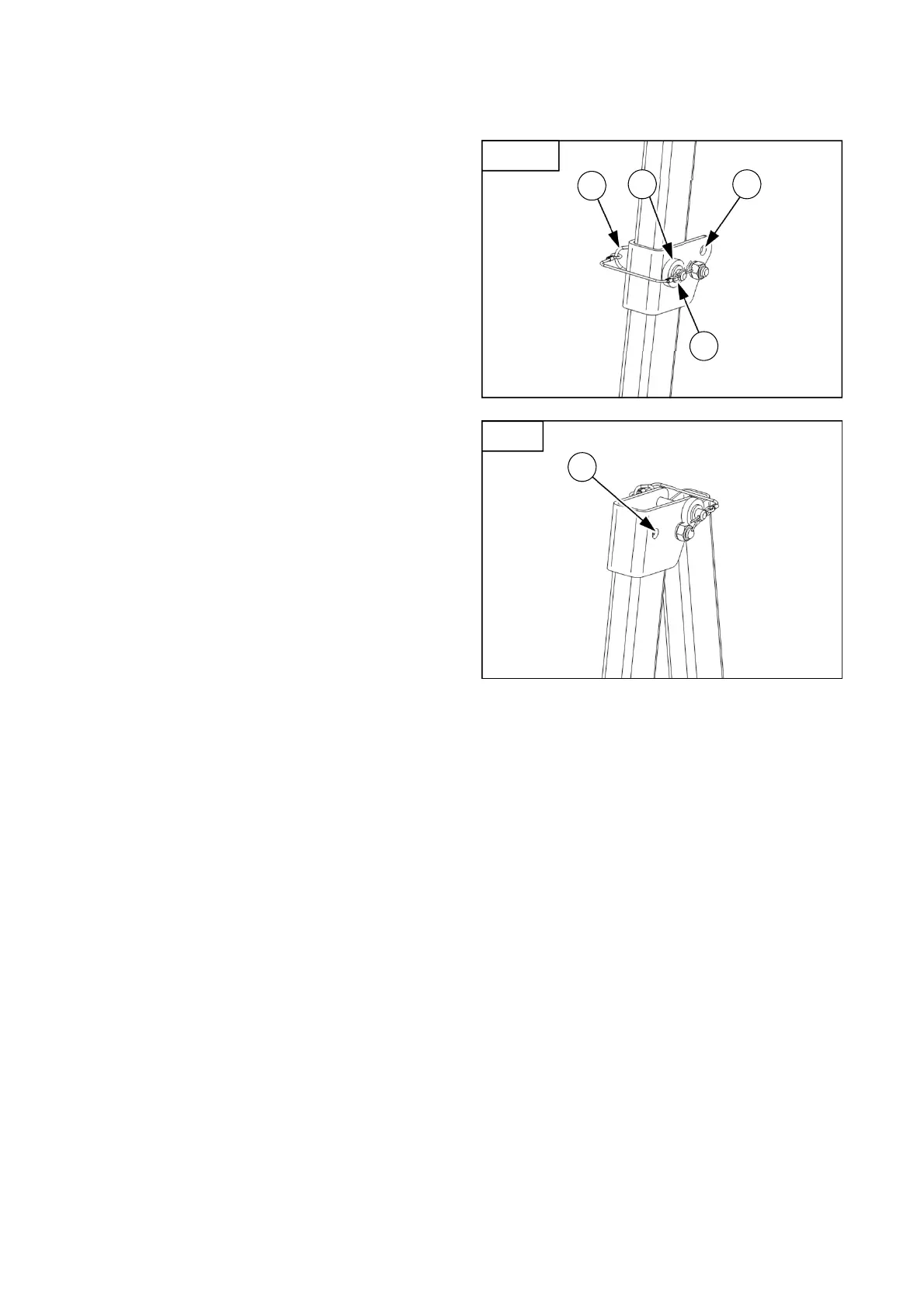

 How to fold the upper frame of the roll-bar.
1. Pull out the snap pins① and remove the
grommets③ on both sides.
2. Hold the upper frame tightly and remove the
locking pins② on both sides.
3. Fold the upper frame reward.
4. Insert the locking pins② into the hole “A” and
assemble the grommets and snap pins.
 When standing up the upper frame, follow the
same procedure reversely. Assemble the
locking pins② into the hole “B” after standing up
the upper frame.
A
Folded
Unfolded
B
