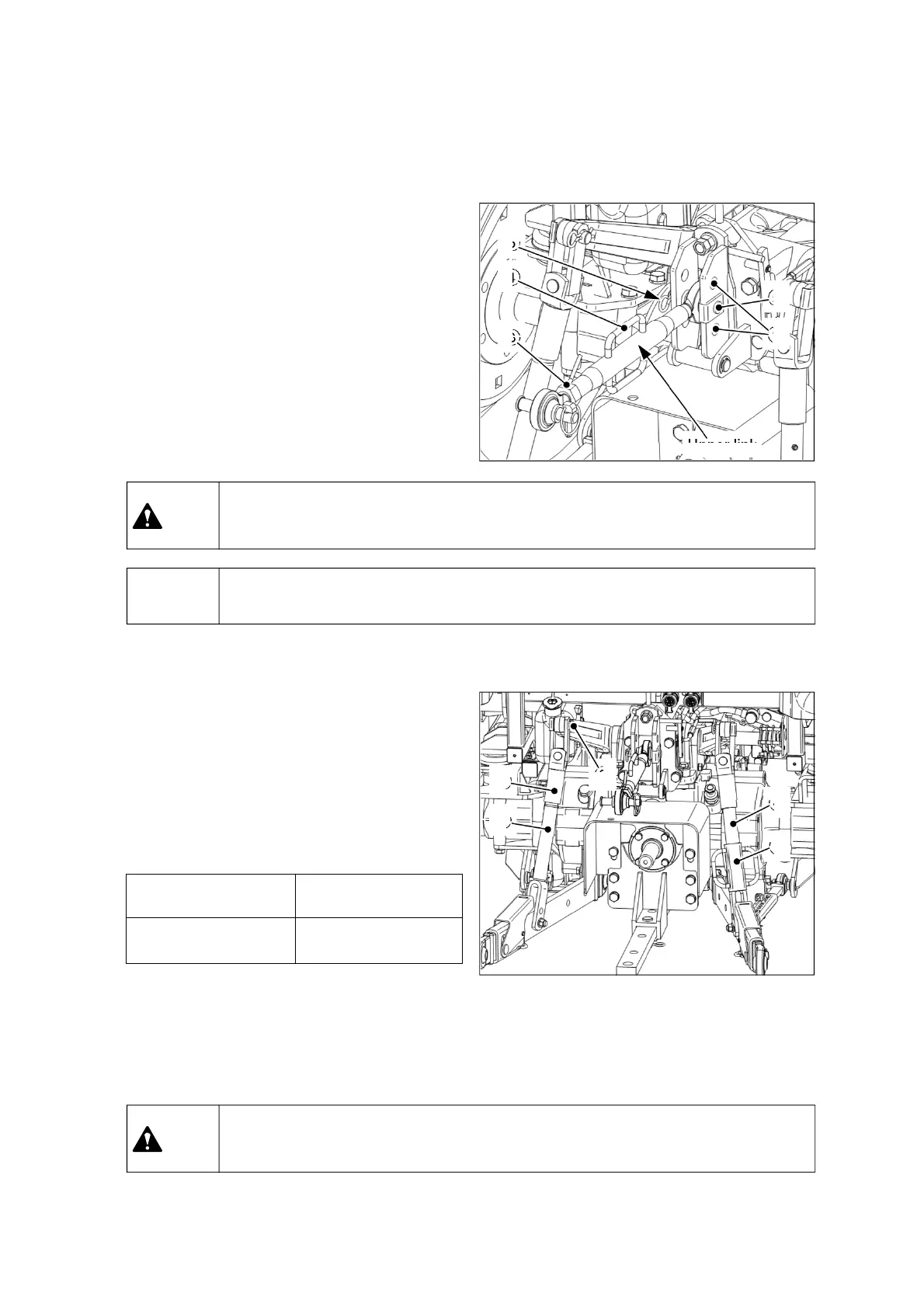

LS tractor MT335 User Manual

4 -21
Lift rod(LH) Lift rod(RH)
480~530 mm
(18.9 ~ 20.9in)
450~ 565 mm
(17.7 ~ 22.2in)
① Upper link installation and
adjustment
 Select a suitable attaching hole(2) depending on
the draft load of the implement. The upper hole
is more sensible than lower one for draft load
control. (optional)
 Adjust the length of the upper link with turning
the sleeve(4) after loosening locking nut (3).
 Fasten the locking nut(3).
 Adjustment range: 430~654mm (16.9~25.7 in)
② Adjustment of lift-rod (Left/Right)
 For lift rod (LH), remove the lift-rod pin(3) and
detach the upper side from the lift arm and turn
the upper side(1) left/right to adjust the length.
 For lift rod (RH), lift up the handle(5) and turn it
to the left or right to adjust the length. Lock the
lift rod handle(5) in place after adjusting.
 Adjustment range :
⑥
④
②
⑤
③
Upper link
⑤
④
①
②
▶ Do not adjust the length of the lift-rod over the maximum limit. It may cause fatal
injury or death by falling object.
Caution
▶ Insert snap-pin(6) firmly to prevent the upper link pin(5) from being escaped.
Notice
▶ Do not adjust the length of the upper link over the maximum limit. It may cause
fatal injury or death by falling object.
Caution
③
