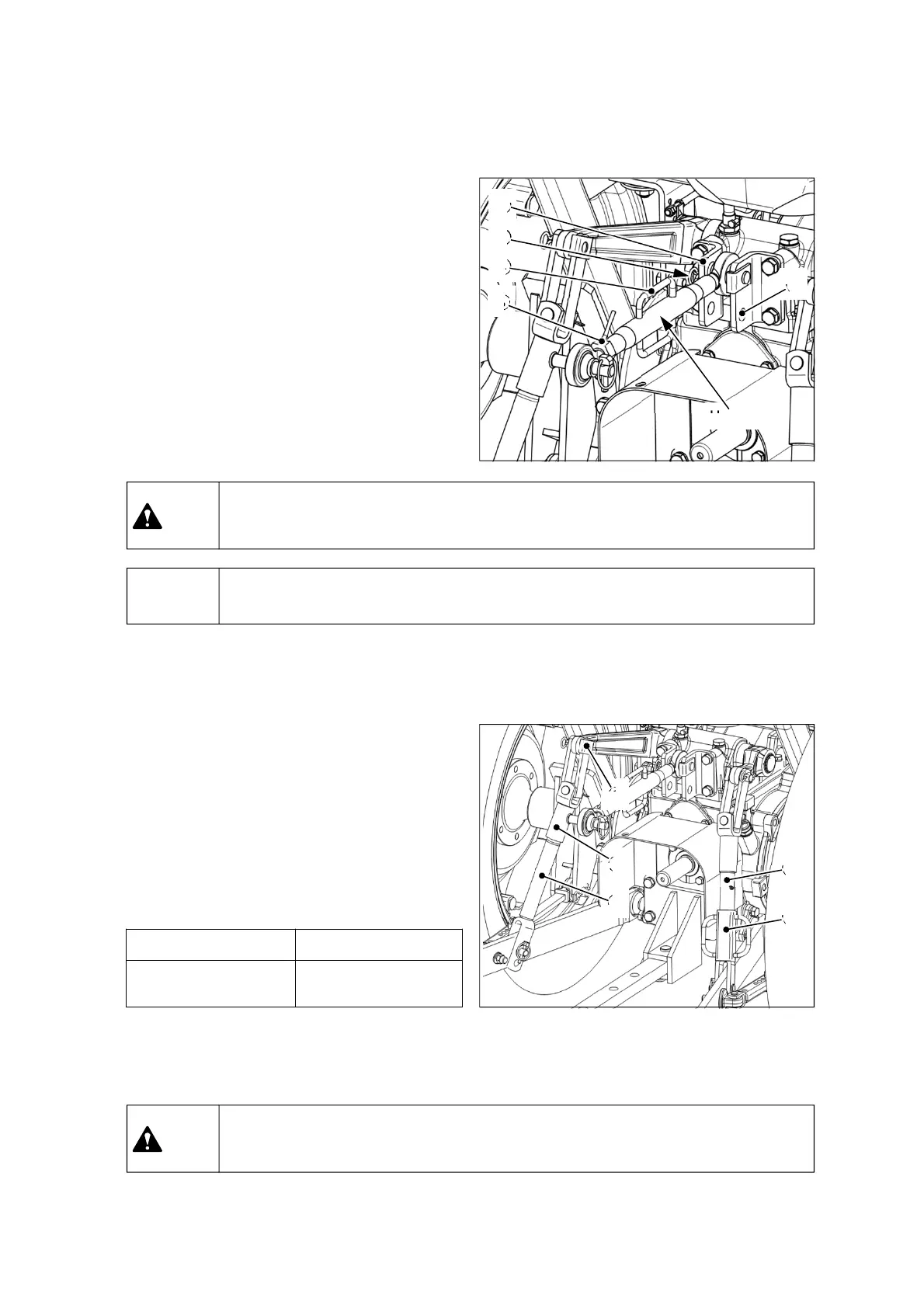

① Upper link installation and
adjustment
Select a suitable attaching hole on the top link
bracket(1) depending on the rear implement.
Adjust the length of the upper link with turning
the handle(4) after loosening locking nut(3).
After adjusting, fasten the locking nut(3).
Adjustment range:
CAT1 : 430~654mm (16.9~25.7 in)
CAT2 : 484~734mm (19.1~28.9 in)
② Adjustment of the lift rod’s length
(Left/ Right)
For lift rod (LH), remove the lift-rod pin(3) and
detach the upper side from the lift arm and
adjust the length by turning the upper side (1).
For lift rod (RH), lift up the handle(5) and turn it
to the clockwise to reduce the length. Otherwise,
the lift-rod is extracted. Lock the handle(5) in
place after adjusting.
Adjustment range:
③
▶ Do not adjust the length of the lift-rod over the maximum limit. It may cause fatal
injury or death by falling object.
Caution
▶ Insert snap-pin(6) firmly to prevent the upper link pin(5) from being escaped.
Notice
▶ Do not adjust the length of the upper link over the maximum limit. It may cause
fatal injury or death by falling object.
Caution
②
Upper link
④
Lift rod(LH) Lift rod(RH)
480~530 mm
(18.9 ~ 20.9in)
450~ 565 mm
(17.7 ~ 22.2in)
