LS tractor MT345E - Adjustment of Clutch Pedal Play (Mechanical Type)

5 -28

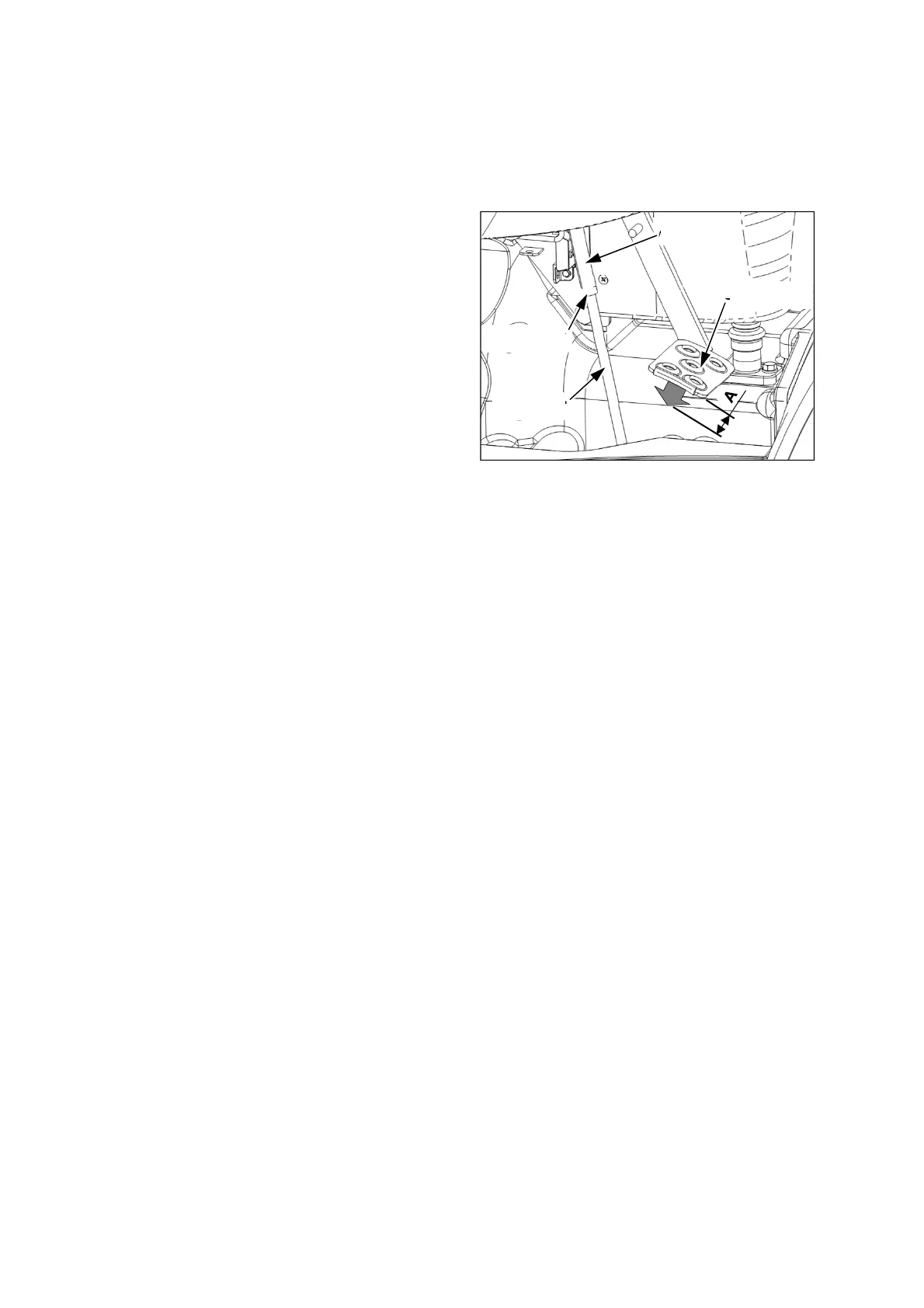

(10) Adjustment of Clutch pedal
play (Mechanical type)
 Normal distance (A) : 10~20mm (0.4~0.8 in.)
 If the distance of the clutch pedal play is over the
normal distance, adjust it as below.
1. Loosen the locking nut(s) and turn the adjuster
to the left/right direction.
2. If the adjuster is tightened, the pedal play will be
decreased, and if loosened, it will be increased.
3. After adjusting the pedal play, tighten the locking
nut(s).
4. Check if the clutch is disengaged completely.
Clutch pedal
Locking nut
Adjuster
Clutch rod
