4 -25

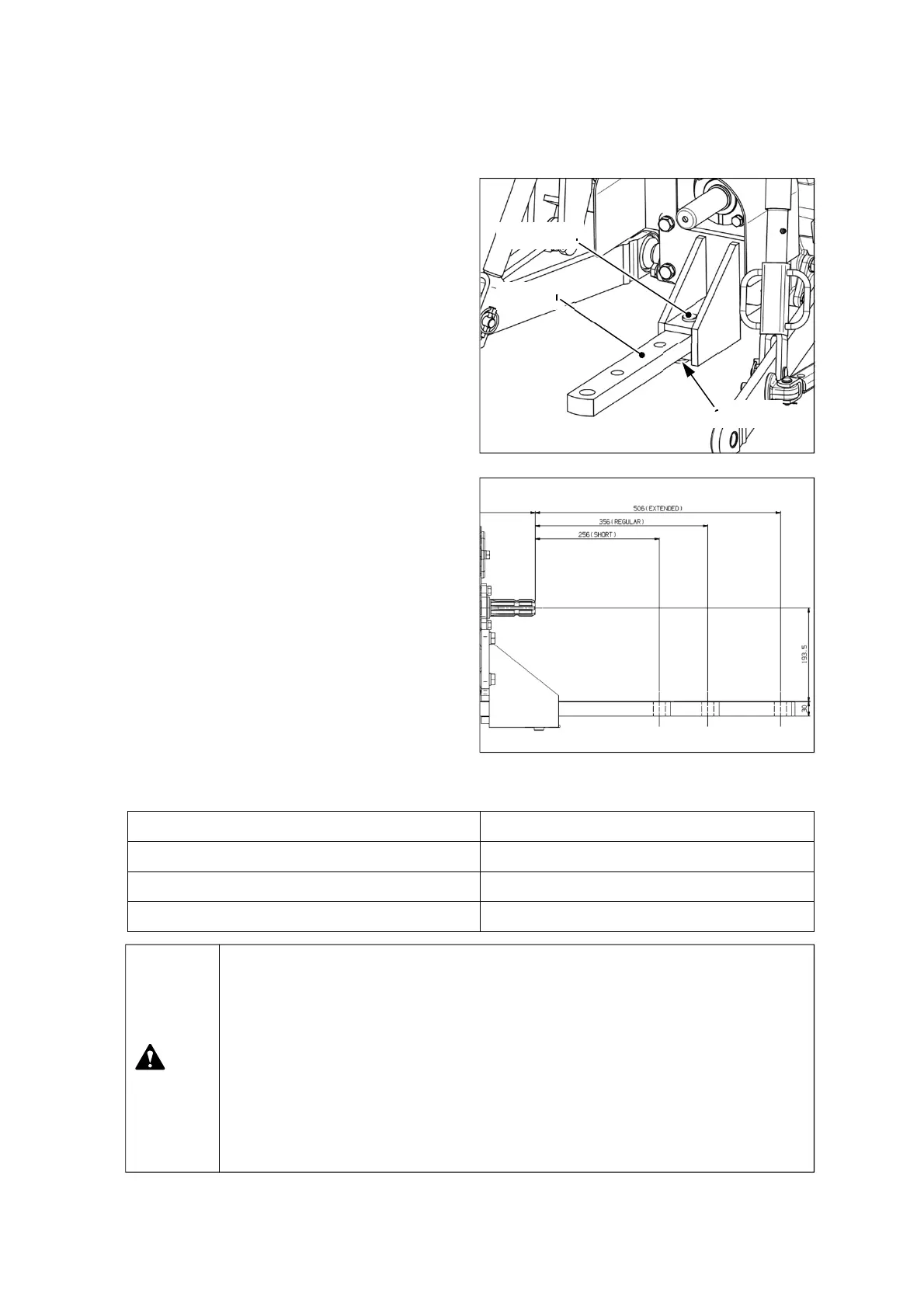

① Drawbar
It is used to connect a two-axle towed equipment.
It is available to adjust the length of the drawbar
after removing snap pin and locking pin in the
right figure. After adjusting, assemble the pins
firmly.
Vertical load :
350kg (772 lb) (at regular position)
450kg (992 lb) (at short position)
Horizontal load : 2800kg (6173 lb)
(3) Hitch and Drawbar (optional)
When attaching towed equipment, use an
approved hitch or drawbar. DO NOT use the 3-
point linkage or other parts. If so, the tractor
could be overturned.
When attaching/detaching towed equipment, be
sure to check the pins locked in place correctly.
DO NOT exceed the maximum permissible
vertical and horizontal load of the couplings.
Drawbar
Locking pin
Snap pin
▶ Vertical loads on the coupling point of the drawbars, it may vary depending on the
tire load rating. Consult your authorized local dealer.
▶ Use always the drawbar or hitch for pulling work. DO NOT use the 3-point linkage,
rear axle or other parts. If so, the tractor could be overturned.
▶ When attaching/detaching towed equipment, apply the parking brake and stop the
engine before applying the locking pins manually.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulation.
Caution
Drawbar
Unbraked towable mass N/A
Inertia-braked towable mass 2800kg (6173 lb)
Hydraulic & Pneumatic braked towable mass N/A
② Technically permissible maximum
towable mass(es)
The maximum permissible towable mass is
depending on the brake system type on the
towed equipment as below. Check the brake
system of your towed equipment.
To Next Page
