LS tractor MT345E

To Next Page

To Previous Page

6 -1

(Unit : mm)

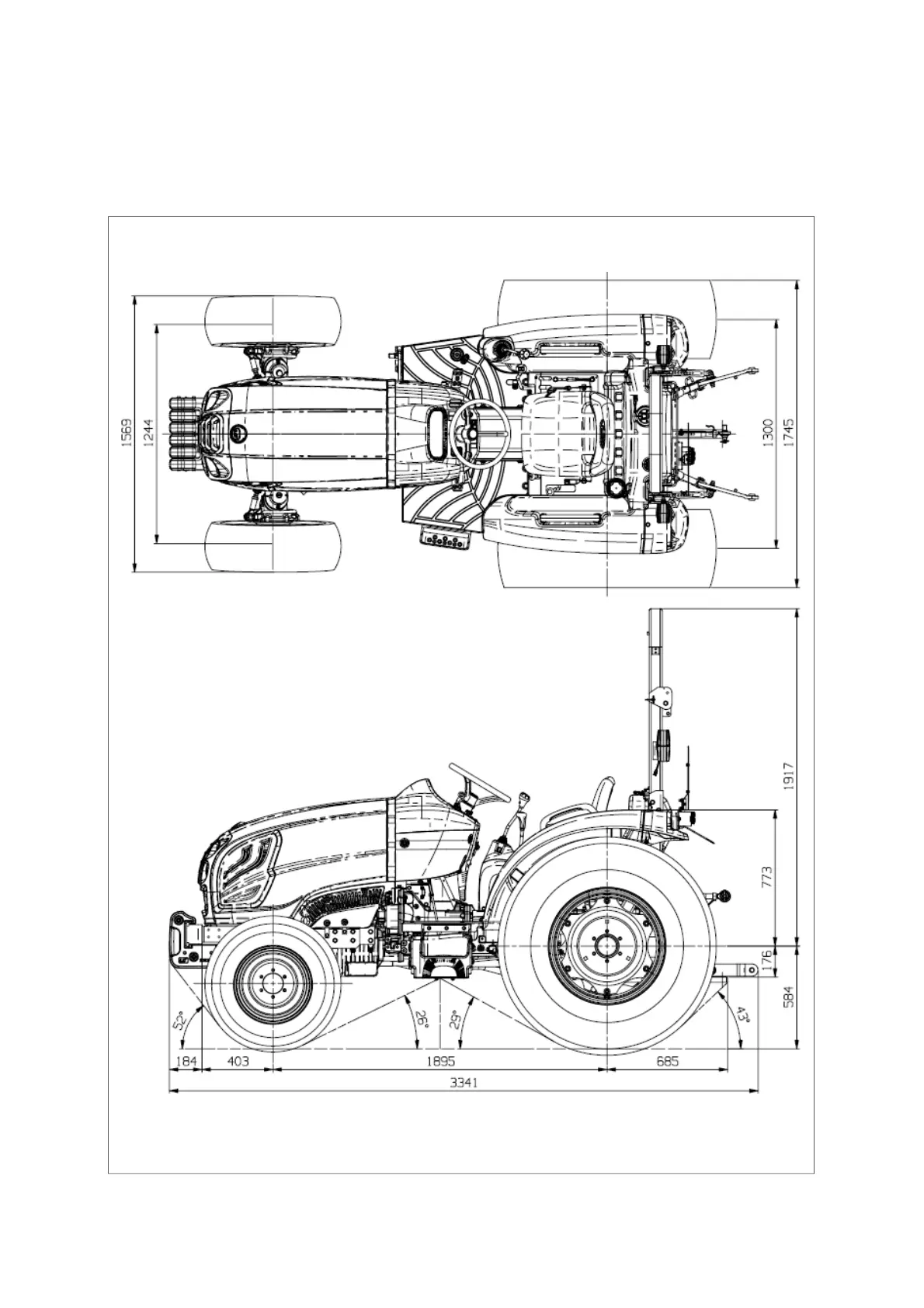

6. Dimension and Specification

- Roll-bar type

* Front tires : 10-16.5 6PR / Rear tires : 17.5L-24 6PR
