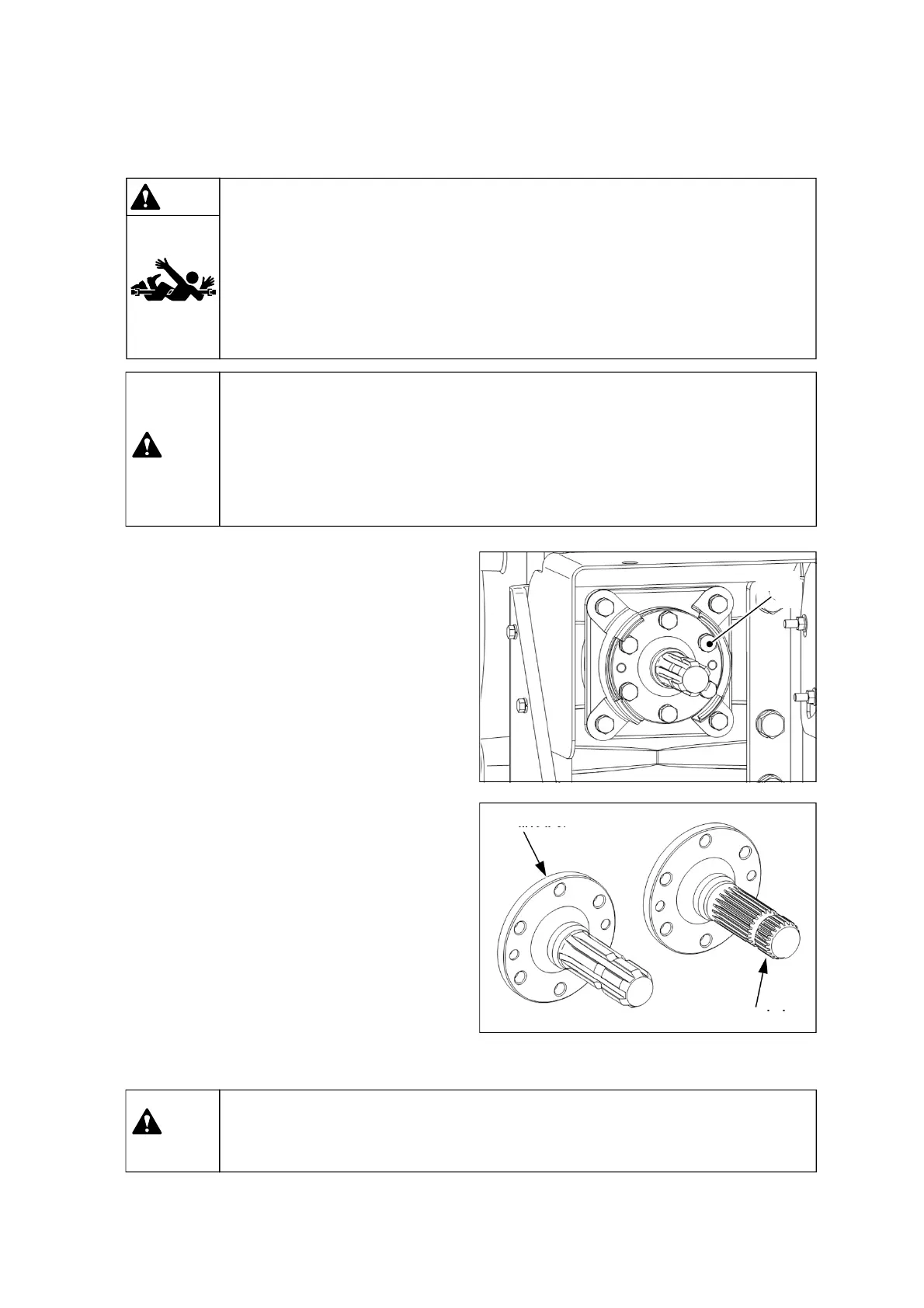

④ Changing the power take-off(PTO) shaft (optional, if provided)
Warning
Entanglement hazard !
▶ Before attaching or detaching equipment or changing the PTO shaft:
1. Apply the parking brake.
2. Move all controls to neutral and PTO switch to “OFF” position.
3. Stop the engine and remove the key.
4. Wait for the PTO shaft to stop turning before leaving the driver’s station.
Failure to comply could result in death or serious injury.
▶ Personal Protective Equipment (PPE) required.
When assembling, operating, or servicing the machine, wear protective clothing and
PPE necessary for the particular procedure. Some PPE that may be necessary
includes protective shoes, eye and/or face protection, hard hat, heavy gloves, filter
mask, and hearing protection.
Failure to comply could result in death or serious injury.
Warning
Remove the plastic protection cap.
Using a suitable tool, unscrew the 6-M10 bolts(1)
and remove the PTO shaft.
Make sure that the 2-parallel pins are in place.
Assemble the new PTO shaft and tighten the 6-
M10 bolts(1).
Assemble the plastic protection cap when not
using the PTO shaft.
Two splined PTO shafts are available (optional):
1. PTO shaft with 21 splines for 1000 RPM PTO.
2. PTO shaft with 6 splines for 540, 540E or 750
RPM PTO.
①
6 splined shaft
21 splined shaft
▶ Implements with a high power requirement should be operated with the 1000
rev/min PTO and it is obligatory to fit the PTO with 21 splines.
