4 -28
(6) Adjusting wheel track and tire replacement
If the front wheel track is adjusted, check the
clearances between tires and tractor body case
by case. If necessary, the steering angle must
be adjusted.
(refer to the chapter 4-5-(8) “Adjusting steering
angle” in this manual.)

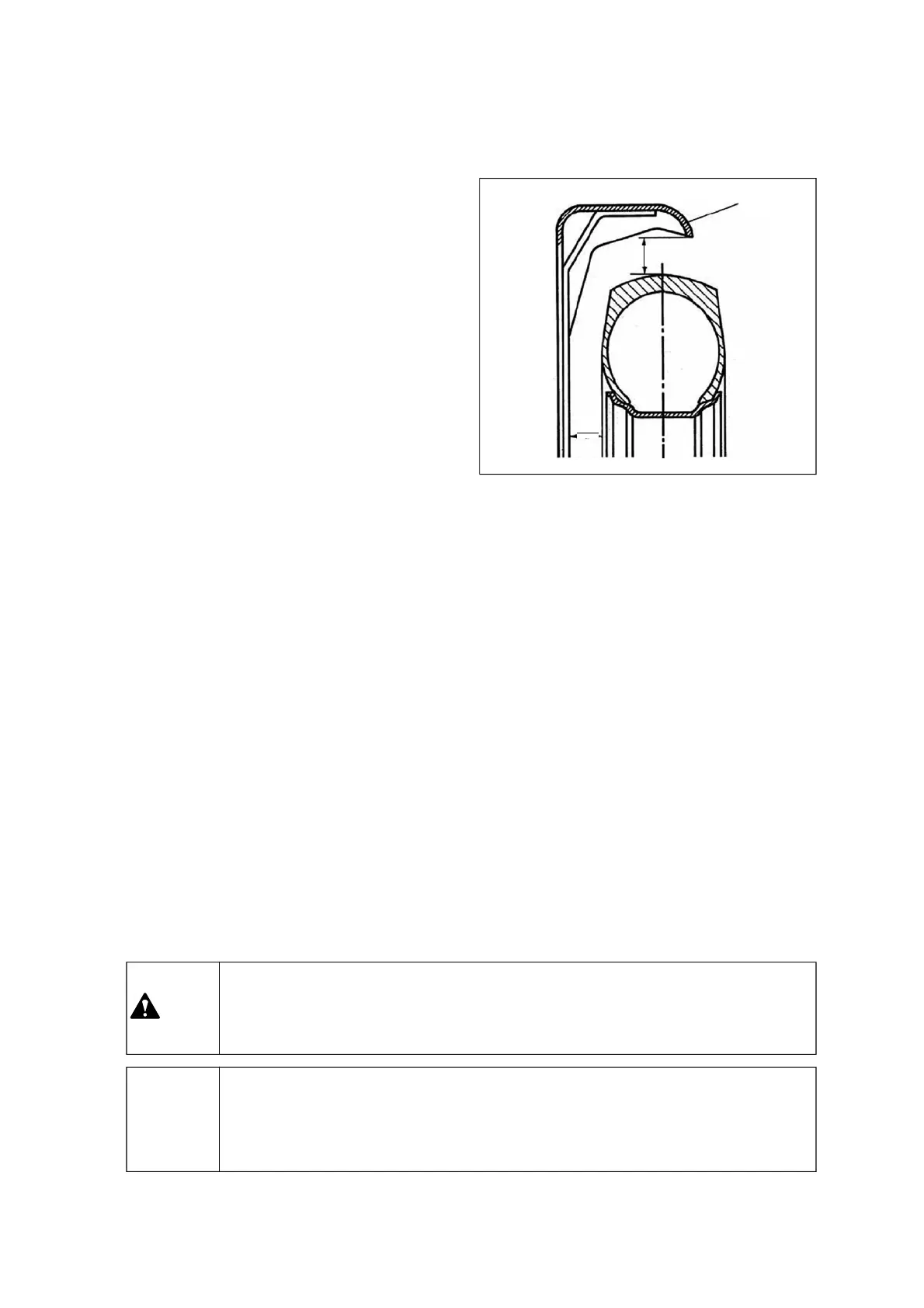

When adjusting rear wheel track, check the
radial and lateral clearance between rear tire
and tractor chassis as below.
- A : 60mm (2.4 in) (Minimum)
- B : 40mm (1.6 in) (Minimum)
Depending on rim or disk type, the front and rear
wheel tracks may vary. For the details, contact
your authorized local dealer.
“B”
“A”
FENDER
▶The tractor wheels are very heavy. PLEASE BE CAREFUL.
▶When removing the wheels, proceed with extreme caution, use a suitable hoist and
specific equipment to move the heavy parts.
Warning
① Front wheel track
- 9.5-24 6PR with rim & disk (W8x24)
- 11.2-24 8PR with rim & disk (W10x24)
② Rear wheel track
- 14.9-30 8PR with rim & disk (W12x30)
- 16.9-30 8PR with rim & disk (W15x30)
▶ When adjusting the wheel track, pay attention to the direction of tire lugs. For
agricultural tires, if it shows “/\” shape when looked behind, it is correct.
▶ Actual settings may vary depending on the brand of the rim and type of tire.
Notice
To Next Page
