LS tractor XR4140 - ESC Main Switch; ESC Speed Up;Down Switch

3 -30
 This switch is used to enable the Engine Speed
Cruise Control(ESC) function.
 If pressing the ESC main switch from position 0
to position 1 (Off –> Ready),
- ESC indicator on the instrument panel will blink.
- Engine speed stored on ECU will be displayed
on the LCD panel.
 If pressing the ESC main switch from position 1
to position 2 (Ready –> Resume),
① (if pressing below 2 second) – ESC
indicator will be ON and engine speed cruise
control (ESC) will begin.
② (if pressing over 2 second) – current engine
speed will be stored on ECU and the stored
engine speed will blink 3 times on the LCD panel.
 To exit the ESC control,
-. Press the lower side (“Off position”) of the
ESC main switch or
-. Press down the brake pedals.

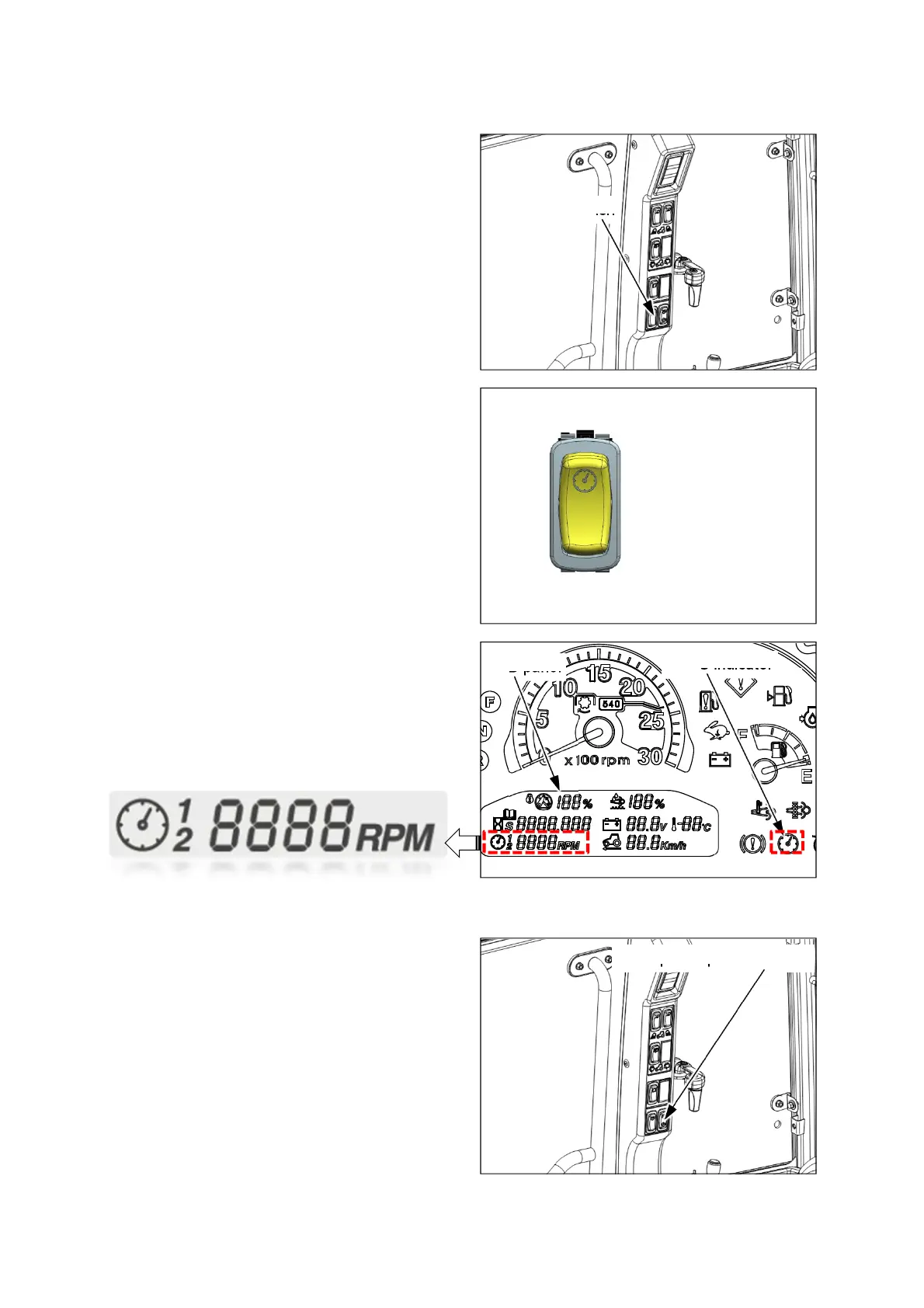

(10) ESC main switch
ESC main switch
• Position 2 : Resume
• Position 1 : Ready
• Position 0 : Off
ESCC indicator
LCD panel
 This switch is used to adjust the engine speed
for ESC when the ESC is working.
 If pressing the upper/lower side of the switch, the
engine speed will be;
- Upper side: Increased.
- Lower side: Decreased.
(11) ESC speed up/down switch
ESC speed up/down switch
