LS tractor XR4140 - Throttle Pedal (Mechanical); Clutch Pedal (Mechanical)

3 -21

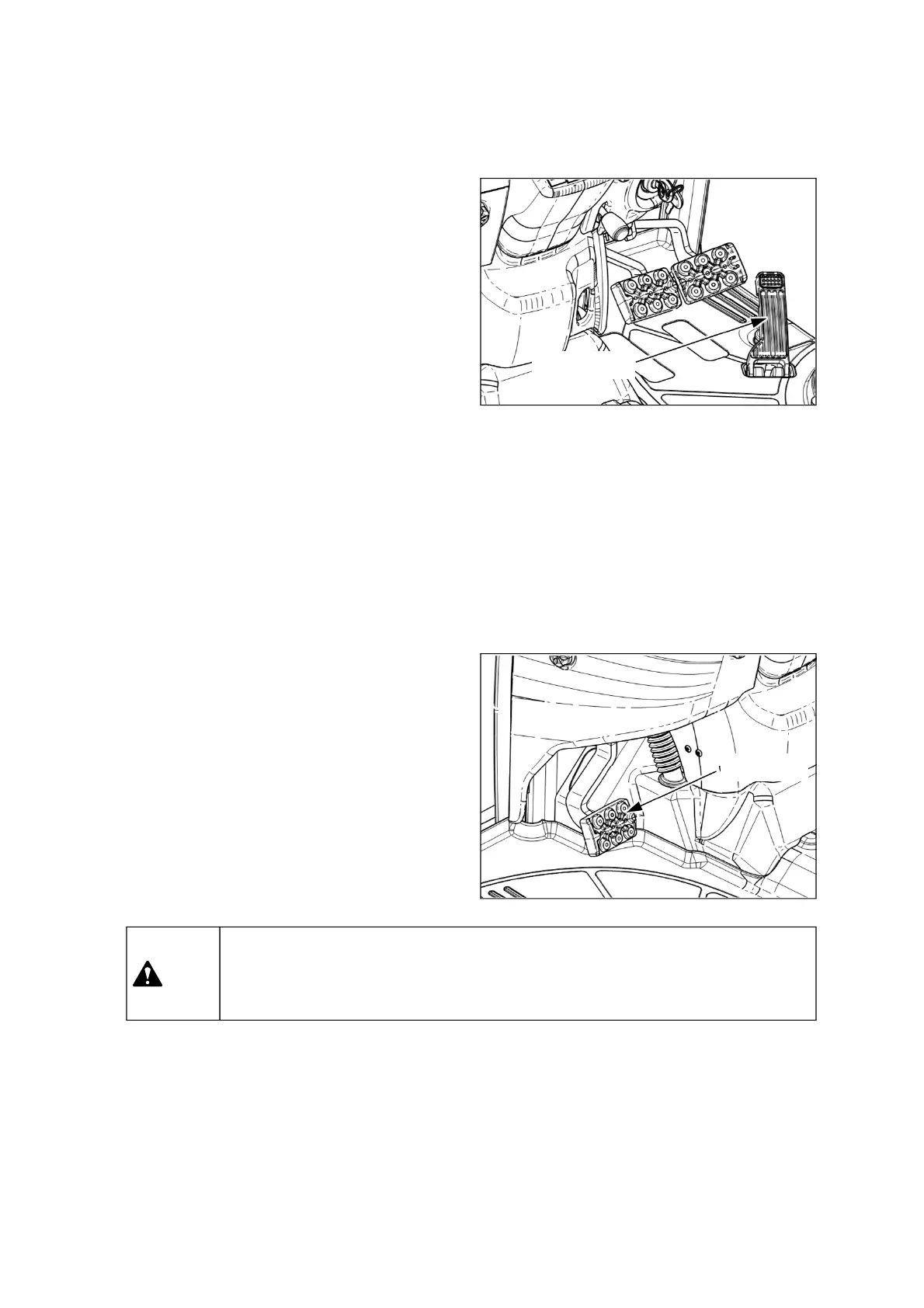

(13) Throttle pedal (Mechanical)
 This pedal is used to control engine speed when
running on the road.
 When using the Throttle pedal, the throttle lever
must be placed on the Low speed position.
 An electronic control sensor is attached on this
pedal. If there is an error related to this sensor
while the engine is running, the engine speed
will be fixed to 1500 rev/min, so called LIMP
HOME mode. Contact your authorized local
dealer.
Throttle pedal
(14) Clutch pedal (Mechanical)
 This is used to engage or disengage the main
transmission clutch for starting engine or shifting
transmission gears.
 Depress the clutch pedal quickly and fully, and
release it slowly.
 When depressing the clutch pedal, if the PTO
mode switch is placed on the MANUAL position,
the PTO shaft will rotate regardless of the clutch
pedal, and if the switch is placed on the AUTO
position, the PTO shaft will be stopped.
Clutch pedal
▶ DO NOT ride your foot on the clutch pedal while driving.
▶ As a start safety switch is installed for the operator’s safety, depress the clutch
pedal fully for starting engine.
Caution
