LS tractor XR4140 - Belt Tension Adjustment; Cleaning and Replacing Cabin Air Filters

6 -4
(5) Cleaning and replacing cabin
air filters
 Check, clean and replace the cabin air filters
periodically after referring to the chapter 5 in this
manual.
 See chapter 5-7-(8), “Every 50 hour check”
 See chapter 5-10-(5), “Every 500 hour check”
Cabin
air filters
Knobs
Filter
cover

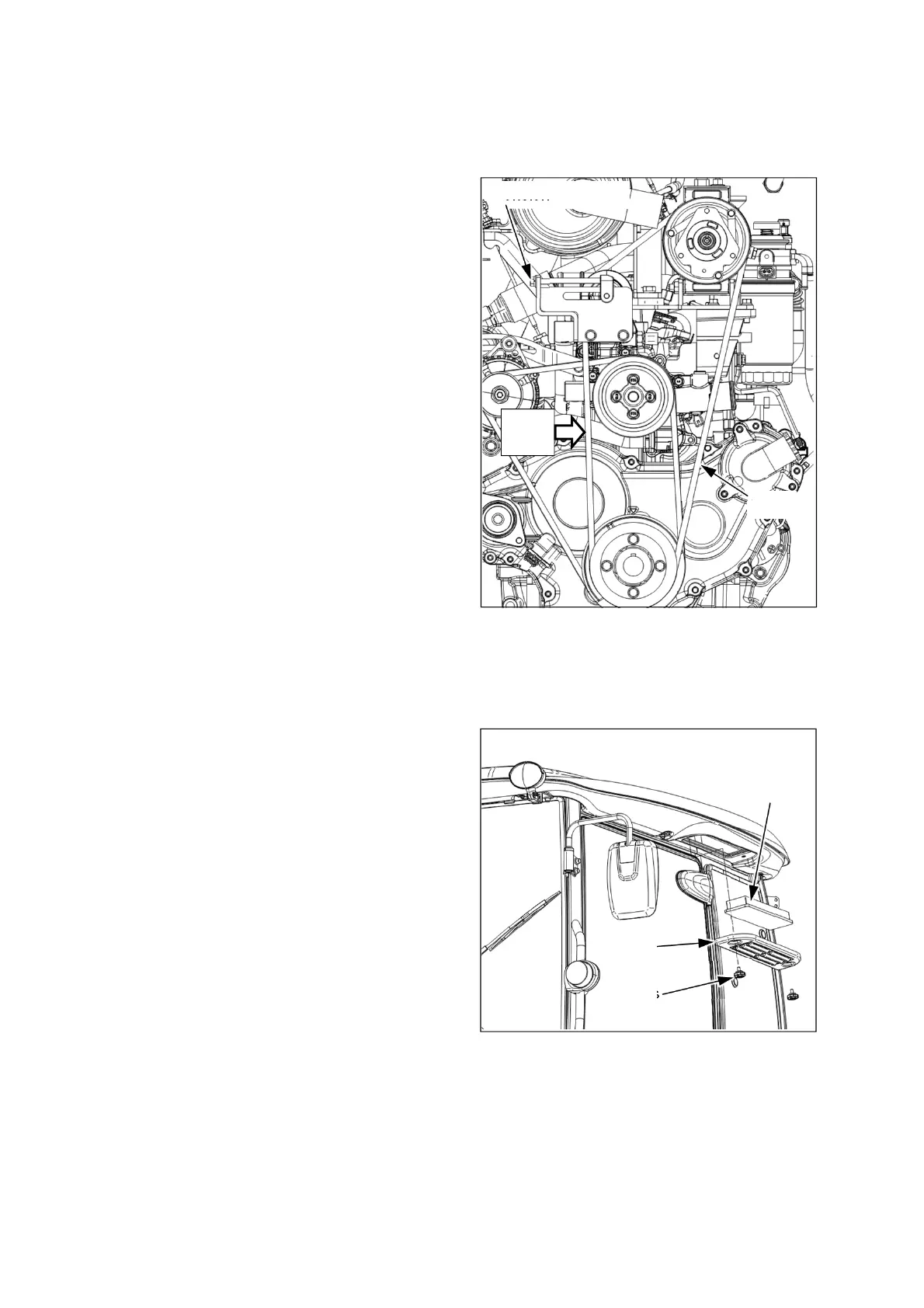

(4) Belt tension adjustment
 Check if the belt tension is suitable and If
necessary, adjust the belt tension with the
tension adjust bolt.
 Tension : approx. 10~12 mm (0.4~0.5 in.)
(when pressed by 50N (11 lb))
 Check the damaged part of the belt and if
necessary, replace it with a new one after
checking the pulley alignment.
Tension adjust bolt
V-belt
Check
point
