Chapter 6 - Parameter Description [I/O]
135
[AUTO B]
This mode can be also used to program up to 8 different
steps as Auto A. However, to switch from one step to
another, an external contact closure set to ‘Go step’ is
required.

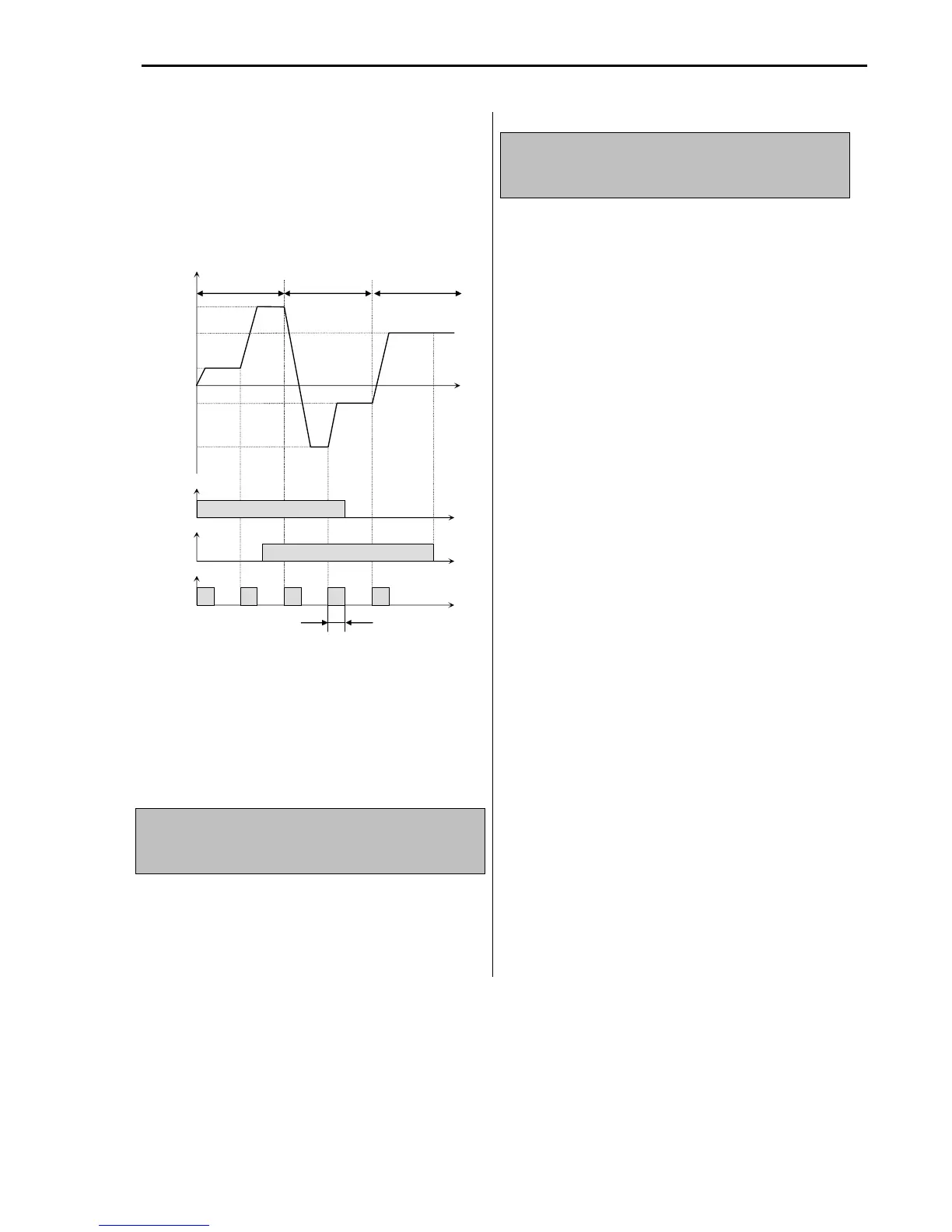

[Example of ‘Auto-B’ operation]
☞ Note: When a new sequence is selected during a
sequence operating, the new sequence starts after the
current sequence is finished.
I/O-53 ~ I/O-84: Frequency, Transient Time,
Steady Speed Time, Motor Direction setting of
each Step and Sequence
These parameter codes set the frequency, transient time,
steady speed time, and motor direction. These codes
are displayed according to the sequence number and
steps.
I/O-85~ I/O 97: Step frequecy 8, 9, 10, 11, 12, 13,
14, 15, Multi-function input terminal RST, BX,
JOG. FX, RX Define
See the description pages of I/O 21~39 for more details.
P1
-
CM
‘SEQ-L’
ON
Output Frequency
Time
ON
Time
ON
Time
P2
-
CM
‘SEQ-M’
P3
-
CM
‘Go step’
ON
ON
ON
ON
Minimum 100msec
SEQ1 / 2F
SEQ2 / 2F
SEQ1 / 1F
SEQ3 / 2F
SEQ3 / 1F
Sequence 1
Sequence 3
Sequence 2
Time
