Chapter 2. Installing the 9750 SATA+SAS Controller Card

18 LSI 3ware 9750 SATA+SAS RAID Controller Card Installation Guide

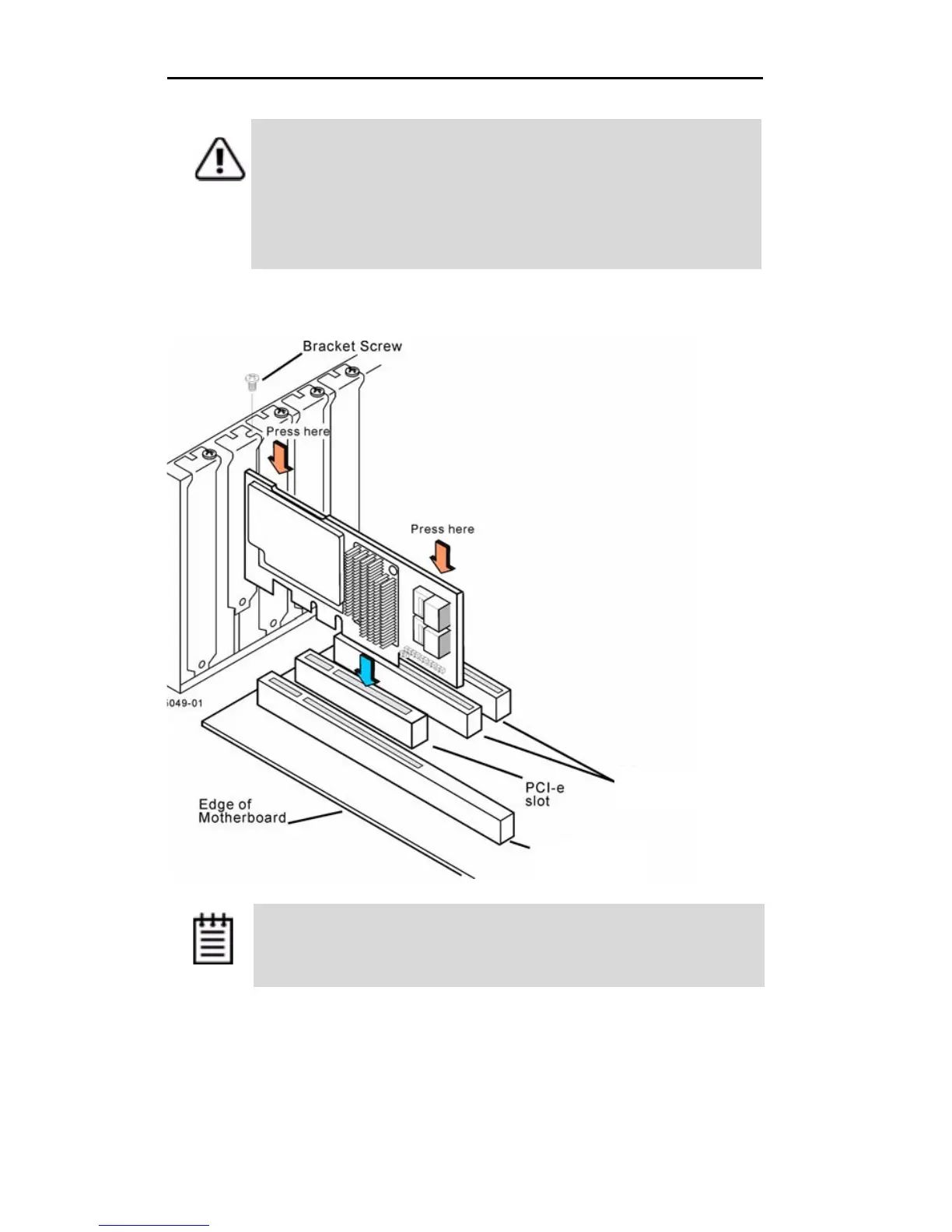

Figure 9. Inserting Controller Into PCI Express Slot

8 Check that the 3ware SATA+SAS controller’s metal bracket

covers the hole in the case and secure the bracket with the

screw that was used to secure the filler bracket in step 5.

Warning! Make sure you select a PCI Express (PCI-e) slot,

not a PCI or PCI-X slot, see Figure 9. Inserting a 9750 into a

PCI or PCI-X slot could potentially damage the board or

system, and void the warranty of either the 9750 or the

motherboard. If you are uncertain about which slot to use, see

the documentation for your system’s motherboard.

Note: The configuration of the enclosure may not be the

same as shown Figure 9.

PCI slot

DO NOT USE

PCI-X slot

DO NOT USE
