LSI GS820 User Manual

ISTALLATIO
ISTALLATIO
21
21
2.7
2.7
Wireless Wind Speed
Wireless Wind Speed
Sensor GS020
Sensor GS020
1. Remove the mounting rod from the wind speed
sensor.
2. Determine the mounting rod position.
a. Install the mounting rod on the same side
of the boom as the cabin mounted
display, perpendicular to the boom, and
at the highest point possible.
b. The wind speed sensor must pivot freely
on the mounting rod at all boom angles.
c. The wind cups must be fully exposed to
the wind and spin freely at all boom
angles.
d. There should be a clear and unobstructed
line of sight between the wind speed
sensor antenna and the cabin mounted
display unit.
e. The transmitter antenna should not
contact any metal object.
3. Weld or screw the mounting rod to the boom at
the selected position.
4. Re-position the wind speed sensor on the
mounting rod, add the washer and secure with
the cotter pin.
Mounting rod

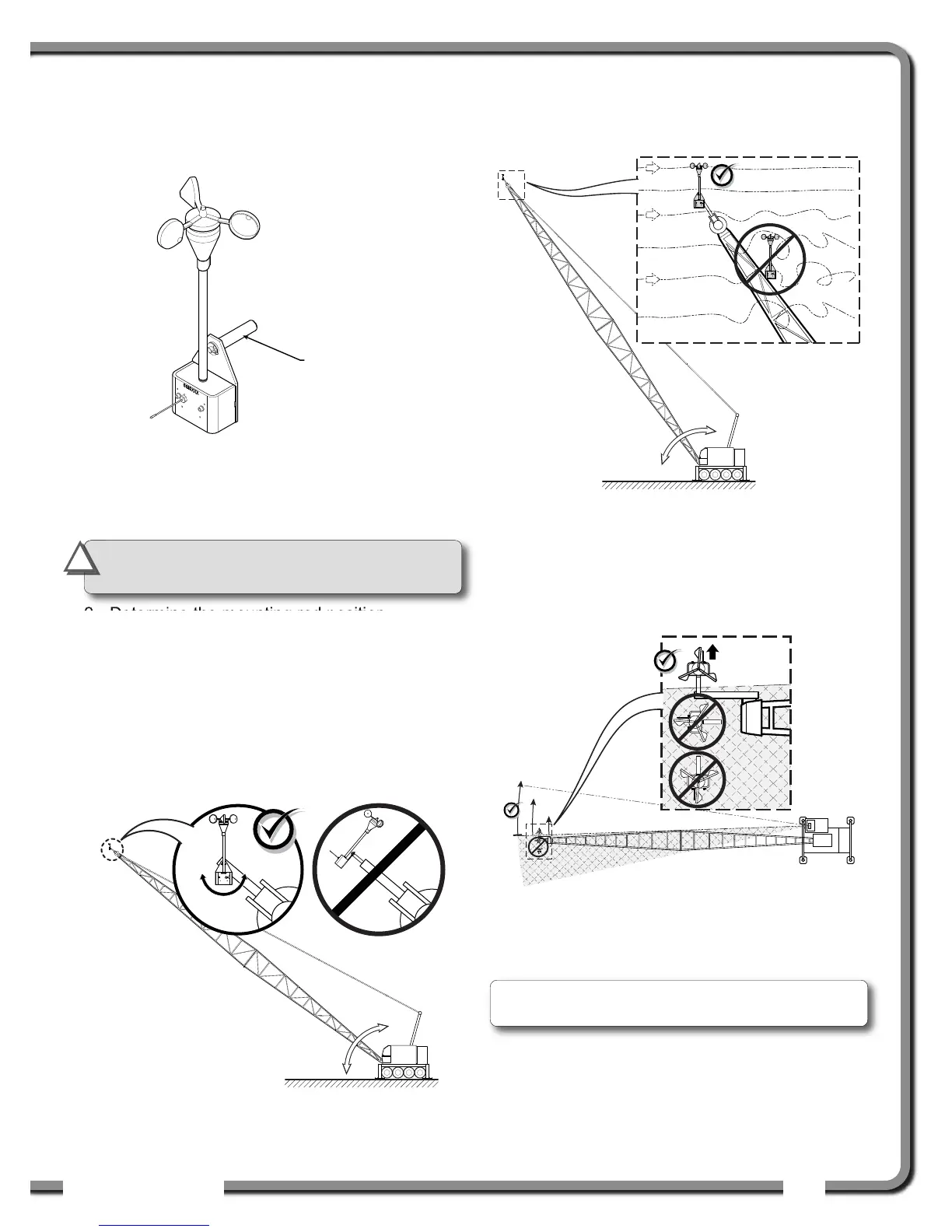

Figure: GS020 wireless wind speed sensor
Figure: Swivel orientation
Figure: Wind clearance
Figure: Radio line of sight - Crane top view
IMPORTANT! Do not weld in proximity to
LSI
LSI sensor/transmitters.
!
!
Note: Angle iron can be used to extend the
mounting position to be clear of the boom top.
