Load pins, line riding tensiometers and compression
cells must be calibrated at installation and every time
thereafter the installation, the load sensor or the load
transmitter is changed.
This procedure requires two known weights. The
first (light) weight should be about 10% of load
sensor capacity and not less than 5%. The second
(heavy) weight should be over 50% of capacity, and
absolutely not less than 25%.
1. Go to menu 4) I
NSTALLATION and select 4B)
SENSOR CALIBRATION.
2. Enter the user password, press Enter and
select 4B1) A
UTOMATIC CALIBRATION WIZARD.
3. Use Up and Down to select the load sensor,
and then press Enter to confirm communication
with the sensor is possible and to start the
wizard.
4. Use Up and Down to adjust the actual parts of
line on the load sensor, and then press Enter
to confirm.
5. Note the units that will be used during the
calibration wizard, and then press Enter.
6. Lift the first (lighter) known load, use Up and
Down to adjust the load value displayed to
equal the actual known load lifted, and then
press Enter.
7. Lower the first load, lift the second (heavier)
known load, use Up and Down to adjust the
load value displayed to equal the actual known
load lifted, and then press Enter.
8. Note the new trim and scale values.
9. Press Enter to send the new calibration to the
load sensor.
10.Press Exit to return to the operation display.

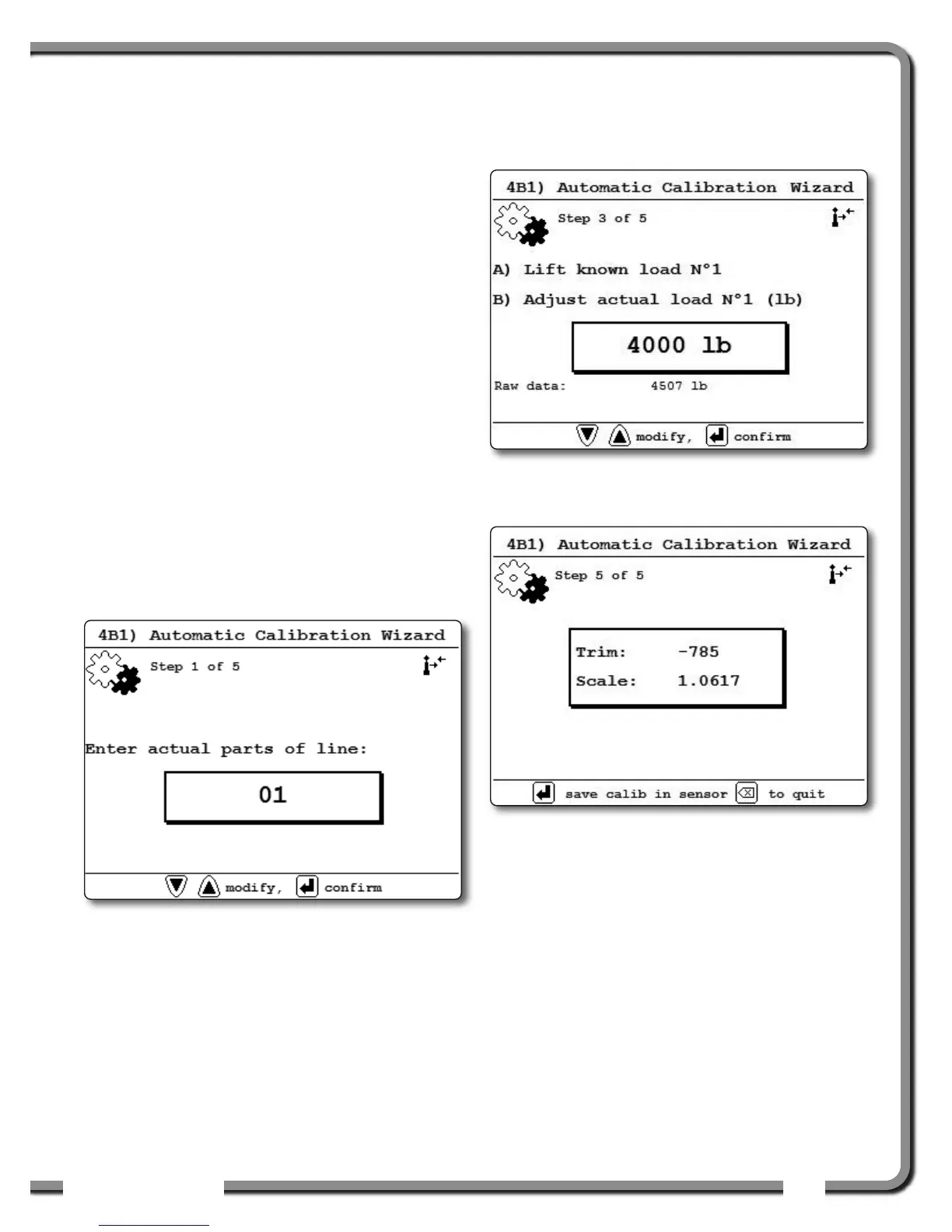

Figure: The automatic load calibration wizard, adjust the actual
parts of line
Figure: The automatic load calibration wizard, adjust the load
Figure: The automatic load calibration wizard, trim and scale
values
