LSI MegaRAID SAS User Manual

LSI Corporation
- 52 -
6Gb/s MegaRAID SAS RAID Controllers User Guide
August 2012
Chapter 3: MegaRAID SAS RAID Controller Characteristics
6Gb/s MegaRAID SAS RAID Controller Family

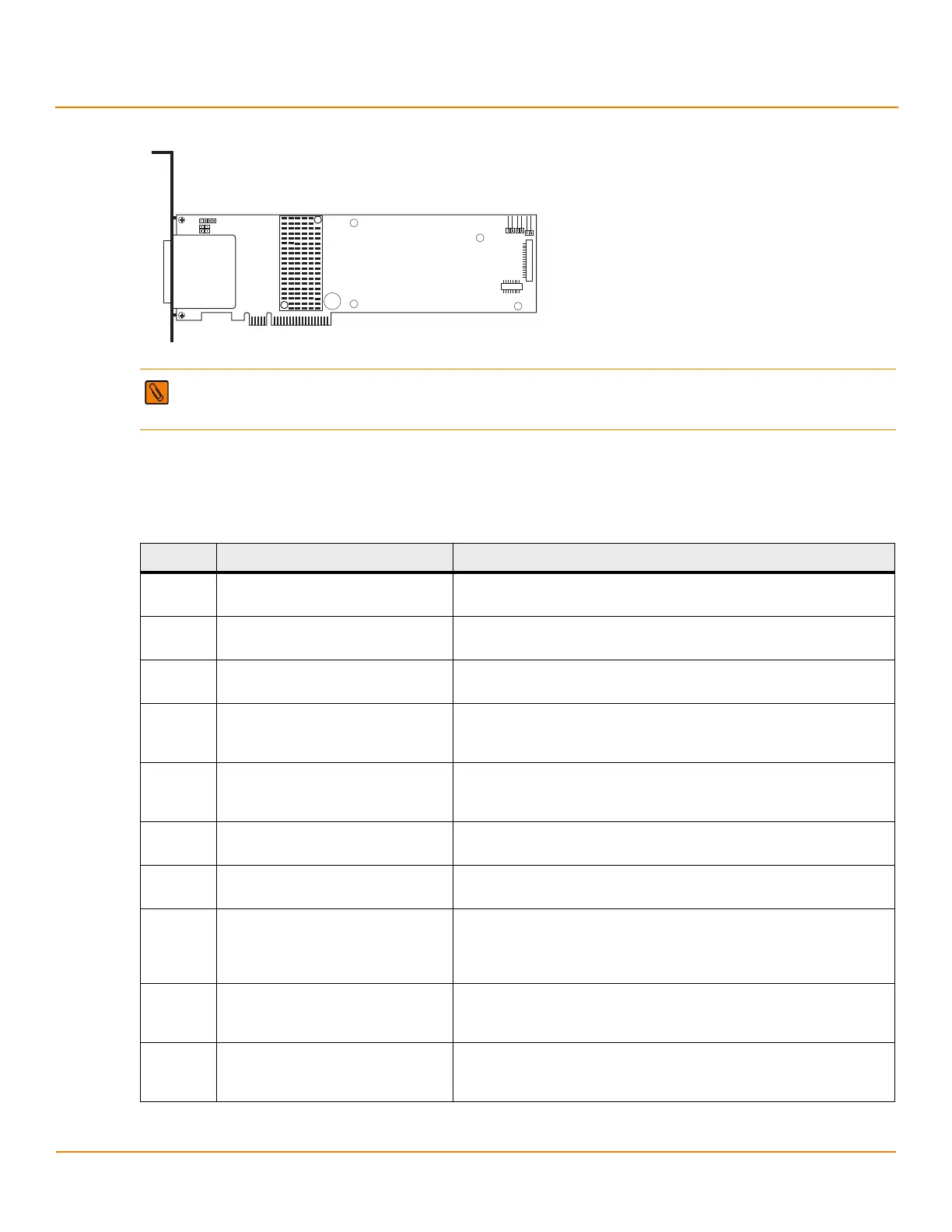

Figure 19 Card Layout for the MegaRAID SAS 9280-8e RAID Controller
The following table describes the jumpers and connectors on the MegaRAID SAS 9280-8e RAID controller and the
MegaRAID SAS 9280DE-8e RAID controller.
NOTE Connectors J6A1, J6A2, and J6A3 are behind the LSIiBBU07 unit when the iBBU is installed, but they are
still accessible.
Table 13 MegaRAID SAS 9280-8e and MegaRAID SAS 9280DE-8e RAID Controllers – Connectors
Connector Description Comments
J1A1 Universal Asynchronous Receiver/
Transmitter (UART) debugging
4-pin connector
Reserved for LSI use.
J1A2 Test header 2-pin connector
Reserved for LSI use.
J1A3 Set Factory Defaults connector 2-pin connector
Reserved for LSI use.
J1A4 x4 SAS Ports 4 to 7 SFF-8088 x4 external mini SAS connector
Connects the cables from the controller to SAS drives or SATA drives or a
SAS expander.
J1B1 x4 SAS Ports 0 to 3 SFF-8088 x4 external mini SAS connector
Connects the cables from the controller to SAS drives or SATA drives or a
SAS expander.
J6A1 Global Drive Fault LED header 2-pin connector
Connects to an LED that indicates whether a drive is in a fault condition.
J6A2 SAS Activity LED header 2-pin connector
Connects to an LED that indicates drive activity.
J6A3 Write-Pending Indicator (dirty cache)
LED connector
2-pin connector
Connects to an LED that indicates when the data in the cache has yet to
be written to the storage devices. Used when the write-back feature
is enabled.
J6B1 Remote Battery Backup Unit connector 20-pin connector
Connects an optional remote LSIiBBU07 intelligent Battery Backup Unit or
an LSIiBBU08 unit to the RAID controller.
J6B2 Battery Backup Unit connector 20-pin connector
Connects an LSIiBBU07 intelligent Battery Backup Unit or an LSIiBBU08 unit
directly to the RAID controller.
85040-00
J6B2
J6A1
J1A2
J1A1
J1A4
J1B1
J6B1
J1A3
Port
0-3
Port
4-7
J6A2
J6A3

LSI MegaRAID SAS Specifications

General

RAID Levels	0, 1, 5
Ports	8
Form Factor	Low Profile
Operating Systems Supported	Windows, Linux, VMware
SAS Ports	8
BBU Support	Optional
Operating Temperature	0°C to 55°C
