2.1 Installation Precautions
CAUTION

Handle the inverter with care to prevent damage to the plastic components. Do not
hold the inverter by the front cover. It may fall off.
 Install the inverter in a place where it is immune to vibration (5.9 m/s
2
or less). The
inverter is under great influence of ambient temperature.
 Install in a location where temperature is within the permissible range (-10~50°C).
Maximum Surrounding Air Temperature is 50°C. Models SV004iC5-1, SV004iC5-
1F, SV008iC5-1, and SV008iC5-1F can be used in Ambient 40°C. (UL 508C)

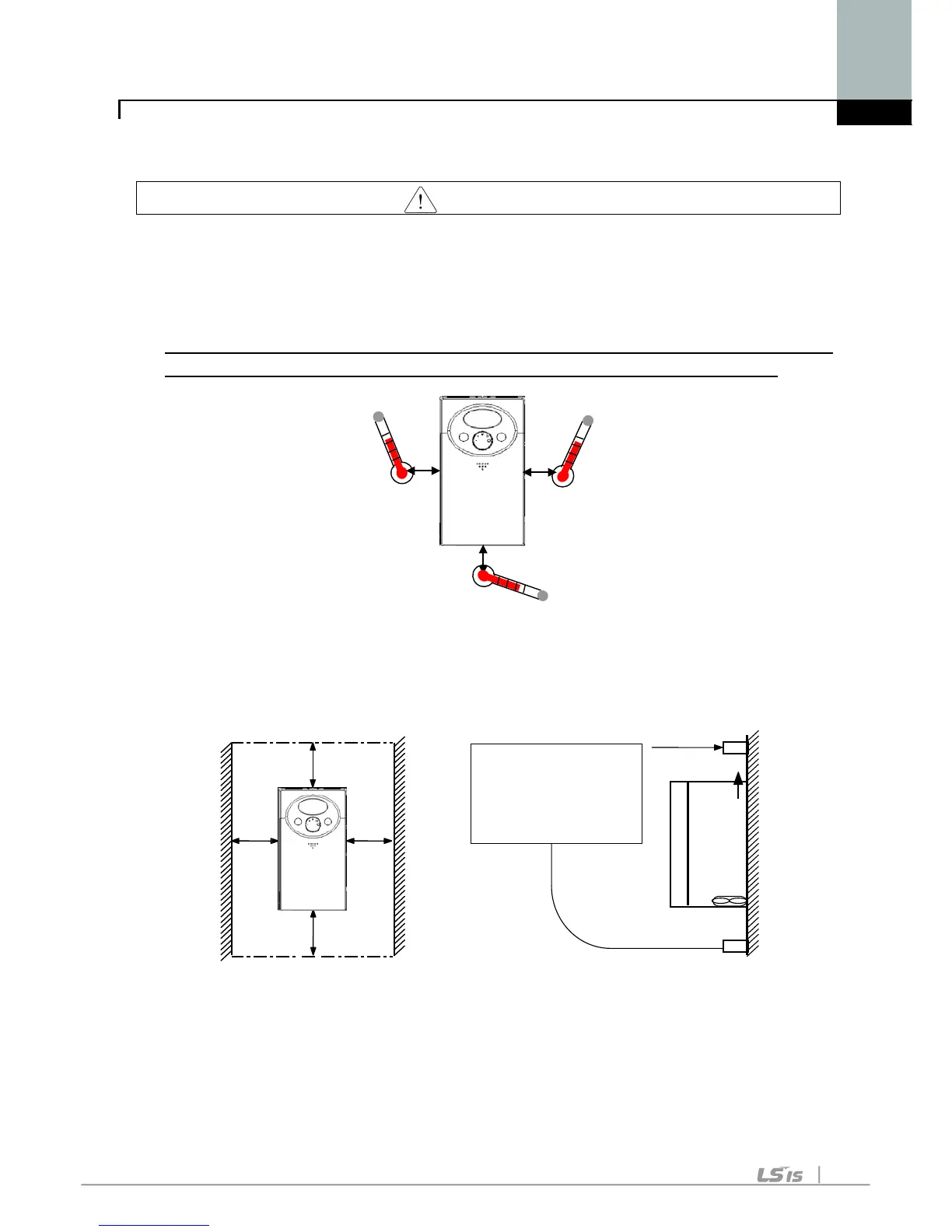

<Ambient Temp Checking Location>
 The inverter will be very hot during operation. Install it on a non-combustible surface.
 Mount the inverter on a flat, vertical and level surface. Inverter orientation must be
vertical (top up) for proper heat dissipation. Also leave sufficient clearances around
the inverter.
 Protect from moisture and direct sunlight.
 Do not install the inverter in any environment where it is exposed to waterdrops, oil
mist, dust, etc. Install the inverter in a clean place or inside a “totally enclosed” panel
which does not accept any suspended matter.
Ventilating fan
Cooling air
Leave space enough
to allow cooled air
flowing easily
between wiring duct
and the unit
Min.
5cm
Min. 10 cm
Min.
5cm
Min. 10 cm
5cm
5cm
5cm
