5.5 Parameter Setting Method
 Changing parameter value in Drive group

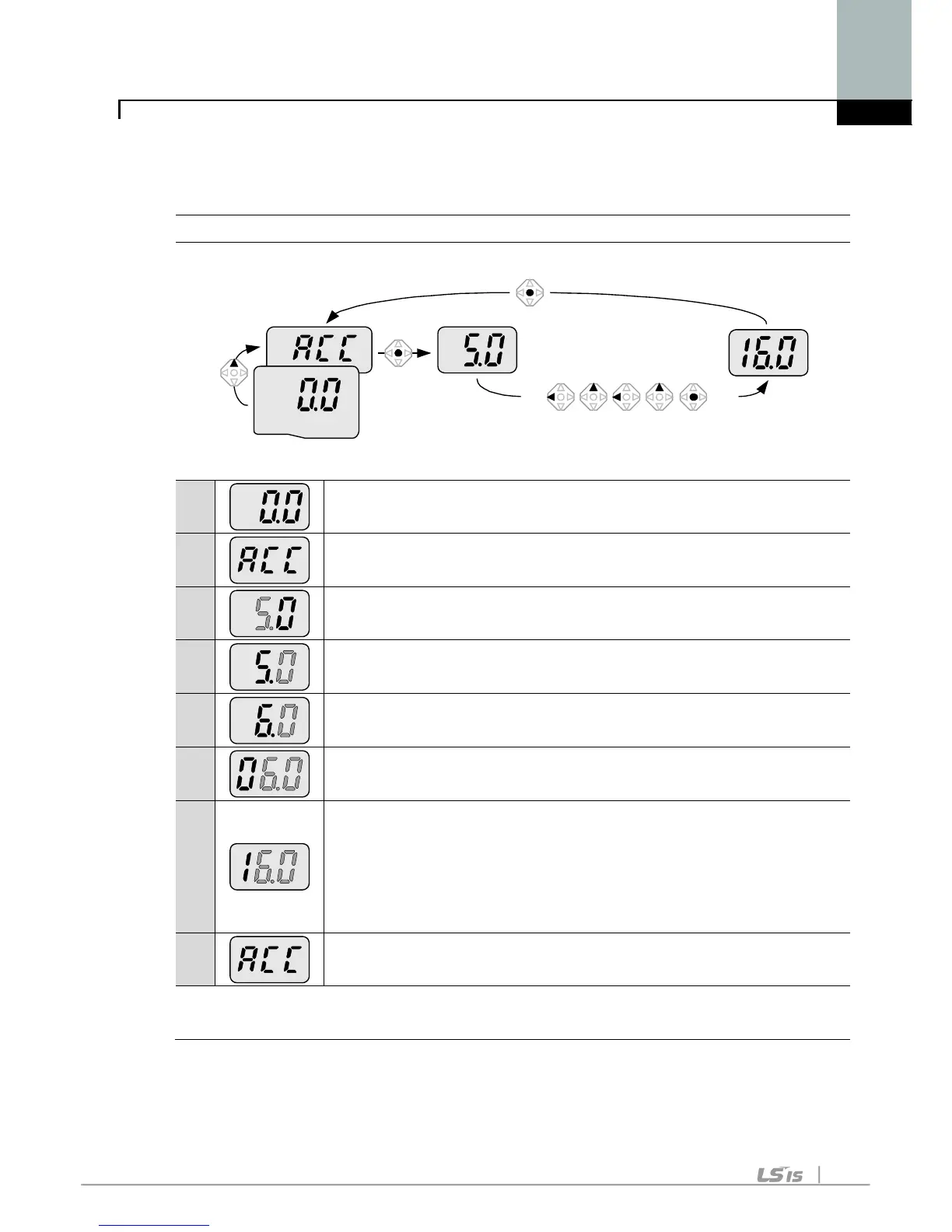

When changing ACC time from 5.0 sec to 16.0
Drive group
1
-. In the first code “0.0”, press the Up () key once to go to
the second code.
2
-. ACC [Accel time] is displayed.
-. Press the Prog / Ent key (

) once.
3
-. Preset value is 5.0, and the cursor is in the digit 0.
-. Press the Left () key once to move the cursor to the left.
4
-. The digit 5 in 5.0 is active. Then press the Up () key
once.
5
-. The value is increased to 6.0
-. Press the Left () key to move the cursor to the left.
6
-. 0.60 is displayed. The first 0 in 0.60 is active.
-. Press the Up (

) key once.
7
-. 16.0 is set.
-. Press the Prog / Ent () key once.
-. 16.0 is blinking.
-. Press the Prog / Ent () key once again to return to the
parameter name.
8
-. ACC is displayed. Accel time is changed from 5.0 to 16.0
sec.
♣
In step 7, pressing the Left () or Right () key while 16.0 is blinking
will disable the setting.
♣Note) Pressing the Left ()/ Right () /Up () /Down () key while cursor is
blinking will cancel the parameter value change.
