5. Programming Keypad
5-1
5. Programming Keypad

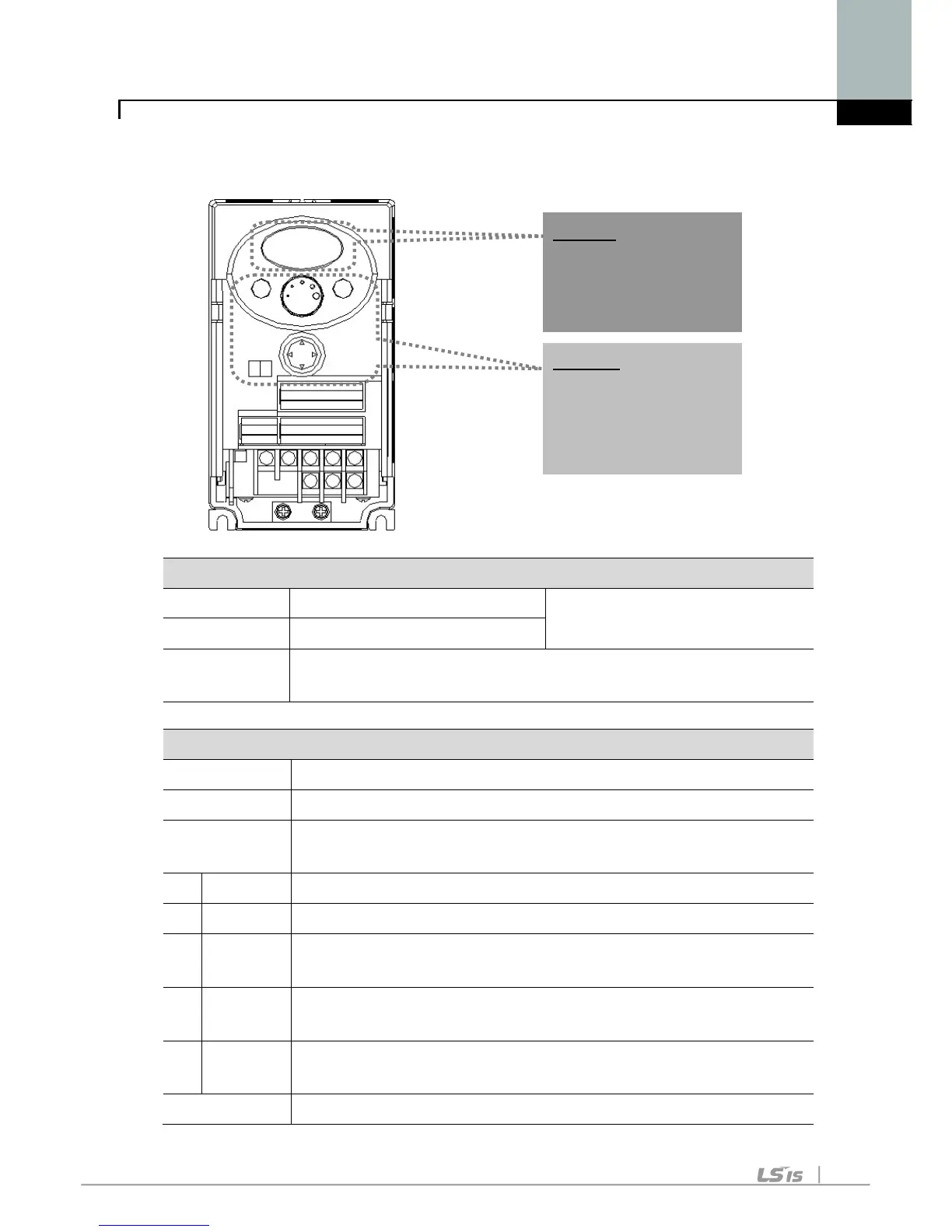

5.1 Keypad Features
Display
FWD Lit during forward run
Blinks when a fault occurs
REV Lit during reverse run
7-Segment
(LED Display)
Displays operation status and parameter information
Keys
RUN Used to give a run command
STOP/RST STOP : Stop the operation RST : Reset faults
4-WAY
BUTTON
Programming keys
(UP/Down/Left/Right arrow and Prog / Ent keys)

UP Used to scroll through codes or increase parameter value

Down Used to scroll through codes or decrease parameter value
 Left
Used to jump to other parameter groups or move a cursor to the
left to change the parameter value
 Right
Used to jump to other parameter groups or move cursor to the
right to change the parameter value

Prog /Ent
key
Used to set the parameter value or save the changed parameter
value
Potentiometer Used to change the value of run frequency
Display
 FWD/REV LED
 7-Segment LED
Buttons
 RUN
 STOP/RST
 4-WAY BUTTON
 Potentiometer
