LSIS 004iC5-1 User Manual

3. Wiring
3-4

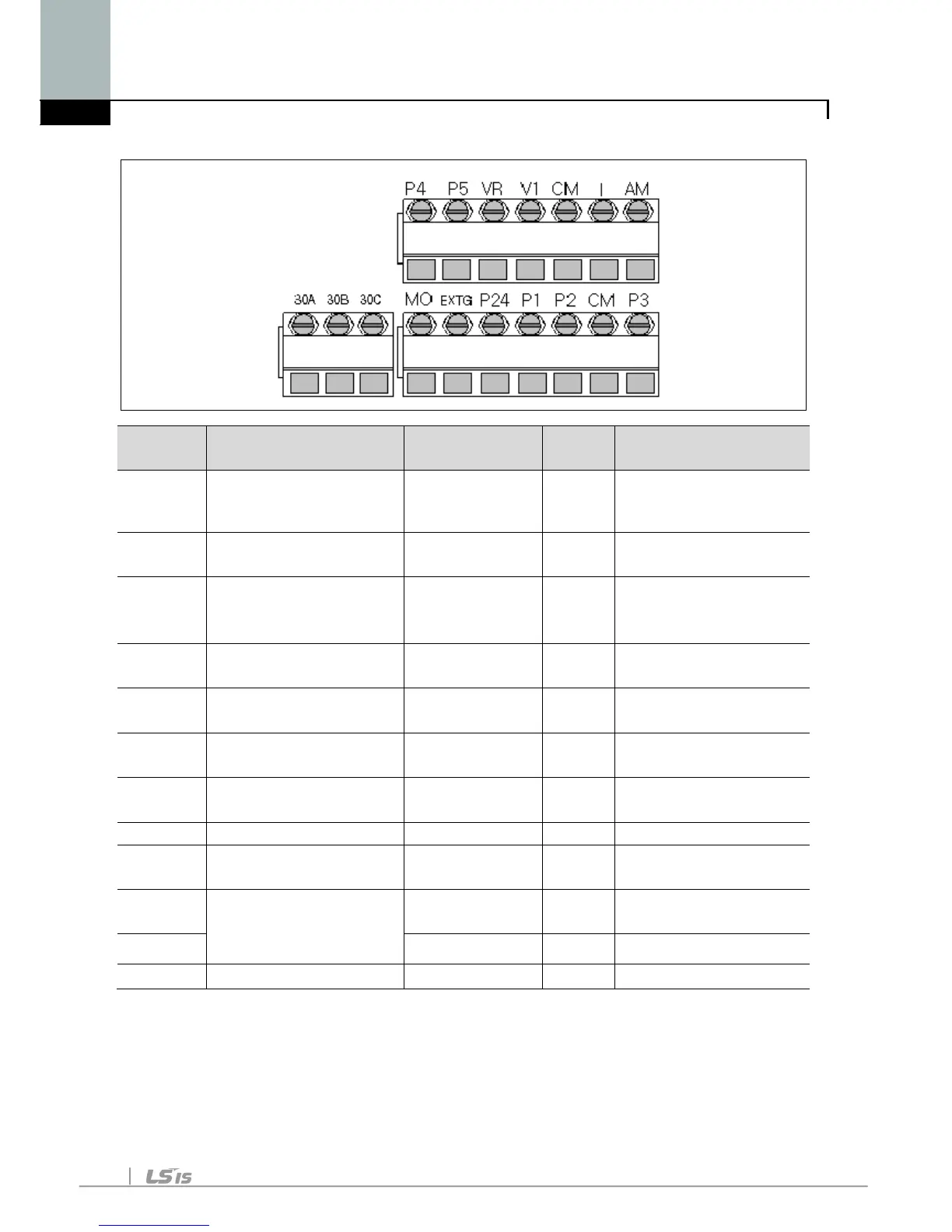

3.3 I/O terminal Block Specification
Terminal Terminal Description Wire size
Torque
(Nm)
Note
P1/P2/P3
/P4/P5
Multi-function input T/M
P1-P5
22 AWG, 0.3 mm
2
0.4 -
CM
Common Terminal for
P1-P5, AM, P24
22 AWG, 0.3 mm
2
0.4 -
VR
12V power supply for
external potentiometer
22 AWG, 0.3 mm
2
0.4
Max. output voltage: 12V
Max. output current: 20mA
Variable resistor: 10kohm
V1
0-10V Analog Voltage
input
22 AWG, 0.3 mm
2
0.4 Input voltage range: 0~12V
I
0-20mA Analog Current
input
22 AWG, 0.3 mm
2
0.4
Input current range:
0~20mA
AM
Multi-function Analog
output
22 AWG, 0.3 mm
2
0.4
Max. output voltage: 11[V]
Max. output current: 10mA
MO
Multi-function open
collector output T/M
20 AWG, 0.5 mm
2
0.4 Below DC26V,100mA
EXTG
Ground T/M for MO
20 AWG, 0.5 mm
2
0.4
-
P24
24V Power Supply for
P1-P5
20 AWG, 0.5 mm
2
0.4 Max. output current: 10mA
30A
Multi-function relay A/B
contact output
20 AWG, 0.5 mm
2
0.4
Below AC 250V, 0.25A
Below DC 30V, 2A
30B 20 AWG, 0.5 mm
2
0.4
-
30C
30A, B Common
20 AWG, 0.5 mm
2
0.4
-
☞Note: Tie the control wires more than 15cm away from the control terminals.
Otherwise, it interfere front cover reinstallation.
☞Note: When you use external power supply for multi-function input terminal
(P1~P5), apply voltage more than 12V to activate.
