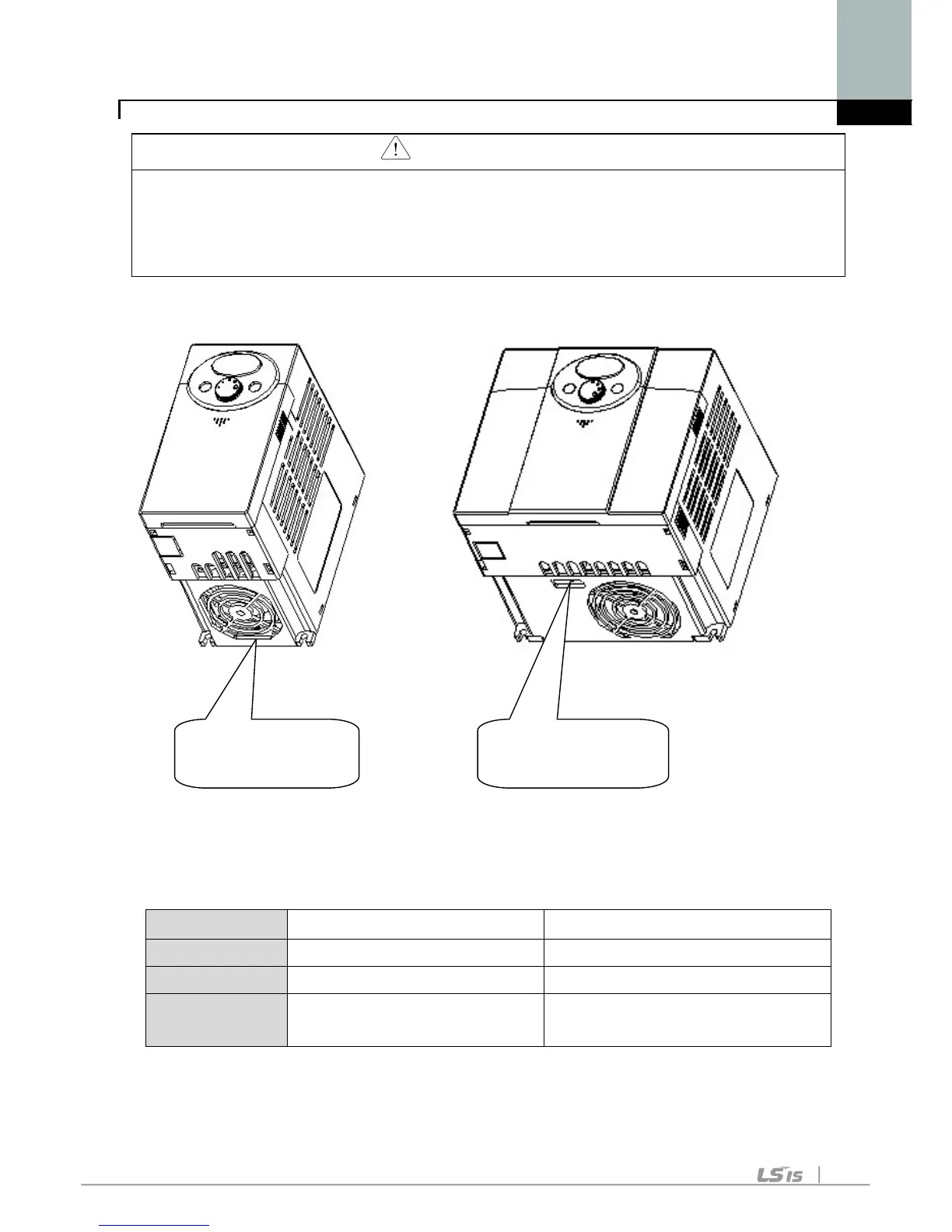

LSIS 004iC5-1 User Manual

3. Wiring
3-3
WARNING
 Use the Type 3 grounding method (Ground impedance: Below
100ohm).

Use the dedicated ground terminal to ground the inverter. Do not use
the screw in the case or chassis, etc for grounding.
☞ Note : Remove front and bottom cover before starting grounding.
☞ Caution : Follow the specifications below when grounding the inverter.
Model
004iC5, 008iC5 – 1,1F 015iC5, 022iC5 – 1,1F
Wire size 2mm
2
2mm
2
Lug
2mm
2
, 3φ 2mm
2
, 3φ
Ground
impedance
Below 100 ohm Below 100 ohm
Dedicated Ground
Terminal
Dedicated
Ground Terminal
