LSIS 004iC5-1 User Manual

5. Programming Keypad
5-5

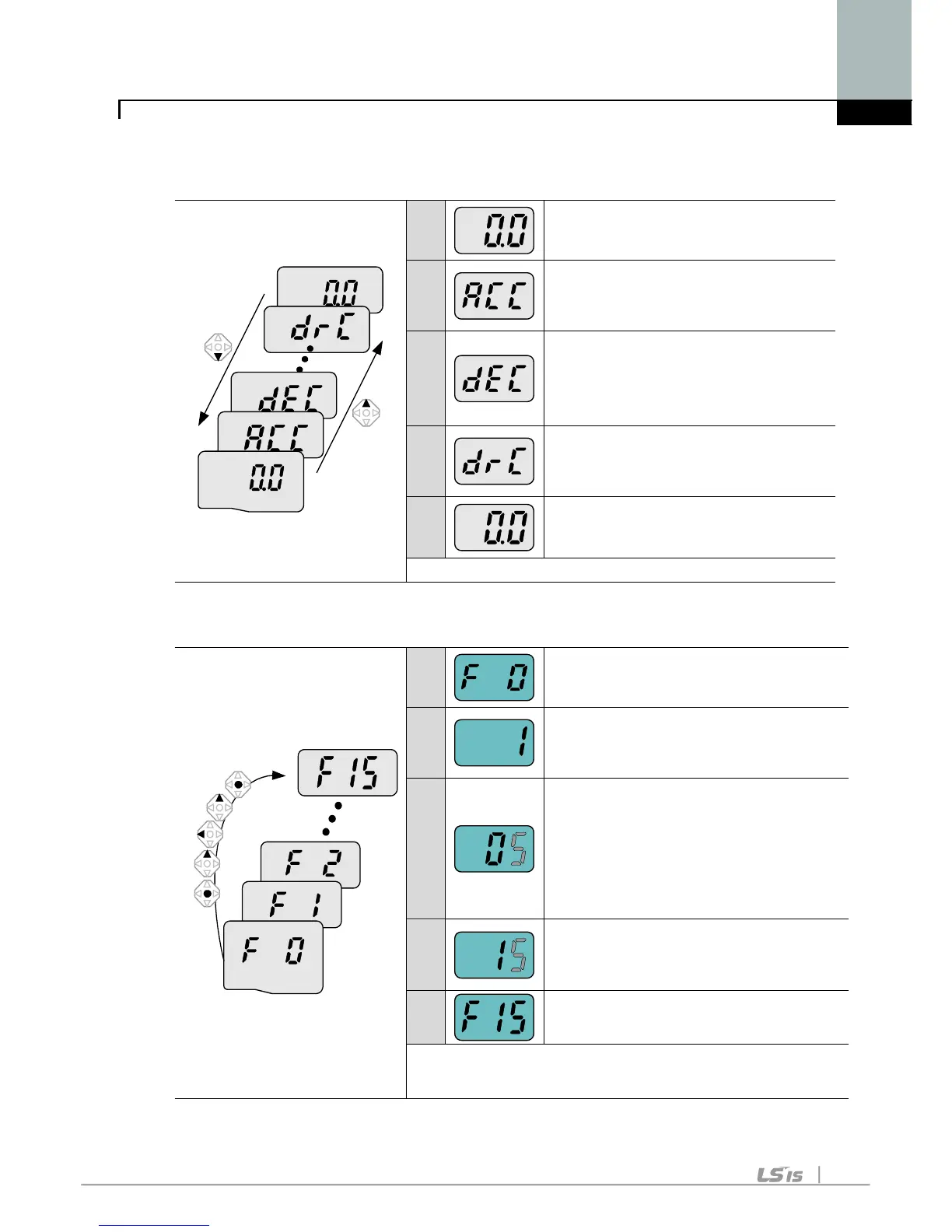

5.4 How to change the codes in a group
 Code change in Drive group
Drive group
1
-. In the 1
st
code in Drive group
“0.0”, press the Up () key once.
2
-. The 2
nd
code in Drive group
“ACC” is displayed.
-. Press the Up (

) key once.
3
-. The 3
rd
code “dEC” in Drive
group is displayed.
-. Keep pressing the Up () key
until the last code appears.
4
-. The last code in Drive group
“drC” is displayed.
-. Press the Up (

) key again.
5
-. Return to the first code of
Drive group.
♣
Use Down (

) key for the opposite order.
 Code change in Function group 1
When moving from the “F 0” to the “F 15” directly
Function
group 1
1
-. Press the Prog/Ent () key in “F 0.”
2
-
. 1 (the code number of F1) is
displayed. Use the Up (
) key
to set to 5.
3
-. “05” is displayed by pressing the
Left (
) key once to move the
cursor to the left. The numeral
having a cursor is displayed
brighter. In this case, 0 is active.
-. Use the Up (

) key to set to 1.
4
-. 15 is set.
-. Press the Prog / Ent (
) key
once.
5
-
. Moving to F 15 has been
complete.
♣
Function group 2 and I/O group are settable
with the same setting.
