LSIS Starvert iG5A Series User Manual

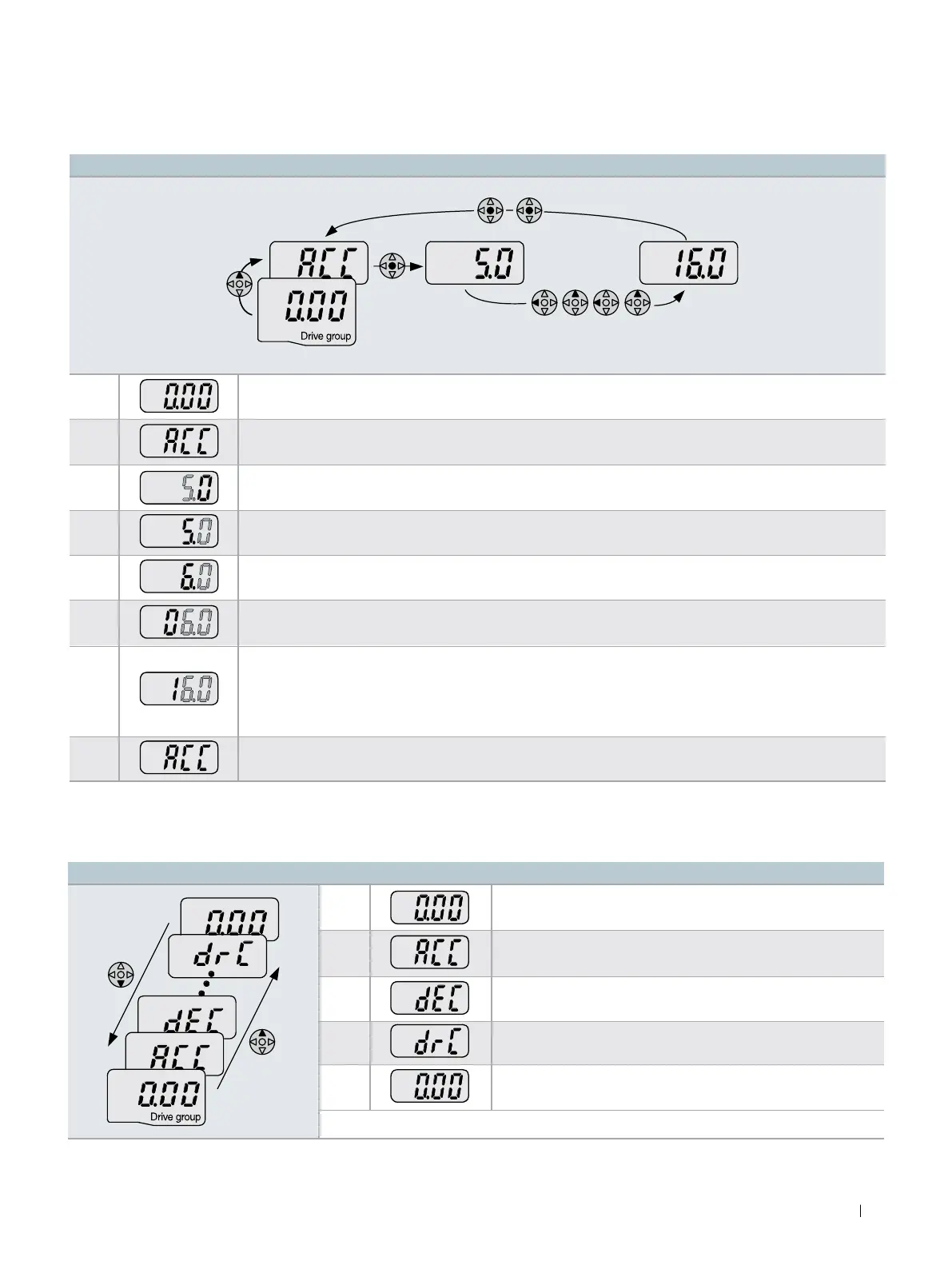

When changing ACC time from 5.0 sec to 16.0 sec
• In the first code “ 0.00 ” , press the Up (▲) key once to go to the second code.
• ACC [Accel time] is displayed.
• Press the Ent (●) key once.
• Preset value is 5.0, and the cursor is in the digit 0.
• Press the Left (◀) key once to move the cursor to the left.
• The digit 5 in 5.0 is active. Then press the Up (▲) key once.
• The value is increased to 6.0
• Press the Left (◀) key to move the cursor to the left.
• 0.60 is displayed. The first 0 in 0.60 is active.
• Press the Up (▲) key once.
• 16.0 is set.
• Press the Ent (●) key once.
• 16.0 is blinking.
• Press the Ent (●) key once again to return to the parameter name.
• ACC is displayed. Accel time is changed from 5.0 to 16.0 sec.
1
2
3
4
5
6
7
8
Code change in Drive group
• In the 1st code in Drive group “0.00”,
press the Up (▲) key once.
• The 2nd code in Drive group “ACC”is displayed.
• Press the Up (▲) key once.
• The 3rd code “dEC” in Drive group is displayed.
• Keep pressing the Up (▲) key until the last code appears.
• The last code in Drive group “drC” is displayed.
• Press the Up (▲) key again.
• Return to the first code of Drive group.
• Use Down (▼) key for the opposite order.
1
2
3
4
5
1)
1) Pressing the Left (◀)/Right (▶)/Up (▲)/Down (▼) key while a cursor is blinking will cancel the parameter value change.
Pressing the Ent (●) key in this status will enter the value into memory.
※ In step 7, pressing the Left (◀) or Right (▶) key while 16.0 is blinking will disable the setting.
